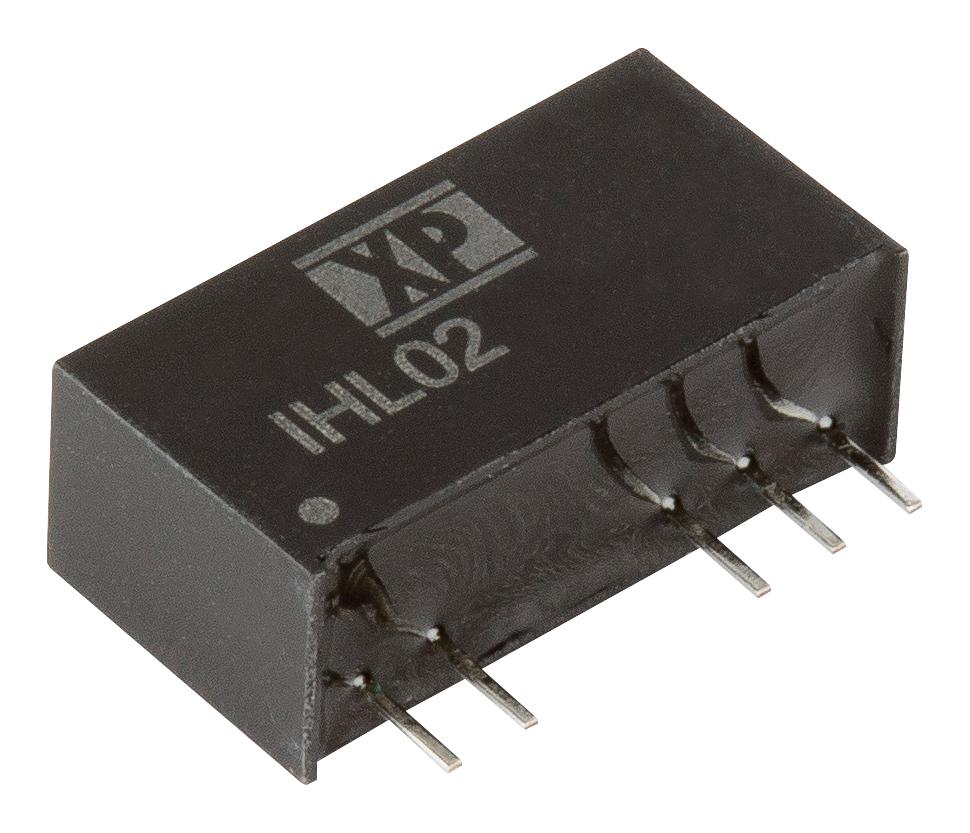

XP POWER IHL0212D12 DC-DC Converter
The IHL02 series is a 2W dual output DC-DC converter housed in a 7-pin SIP package. It provides bipolar outputs suitable for MOSFET and IGBT drives, featuring high isolation of 5200VDC and a maximum working voltage of 250VAC. The converter supports either single or dual outputs and operates reliably within a temperature range of -40°C to 95°C, delivering full load at 65°C ambient. It includes continuous short circuit protection, making it ideal for power management and industrial applications.
XP POWER IHL0212D12 DC-DC Converter Specifications:
- Power: 2 Watts
- Isolation Voltage: 5200VDC (functional)
- Working Voltage: rated for 250VAC and 400VDC
- Input Voltage Range: 13.5V to 165VAC/DC
- Output Voltage: 3.3V, 5V, 12V, 15V, 18V, 24V (various models)
- Output Current: up to 72V nominal input and corresponding outputs
- Efficiency: Approximately 80%
- Operating Temperature: -40°C to +95°C
- Full load at 65°C ambient
- MTBF: 3.3 million hours
- Physical Dimensions: 0.77 x 0.28 x 0.39 inches (19.5 x 7.2 x 10.0 mm)
- Package: SIP7
- Isolation Resistance: 10^9 Ω
- Switching Frequency: 50-100 kHz
- Protection: Continuous short circuit auto recovery
- Certifications: CE, UKCA
- Case Material: Non-conductive UL94V-0 plastic
- Potting Material: Epoxy
- Solder Process: 260°C for maximum 10 seconds
Buy the XP Power IHL0212D12 – Reliable DC-DC Converter for Industrial Applications
Purchase the XP Power IHL0212D12 series DC-DC converter online today and benefit from high isolation of 5200VDC, bipolar outputs, and a compact SIP7 package. With 2W power output, broad temperature range of -40°C to 95°C, and full load capacity at 65°C ambient, this converter is perfect for industrial, power, and electronic applications. Featuring continuous short circuit protection, high efficiency, and UL94V-0 casing, it guarantees dependable performance in demanding environments. Order now to secure reliable power solutions for your projects quickly and conveniently.
Order your XP Power IHL0212D12 series high-isolation DC-DC converter today and ensure your industrial power management projects are reliable and efficient.
Frequently Asked Questions
Where can I buy XP POWER IHL0212D12?
You can click on the BUY or RFQ button to purchase IHL0212D12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part IHL0212D12?
You can download the IHL0212D12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of IHL0212D12?
XP POWER
