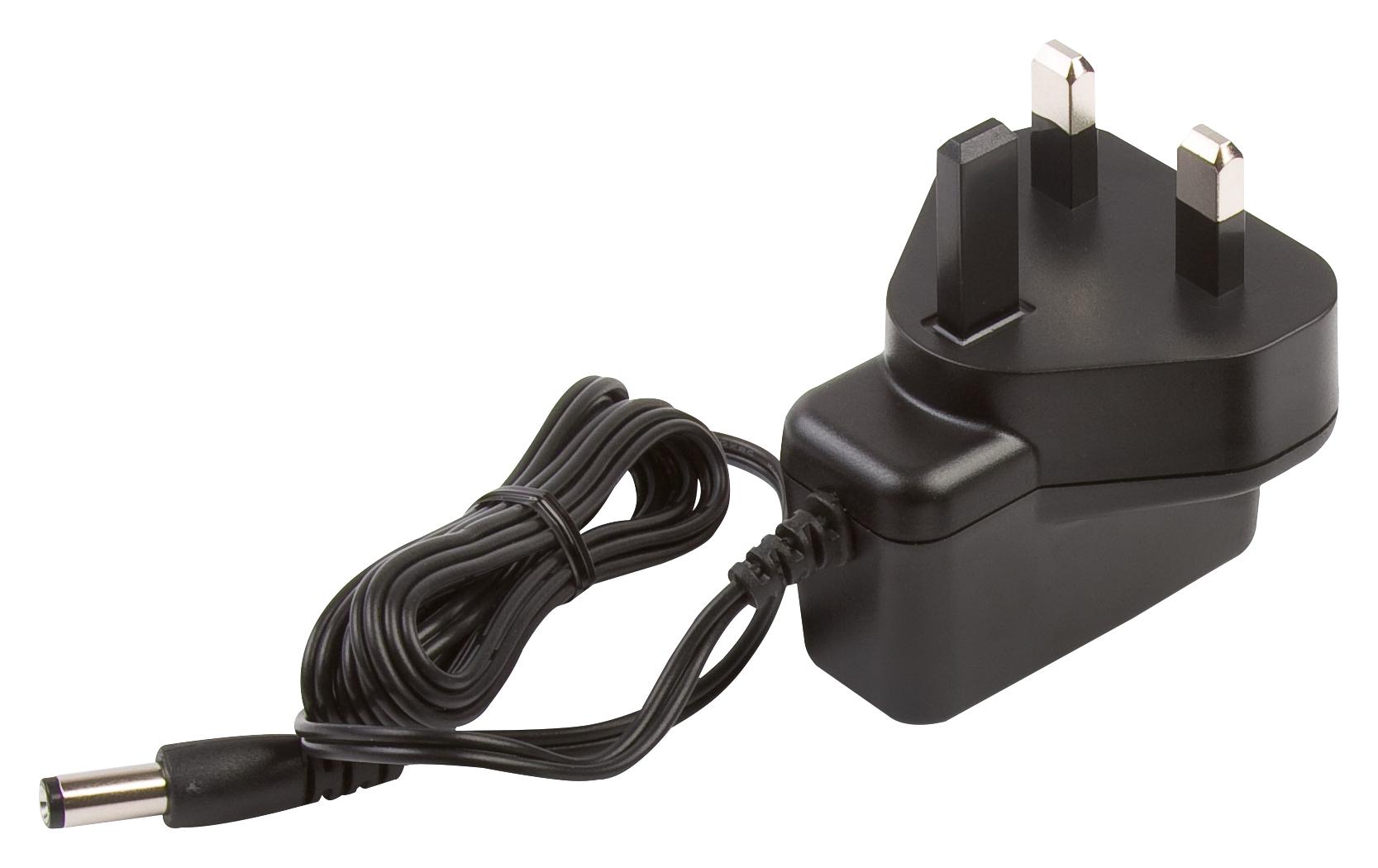

XP POWER VEL24US240UKJA Industrial Power Adapter
The VEL24 series wall plug adapters meet the latest Energy Efficiency Level VI standards, offering high active mode efficiency and minimal no-load power consumption. They come with fixed mains connectors suitable for a wide range of cost-sensitive applications while delivering industry-leading performance. Features include universal input voltage, Class II construction for safety, and output voltages ranging from 12V to 24V. The adapters utilize a 5.5mm x 2.1mm x 12mm DC jack connector and operate within a temperature range of 0°C to 60°C. They comply with UL/cUL 60950-1, IEC 60950-1, TUV EN 60950-1, and CCC safety standards. Dimensions are 90mm x 49.5mm x 50mm. Suitable for industrial and consumer electronic applications.
XP POWER VEL24US240UKJA Industrial Power Adapter Specifications:
- Input Voltage: 90-264 VAC
- Input Frequency: 50-63 Hz
- Efficiency: 85% at 25%, 50%, 75% load
- Power Factor: Class A compliance
- Output Voltage: 12V to 24V (models vary)
- Output Current: up to 2000 mA
- Total Regulation: 5%
- Ripple & Noise: within specified limits
- Operating Temperature: 0°C to 60°C
- Storage Temperature: -40°C to +85°C
- Isolation Voltage: 3000 VAC input to output
- Switching Frequency: 24-70 kHz
- Dimensions: approx. 90mm x 49.5mm x 50mm
- Weight: 130g
- Safety Standards: UL, cUL, IEC, TUV, CCC
- Environmental Compliance: Energy Level VI
Buy the XP Power VEL24U2013 Reliable Power Supplies for Industrial Applications
Purchase the XP Power VEL24 series power adapters online today and secure reliable, efficient, and safe power solutions for industrial, commercial, or consumer electronic applications. These versatile adapters deliver 12V to 24V output, ensuring optimal performance with minimum no-load power consumption. With certifications including UL, cUL, IEC, TUV, and CCC, they meet global safety standards. Compact and robust, these adapters are ideal for cost-sensitive projects that require dependable power with universal AC input, making them the ideal choice for a wide range of applications.
Order your XP Power VEL24 series power supply today and ensure your projects benefit from high efficiency, compact design, and industry-leading safety standards.
