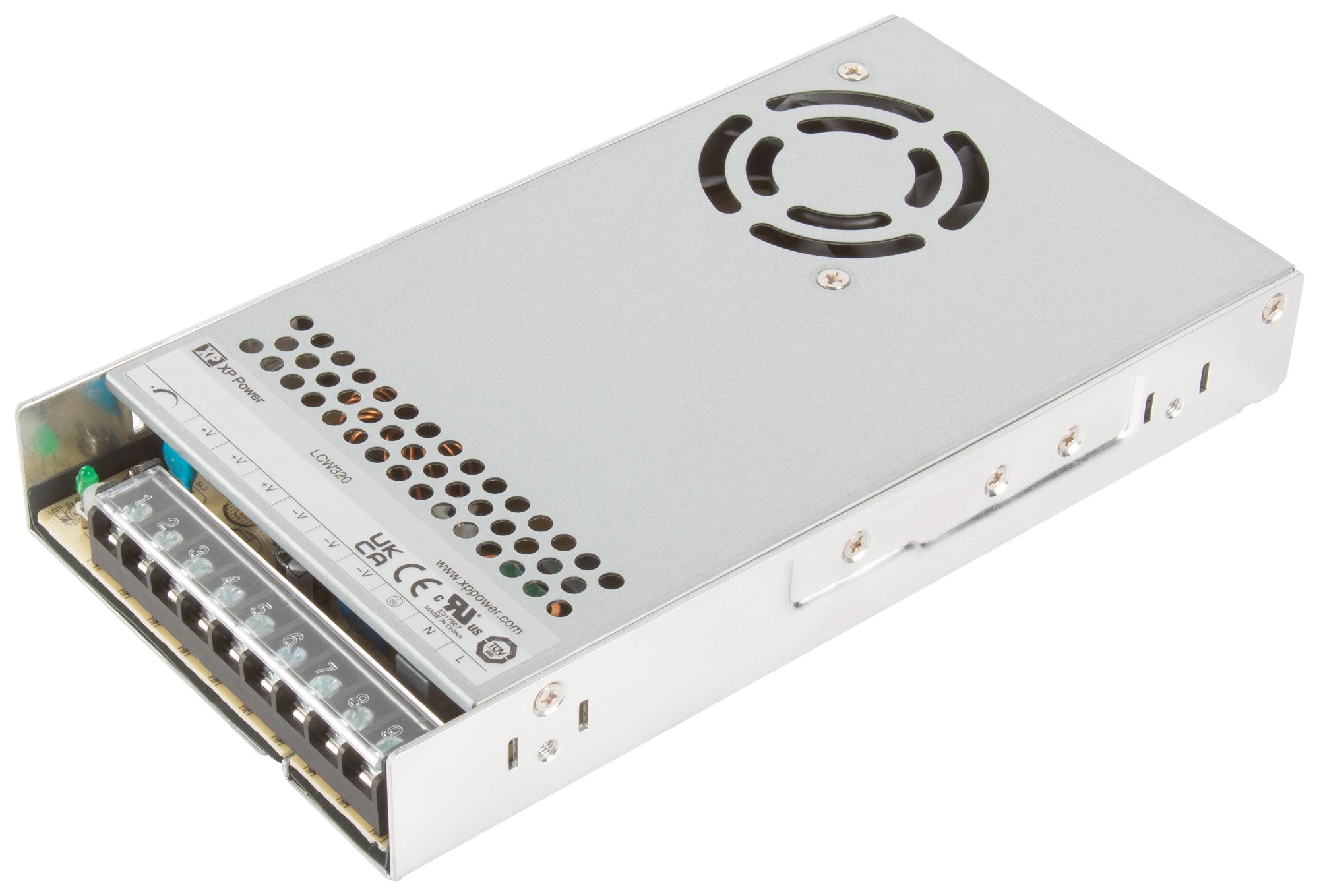

XP POWER LCW320PS15 Industrial Power Supply
The LCW320 series regulated, fan-cooled AC to DC power supplies are designed to provide a cost-effective solution for industrial electronics and technology applications. They feature a wide input voltage range of 85-305VAC, active power factor correction (PFC), adjustable output voltage, and status indicators such as a power 'ON' LED. These power supplies offer low standby power consumption and comprehensive protection features including short circuit, overcurrent, overload, and overvoltage protections. Suitable for various applications such as auxiliary power sources, security systems, lighting control, smart home and office systems, as well as ticketing and vending equipment. Certified by UL, EN, CE, and UKCA, the 320W fan-cooled unit includes an integrated connector cover, conforms to Class B emissions standards, and has an efficiency of 89%. Additional features include output voltage trimming, switching frequency of 65kHz, optional conformal coating, and operation across temperatures from -30°C to +70°C. The power supply is housed in an aluminum chassis with a vented galvanized steel cover (AL1100 and SGCC), measures 8.46 inches x 4.53 inches x 1.18 inches (215mm x 115mm x 30mm), and comes with a 3-year warranty.
XP POWER LCW320PS15 Industrial Power Supply Specifications:
- Input Voltage Range: 85-305VAC
- Output Power: 320W
- Output Voltage Adjustment: Yes
- Efficiency: up to 89%
- Dimensions: 8.46 inches x 4.53 inches x 1.18 inches (215mm x 115mm x 30mm)
- Operating Temperature: -30°C to +70°C
- Protection: Short circuit, overvoltage, overload, overcurrent
- Certification: UL, EN, CE, UKCA
- Cooling: Fan-cooled with automatic operation
- Switching Frequency: 65kHz
- Housing: Aluminum chassis, galvanized steel cover
- Optional Conformal Coating: Yes
- Emissions Standards: Class B
- Rated Efficiency: 89%
Buy the Power Solutions Series AC-DC Power Supplies: LCW320PS15
Purchase the Power Solutions Series AC-DC Power Supply LCW320PS15 online today. Engineered for industrial use, it features wide input voltage, active PFC, adjustable output, and comprehensive protections. Compact and durable with an aluminum chassis and galvanized steel cover, it supports temperatures from -30°C to +70°C. Certified for safety and emissions standards including UL, EN, CE, and UKCA, this power supply boasts 89% efficiency and a 3-year warranty. Perfect for automation, security systems, lighting, and vending applications, ensuring reliable power in demanding environments.
Get Power Solutions Series AC-DC Power Supplies LCW320PS15 today—built for industrial reliability, efficiency, and long-lasting performance.
Frequently Asked Questions
Where can I buy XP POWER LCW320PS15?
You can click on the BUY or RFQ button to purchase LCW320PS15 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part LCW320PS15?
You can download the LCW320PS15 datasheet or visit the XP POWER website for support.
Who is the manufacturer of LCW320PS15?
XP POWER
