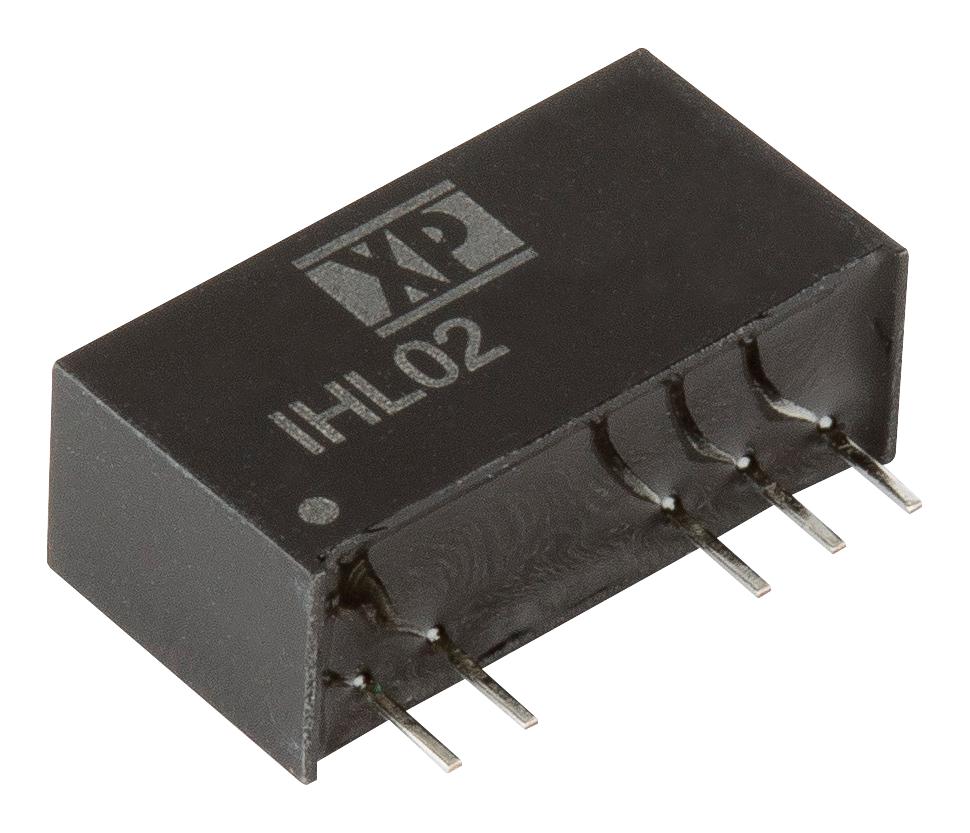

XP POWER IHL0215S05 Industrial Power Converter
The IHL02 series is a compact 2W DC-DC converter in a SIP7 package, suitable for MOSFET and IGBT drives with bipolar outputs. It provides high isolation of 5200VDC and a working voltage of 250VAC, making it ideal for industrial power management. The device operates from -40°C to 95°C, supporting full load at 65°C ambient temperature. It features continuous short circuit protection, high transient immunity at 20 kV/μs, and complies with safety standards. Designed for reliable, high-voltage isolation in industrial applications, it offers versatility in single and dual output configurations.
XP POWER IHL0215S05 Industrial Power Converter Specifications:
- Power: 2 Watts
- Package: SIP7
- Isolation Voltage: 5200 VDC (functional)
- Working Voltage: 250 VAC
- Isolation Resistance: 10 GΩ
- Isolation Capacitance: 7 pF
- Input Voltage Range: 13.5V to 165V
- Output Voltage: 3.3V to 30V (model-dependent)
- Output Current: Up to 72V nominal, varies with model
- Efficiency: Up to 80%
- Operation Temperature Range: -40°C to +95°C
- Full load operation at 65°C ambient
- MTBF: 3.3 million hours
- Surge Voltage: 20 IGB nominal
- Switching Frequency: 50-100 kHz
- Case Material: Non-conductive plastic (UL94V-0)
- Dimensions: 0.77 x 0.28 x 0.39 inch (19.5 x 7.2 x 10.0 mm)
- Solder Process: 260°C, 10s max
- Safety Standards: CE, UKCA
- CMTI: 20 kV/μs
Buy the XP Power IHL0215S05 – Reliable Industrial Power Converter for Power Management
Purchase the XP Power IHL0215S05 today for high-voltage isolation, reliable performance, and broad temperature operation. This industrial-grade converter is perfect for power management and motor drive applications. Its bipolar outputs, high efficiency, and compact SIP7 package ensure seamless integration into your system. Built with safety and durability in mind, it features 5200VDC isolation, short circuit protection, and operates from -40°C to 95°C. Order now to enhance your power systems with trusted quality and support.
Get XP Power IHL0215S05 today—built for precision, high isolation, and long-lasting durability in industrial power systems.
Frequently Asked Questions
Where can I buy XP POWER IHL0215S05?
You can click on the BUY or RFQ button to purchase IHL0215S05 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part IHL0215S05?
You can download the IHL0215S05 datasheet or visit the XP POWER website for support.
Who is the manufacturer of IHL0215S05?
XP POWER
