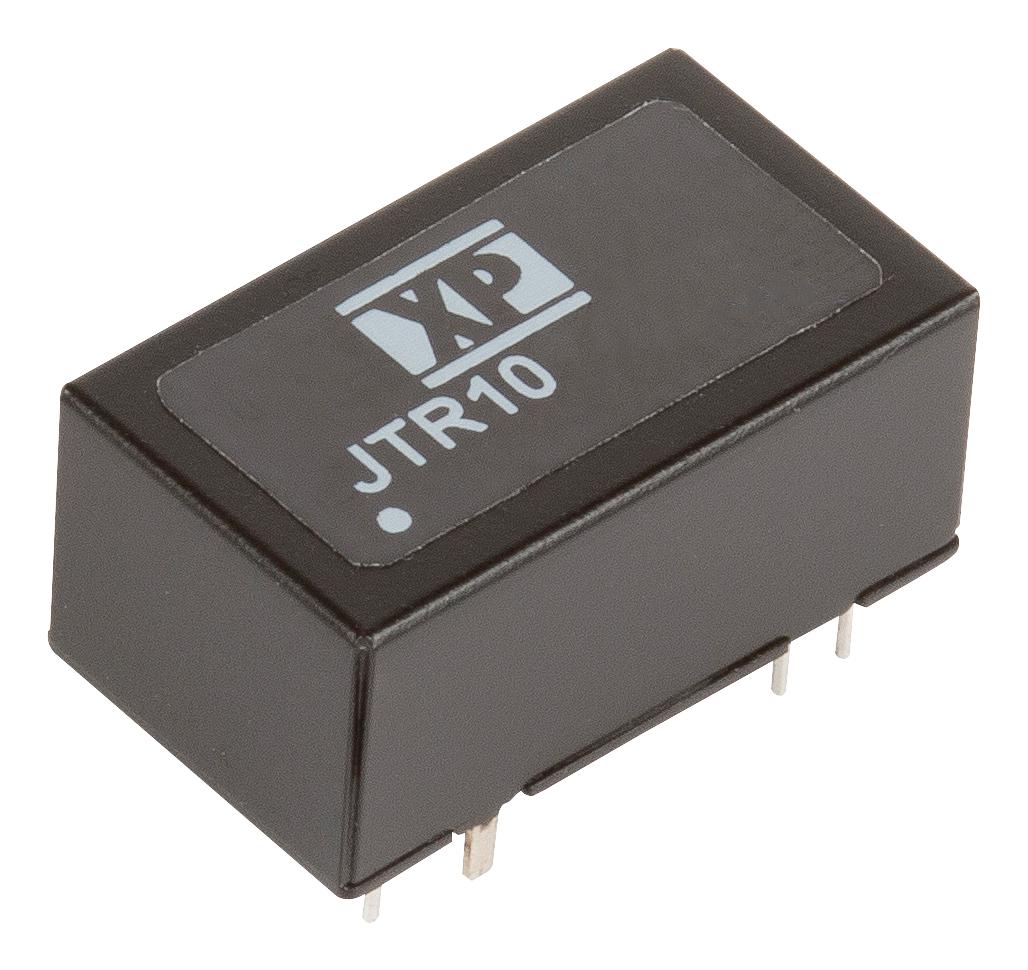

XP POWER JTR1048S12 DC-DC Converter
The JTR10 series are 10W DC-DC power supplies housed in a DIP16 package. Featuring an ultra-wide 4:1 input voltage range, they provide 1500VDC isolation and meet ITE safety standards. Operating efficiently from -40°C to +88°C, they deliver full power up to +70°C and boast a high power density in a compact design measuring 0.94 inches by 0.54 inches by 0.41 inches. These converters are ideal for industrial, automation, and electronic applications requiring reliable, high-performance power regulation with certified safety and excellent thermal characteristics.
XP POWER JTR1048S12 DC-DC Converter Specifications:
- Input Voltage Range: 9.0V to 36V or 18V to 75VDC with wide 4:1 input ratio
- Output Power: 10 Watts
- Output Voltage: Adjustable up to +10% for single output models, various fixed voltages available
- Output Voltage Tolerance: ±10% at full load
- Isolation: 1500VDC between input and output
- Efficiency: Up to 87%
- Operating Temperature: -40°C to +88°C, full power up to +70°C
- Dimensions: 0.94 inches x 0.54 inches x 0.41 inches (23.8mm x 13.7mm x 10.3mm)
- Safety Certifications: IEC/UL/cUL 62368-1 (pending), EN55032 class A
- Surge and Input Protection: Internal Pi filter, undervoltage lockout at 8.8V/16V
- MTBF: Over 500,000 hours at +25°C
- Mechanical Case Material: Black coated copper with UL94V-0 plastic base
- Pin Material: Solder coated brass
- Water Wash: Use deionized water, dry thoroughly
- Switching Frequency: 370 kHz
- Power Density: 48 W/in³
- Case Tolerance & Dimensions: Precise to ±0.01 inches, pin diameter 0.02 inches
Buy the XP Power Series JTR Series DC-DC Converter: JTR1048S12
Purchase the XP Power Series JTR10DC-DC Converter online today and experience reliable, high-efficiency power regulation for industrial, automation, and electronic applications. This compact 10W converter offers ultra-wide input voltage range, 1500VDC isolation, and certified safety compliance, ensuring optimal performance across temperatures from -40°C to +88°C. Its high power density and robust thermal design make it ideal for demanding environments, providing consistent power output and long MTBF. Order now to enhance your project's reliability with this premium power solution.
Order your XP Power Series JTR10DC-DC Converter today and give your projects the dependable quality they deserve.
