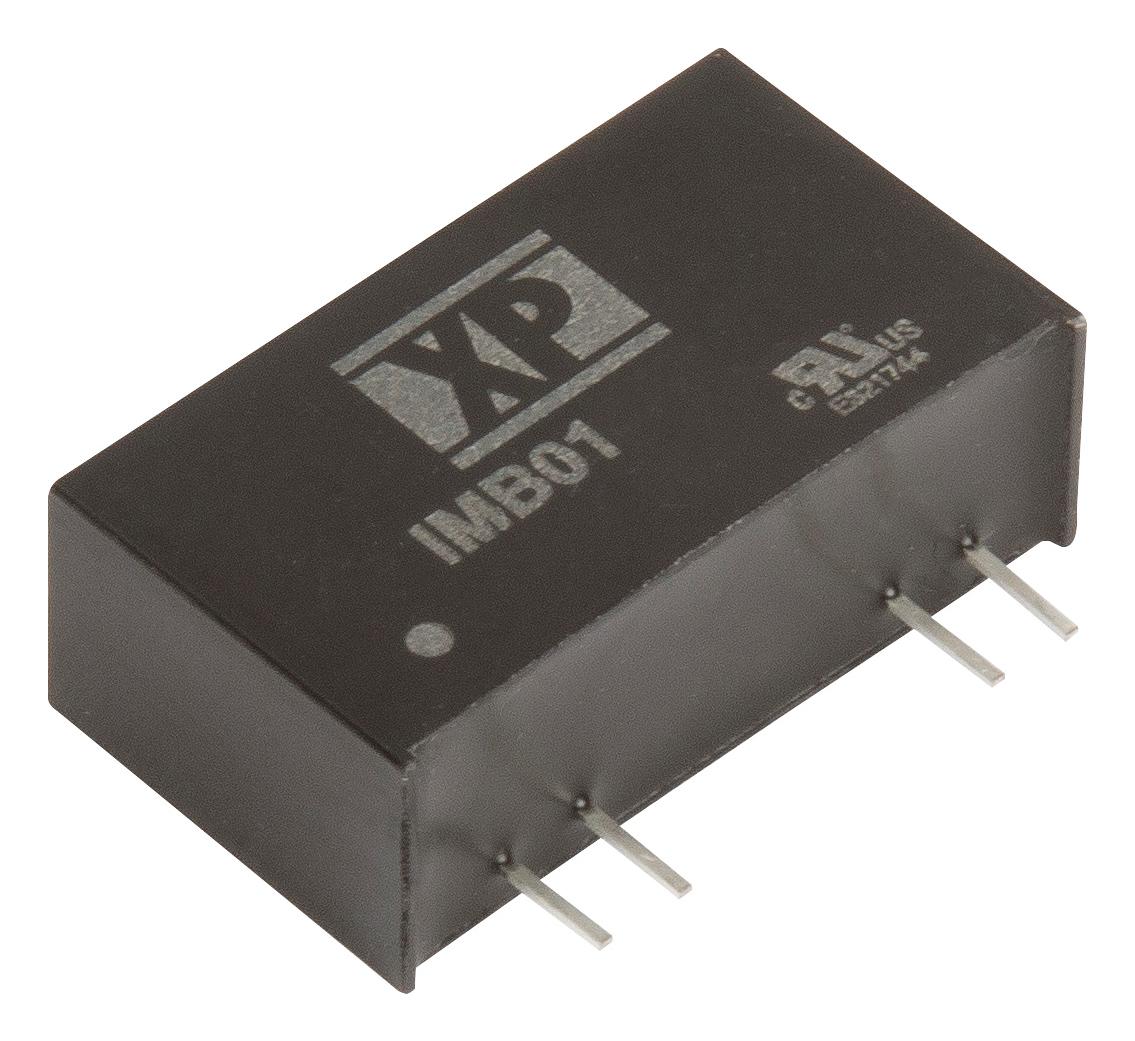

XP POWER IMB0112S05 Medical Power Converter
The IMBO1 series from XP Power offers a compact 1-watt medical power converter in a SIP7 package, designed for sensitive medical applications. It features 2 x MOPP isolation, ultra-low leakage current of 2μA, and full load operation up to +85°C. Certified for worldwide medical standards, it provides reinforced insulation, short circuit protection, and a wide input voltage range of 10.8V to 26.4V. Ideal for medical devices requiring reliable, safe power supply solutions with high efficiency and minimal leakage currents.
XP POWER IMB0112S05 Medical Power Converter Specifications:
- Input Voltage Range: 10.8V to 26.4V
- Output Voltage: 5V, 12V, 15V models
- Output Current: up to 200mA
- Input Surge Voltage: 18V to 30V
- Isolation: 4000 VAC for 60 seconds, 2 x MOPP
- Leakage Current: 2μA at 1.5kVDC
- Operating Temperature: -40°C to +105°C, full load at +85°C
- Efficiency: approximately 80%
- MTBF: 43 million hours
- Case Material: UL94V-0 rated black plastic
- Dimensions: 0.87 x 0.49 x 0.30 inches (22.0 x 12.5 x 7.5 mm)
- Switching Frequency: 12-28 kHz, burst mode at light load
- Certifications: Medical approvals worldwide
- Protection: Short circuit with auto recovery
Buy the XP Power IMBO1 – Reliable Medical Power Converter for Industrial Applications
Order the XP Power IMBO1 series online today for a high-quality medical power converter designed to ensure safety and reliability. Featuring reinforced insulation of 2 x MOPP, ultra-low leakage current of 2μA, and wide input voltage capabilities, this compact device is ideal for sensitive medical equipment. With full load operation up to +85°C, it meets international medical standards, providing peace of mind. Easy to integrate in various medical applications, it ensures consistent power delivery, durability, and peace of mind for healthcare and industrial environments.
Get XP Power IMBO1 today—built for medical device safety, low leakage, and reliable power supply in industrial applications.
Frequently Asked Questions
Where can I buy XP POWER IMB0112S05?
You can click on the BUY or RFQ button to purchase IMB0112S05 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part IMB0112S05?
You can download the IMB0112S05 datasheet or visit the XP POWER website for support.
Who is the manufacturer of IMB0112S05?
XP POWER
