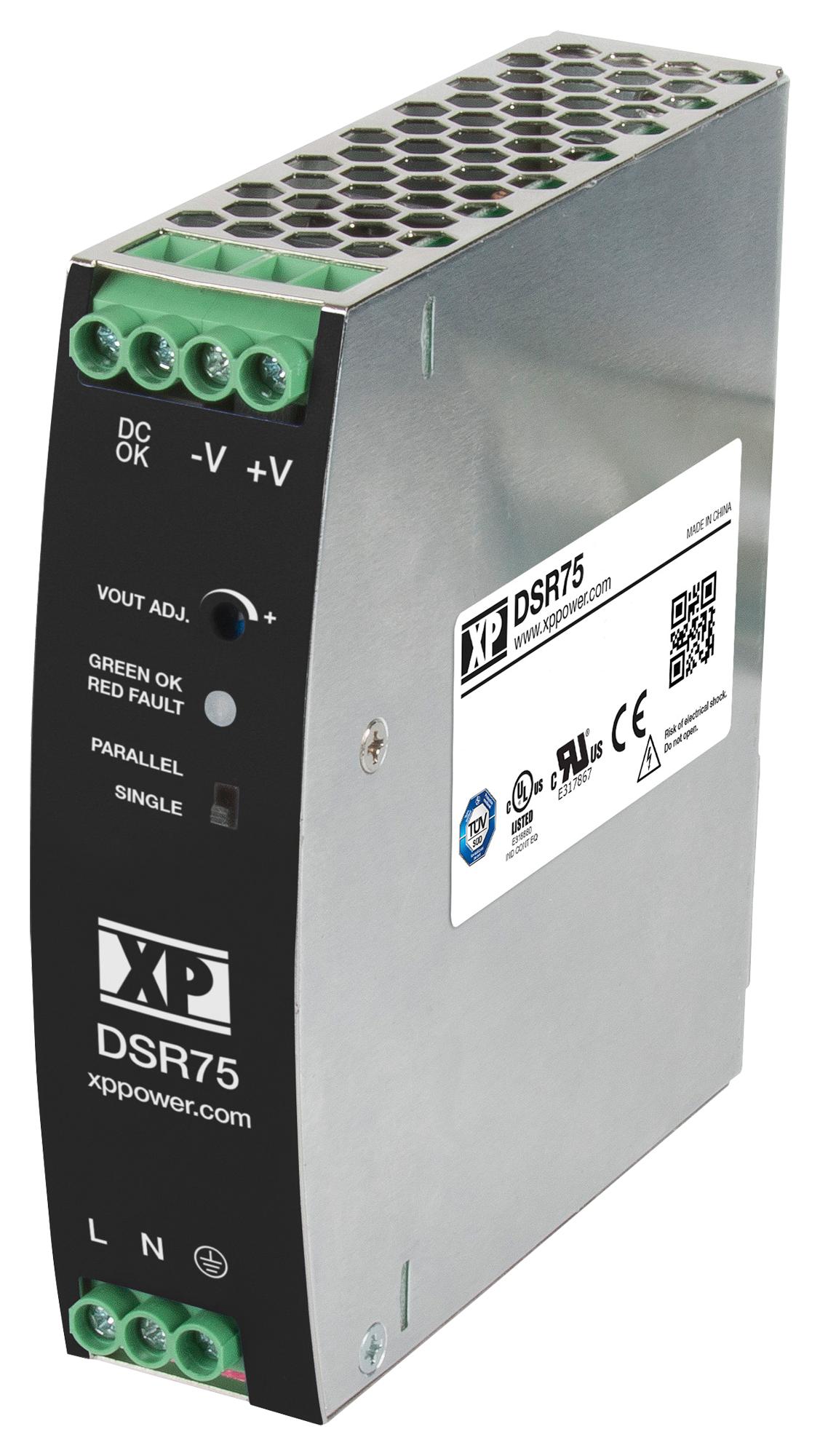

XP POWER DSR75PS12 Industrial Power Supply
This power supply features an ultra-slim design with a thickness of 32mm, offering high efficiency up to 91%. It can handle 150% of its peak load for 3 seconds and operates reliably across a wide temperature range from -25°C to +70°C. The unit can deliver full load at 60°C and supports input voltages from 85 to 264 VAC. It includes a volt-free contact for DC OK signaling and offers selectable parallel operation for redundancy or increased capacity.
XP POWER DSR75PS12 Industrial Power Supply Specifications:
- Input Voltage: 85 to 264 VAC
- Input Frequency: 47-63 Hz
- Efficiency: Up to 91%
- Output Power: 75W
- Output Voltage Options: 12V, 24V, 48V
- Output Current: 6.3A, 3.2A, 1.6A respectively
- Peak Load Capability: 150% for 3 seconds
- Operating Temperature: -25°C to +70°C
- Full Load at 60°C
- Dimensions: 1.26 x 4.88 x 4.69 inches (32.0 x 124.0 x 119.0 mm)
- Weight: 1.06 lbs (480 g)
- Protection: Overload, Short Circuit, Overvoltage, Thermal
- DC OK Signal: Volt-free contact rated at 60 VDC/0.3 A
- Isolation: Input to Output - 3000 VAC
- Cooling: Natural convection
- Certifications: UL, EN55032, EN61000-3-2
Buy the XP Power DSR75 Series – Reliable AC-DC Power Supply for Industrial Applications
Get the high-efficiency XP Power DSR75 series power supply online today. With ultra-slim design, wide temperature range, and 91% efficiency, it guarantees reliable operation in demanding environments. Suitable for applications requiring 75W output with optional parallel operation, it features a volt-free DC OK contact for easy monitoring. The unit supports input voltages from 85 to 264 VAC, handles peak loads of 150% for 3 seconds, and operates reliably up to +70°C. Trust XP Power for your industrial power demands.
Order your XP Power Series DSR75 power supply today and ensure your industrial projects have the dependable voltage and efficiency they need.
