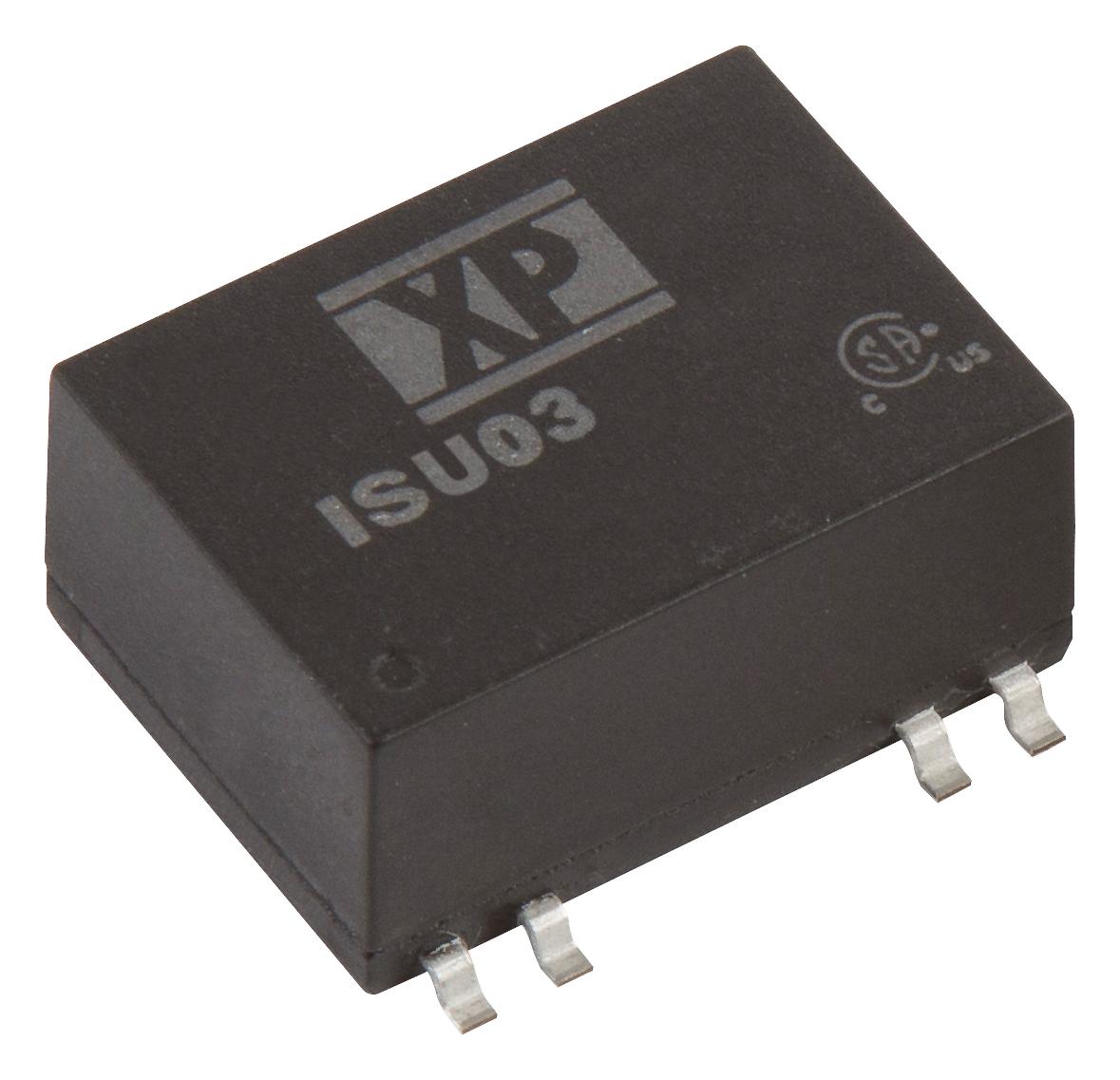

XP POWER ISU0324S05 DC-DC Converter
The ISU03 series is a 3W DC-DC converter available in a compact surface-mount (SMD) package. It features regulated single and dual outputs, a wide 4:1 input voltage range, 1500VDC isolation, and an operating temperature range from -40°C to 95°C. The converter complies with Class A EN55032 conducted EMC emissions and safety standards including UL/cUL 62368-1 and IEC 62368-1. It includes a remote on/off function ideal for power management applications and measures 0.75 inches by 0.67 inches by 0.34 inches (19mm x 17mm x 8.7mm). Suitable for medical, industrial, and communication equipment requiring reliable power solutions.
XP POWER ISU0324S05 DC-DC Converter Specifications:
- Power: 3 Watt
- Input Voltage Range: 9.0V to 36V (nominal 12V), 18V to 75V (nominal 48V)
- Output Voltage: 5V, 12V, 15V, 24V options
- Output Power: 3W
- Isolation: 1500 VDC
- Operating Temperature: -40°C to +95°C
- Dimensions: 0.75 x 0.67 x 0.34 inches (19.0 x 17.0 x 8.7 mm)
- Efficiency: up to 83%
- Protection: Continuous short circuit with auto recovery
- Safety: UL/cUL 62368-1, IEC 62368-1 compliance
- EMC: Conducted EN55032 Class A
- Isolation Resistance: 10 MΩ at 500 VDC
- Isolation Capacitance: 500 pF
- Switching Frequency: 100 kHz
- Weight: Approx. 1 lb or 0.46 kg
- Cooling: Natural convection
- Enclosure: UL 94V-0 rated non-conductive black plastic
Buy the XP Power ISU0324S05 – Reliable High-Performance DC-DC Converter for Industrial Applications
Purchase the XP Power DC-DC Converter online today and enhance your power management setup with a durable, efficient, and compact solution. Designed for industrial, medical, and communication applications, this converter offers regulated outputs, wide input range, and high isolation. Its compact surface-mount package makes installation easy and space-saving. Built with safety and reliability in mind, it meets all relevant standards including UL/cUL 62368-1. Order now to benefit from fast shipping, straightforward online procurement, and a product engineered for demanding environments.
Buy XP Power ISU0324S05 now and experience unmatched reliability and performance in your industrial or communication power systems.
Frequently Asked Questions
Where can I buy XP POWER ISU0324S05?
You can click on the BUY or RFQ button to purchase ISU0324S05 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part ISU0324S05?
You can download the ISU0324S05 datasheet or visit the XP POWER website for support.
Who is the manufacturer of ISU0324S05?
XP POWER
