XP POWER IMM0112S12 medical-grade DC-DC converter
The IMM01 series is a 1W DC-DC converter available in a 7-pin SIP package, suitable for medical and industrial applications. Featuring both single and dual outputs, it meets worldwide medical safety standards including UL, IEC60601-1, and CSA. It offers extremely low patient leakage current of just 2 microamperes, with continuous short circuit protection and auto recovery. Capable of operating from -20°C to 100°C, it maintains full load at 60°C ambient and provides 1500VAC isolation (1 MOPP). Compact and reliable, it is ideal for power management and medical device integration.
XP POWER IMM0112S12 medical-grade DC-DC converter Specifications:
- Power: 1 Watt
- Input Voltage Range: 3V3, 5V, 12V, 15V, 45-90V, 9.0-18.0V, 212V, 215V
- Output Voltage Options: 3.3V, 5V, 12V, 15V, 2.3V, 2.5V, 3.3V, 5V, 9V, 12V, 15V, 16V, 25V, 30V
- Output Current: Up to 337 mA, varies per model
- Dimensions: 0.76 x 0.36 x 0.44 inches (19.5 x 9.2 x 11.1 mm)
- Operating Temperature Range: -20°C to +100°C
- Isolation Voltage: 1500 VAC (1 MOPP)
- Patient Leakage Current: 2 microamperes
- Efficiency: Typical 78%
- MTBF: 1 million hours
- Protection: Continuous fold-back short circuit, auto recovery
- Standards: UL, IEC60601-1, CSA, EN60601-1, CB
- Weight: Approximately 3.6 grams
- Isolation Resistance: 10^8 Ohms
- Maximum Operating Altitude: 3048 meters

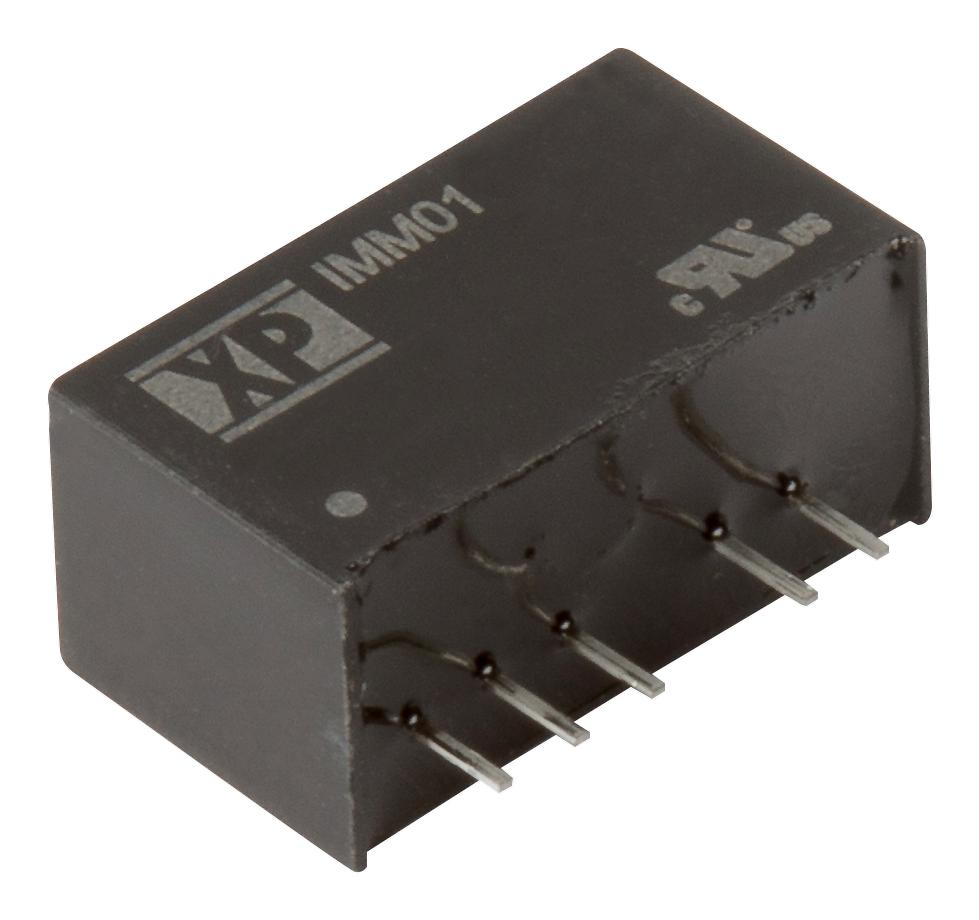

Buy the XP Power Series IMMO1 DC-DC Converter: IMM0112S12
Purchase the XP Power IMM0112S12 now for a compact, reliable 1W medical-grade DC-DC converter featuring 1500VAC isolation and ultra-low patient leakage. Its wide temperature range from -20°C to 100°C ensures robust performance in harsh environments. With full load operation at 60°C ambient, it guarantees consistent power delivery. Ideal for medical and industrial applications, this converter meets all major safety standards, including UL and IEC60601, providing excellent protection, high efficiency, and long MTBF for mission-critical systems.
Buy XP Power IMM0112S12 now and experience unmatched reliability and performance with medical-grade safety and low leakage current.
Frequently Asked Questions
Where can I buy XP POWER IMM0112S12?
You can click on the BUY or RFQ button to purchase IMM0112S12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part IMM0112S12?
You can download the IMM0112S12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of IMM0112S12?
XP POWER
