XP POWER DTE10DINCLIP DC-DC Converter
The DTE10 series are 10W encapsulated DC-DC converters featuring screw terminals for easy connection. A built-in LED indicates power status, and a remote On/Off control is standard. When disabled, standby current is only 2.5mA. They provide 3kVDC input/output isolation for safe separation between supply and load. The modules offer full protection against input undervoltage, short circuits, and overloads. Designed for durability, they operate over a wide temperature range from -40°C to +105°C, with full power output up to 80°C. They conform to IEC/UL/cUL 62368-1 safety standards, meet EN55032 Class A emissions without external components, have an MTBF exceeding 4 million hours, and measure 79.0mm x 34.0mm x 22.0mm.
XP POWER DTE10DINCLIP DC-DC Converter Specifications:
- Rated Power: 10W
- Input Voltage Range: 9V-36V or 18V-75V depending on model
- Input Current: 2.00A at 5.1V, 0.833A at 12V, 0.666A at 15V, 0.418A at 24V, 0.208A at 48V
- Output Voltage Options: 5V, 12V, 15V, 24V, 48V
- Output Current: up to 2A depending on model
- Efficiency: Up to 86%
- Isolation Voltage: 3kVDC input/output
- Operating Temperature Range: -40°C to +105°C, full power to 80°C
- Dimensions: 79.0mm x 34.0mm x 22.0mm
- Protection: Against input undervoltage, short circuit, overload
- Standby Current: 2.5mA when disabled
- Safety Approvals: IEC/UL/cUL 62368-1, EN55032 Class A
- MTBF: >4 million hours
- Case Material: Epoxy potted plastic

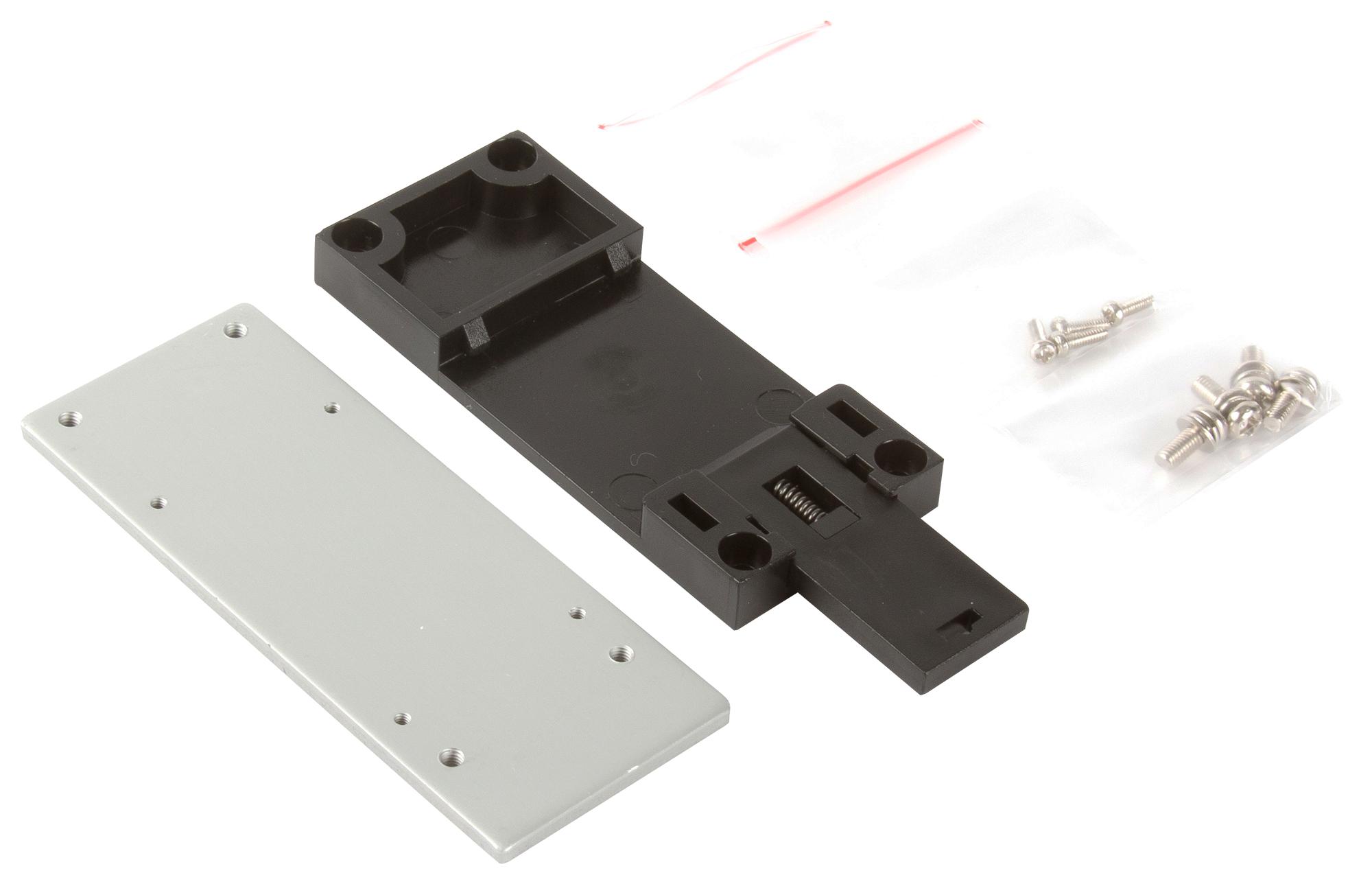

- Mounting: Chassis or optional DIN rail
- Additional Features: Remote On/Off, Power Good LED
Buy the Buy XP Power DTE10 Series DC-DC Converter Part Number DTE10DINCLIP Online
Shop online for the XP Power DTE10 series 10W encapsulated DC-DC converters. Designed for industrial and commercial applications, these converters feature screw terminals, remote On/Off, 3kVDC isolation, and wide operating temperature range from -40°C to +105°C. They include safety approvals, high efficiency, protection circuits, and an LED indicator. Perfect for space-constrained environments, they ensure reliable power conversion with full protection against faults. Order now for quick delivery and enjoy lasting performance for your electronic and industrial projects.
Buy XP Power DTE10 series DC-DC converter now and experience unmatched reliability, wide temperature operation, and essential safety features for industrial applications.
Frequently Asked Questions
Where can I buy XP POWER DTE10DINCLIP?
You can click on the BUY or RFQ button to purchase DTE10DINCLIP from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part DTE10DINCLIP?
You can download the DTE10DINCLIP datasheet or visit the XP POWER website for support.
Who is the manufacturer of DTE10DINCLIP?
XP POWER
