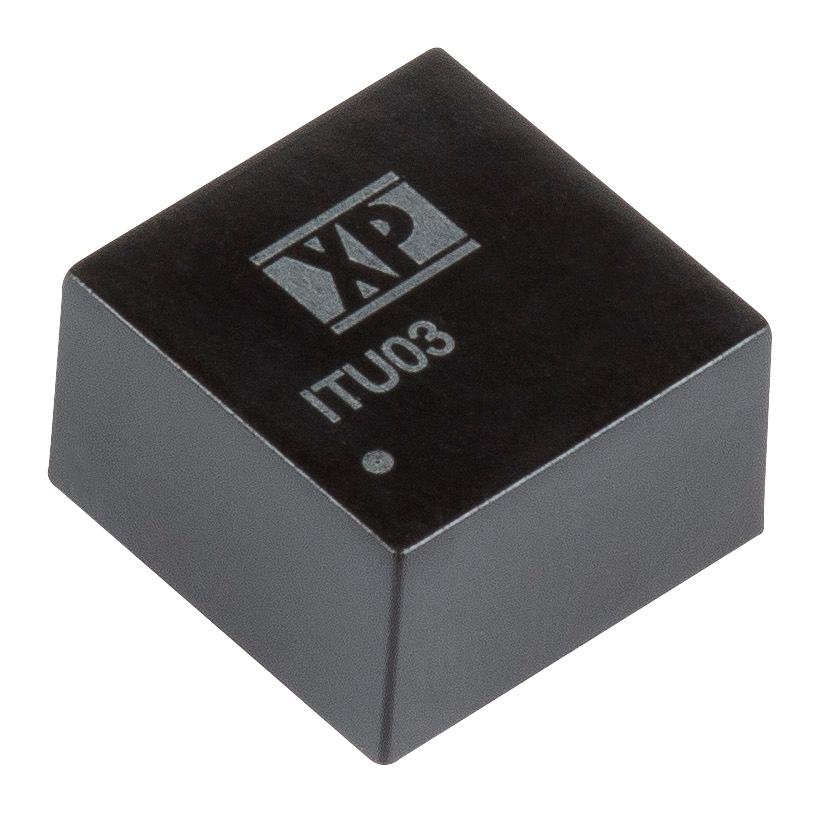

XP POWER ITU0312S3V3 DC-DC Converter
The DC-DC converter offers a compact, cost-effective 3W power solution suitable for industrial applications. It features a wide input voltage range of 4.5 to 75VDC, with regulated single and dual outputs from 3.3 to 30VDC, ensuring stable performance across various load conditions. The rugged DIP8 package provides high input/output isolation of 1.6kVDC, with efficiency up to 84%. It includes short-circuit protection, remote on/off functionality, and maintains full power up to 70°C. Designed for reliability, it has a MTBF over 820,000 hours and complies with EN55032 standards for EMI emissions.
XP POWER ITU0312S3V3 DC-DC Converter Specifications:
- Input Voltage Range: 4.5 to 75VDC with surge capability for 100ms
- Output Voltage: 3.3V, 5V, 12V, 15V, 20V, 30VDC, regulated with 1% accuracy
- Power Output: 3 Watts with full power up to +70°C
- Isolation: 1.6kVDC between input and output
- Efficiency: up to 84%
- Dimensions: 0.55 x 0.55 x 0.32 inches (14.0 x 14.0 x 8.1 mm)
- Operating Temperature: -40°C to +80°C with full power up to +70°C
- Short-Circuit Protection: Continuous with auto recovery
- Remote On/Off: Controlled via remote logic input
- Input/Output Capacitance: Up to 3300nF for noise filtering
- Standards: Meets EN55032 for EMI, safety compliant to safety standards
- MTBF: >820,000 hours (MIL-HDBK-217F, +25°C GB)
Buy the Buy XP Power DC-DC Converter Part Number ITU0312S3V3 Online
Discover the high-performance XP Power DC-DC converter series. With a 3W power rating, wide input voltage range, regulated outputs, and high efficiency up to 84%, this module provides reliable power solutions for industrial and embedded applications. Its compact DIP8 package offers high input/output isolation of 1.6kVDC, enabling safe and dependable operation. Features include short-circuit protection, remote on/off, and rugged construction for demanding environments. Perfect for designers seeking a durable, efficient power conversion component that complies with EMI standards and offers long MTBF.
Order your XP Power series ITU0312S3V3 high-reliability power module today and ensure your project benefits from stable, efficient power conversion with robust protections.
