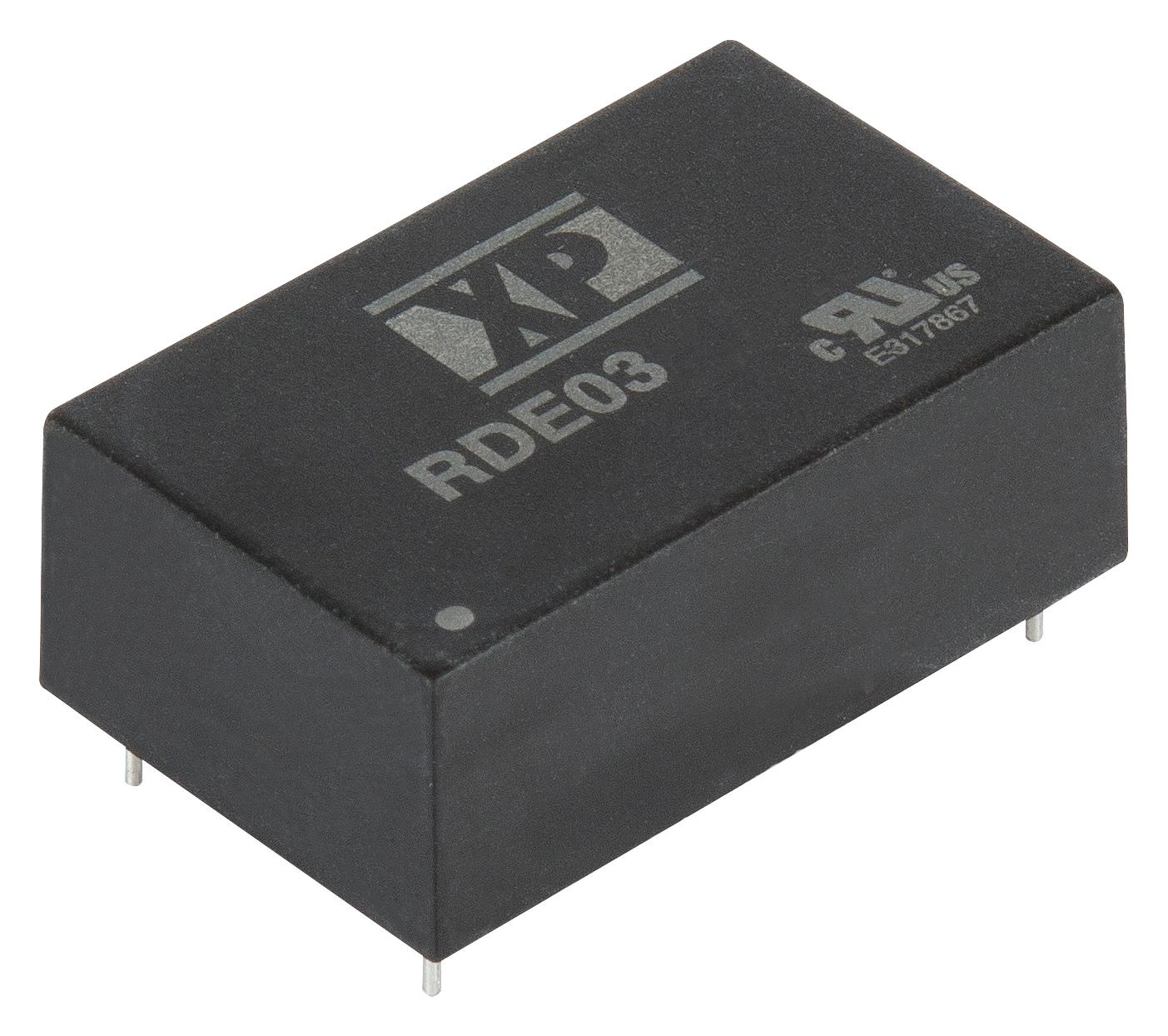

XP POWER RDE03110S12 Railway Power Converter
The RDE03 series offers a compact DC-DC converter solution designed specifically for railway applications. It features regulated single and dual outputs, a wide 4:1 input voltage range suitable for 72 VDC and 110 VDC systems, and reinforced safety with 3000 VAC isolation. The converters operate reliably from -40°C to +105°C and maintain full power output at 80°C. They comply with standards including EN50155, IEC60571, and EN50121-3-2, and require no external filters, ensuring a robust, efficient power supply for demanding railway environments.
XP POWER RDE03110S12 Railway Power Converter Specifications:
- Input Voltage Range: 18-75 VDC (72/110 V nominal)
- Output Voltage: 5V, 12V, 15V, 18V, 30V (model dependent)
- Output Current: 75-600 mA (model dependent)
- Isolation: 3000 VAC reinforced
- Operating Temperature: -40°C to +105°C
- Full Power at 80°C: Yes
- Efficiency: up to 85%
- Input Surge: 100 VDC to 170 VDC depending on model
- Ripple & Noise: 50/75 mV pk-pk
- Case Material: Non-conductive UL94V-0 plastic
- Dimensions: 1.25 x 0.8 x 0.47 inches (31.8 x 20.3 x 12.0 mm)
- Protection: Overload, Short Circuit, Undervoltage Lockout
- Certification: EN50155, IEC60571, EN50121-3-2, UL/cUL
Buy the Buy XP Power RDEO3 Series Part Number RDE03110S12 Online
Purchase your XP Power RDEO3 Series RDE03110S12 online today and benefit from a robust, efficient DC-DC converter specifically designed for railway environments. With reinforced safety isolation of 3000 VAC, wide input voltage range, and operation from -40°C to +105°C, this converter guarantees dependable power delivery under extreme conditions. Perfect for demanding rail applications, it exceeds standards such as EN50155 and IEC60571, with no external filter needed. Secure your supply chain by ordering today for seamless integration into your electronic systems.
Order your XP Power RDEO3 Series RDE03110S12 today and ensure reliable, high-performance power conversion for demanding railway systems.
