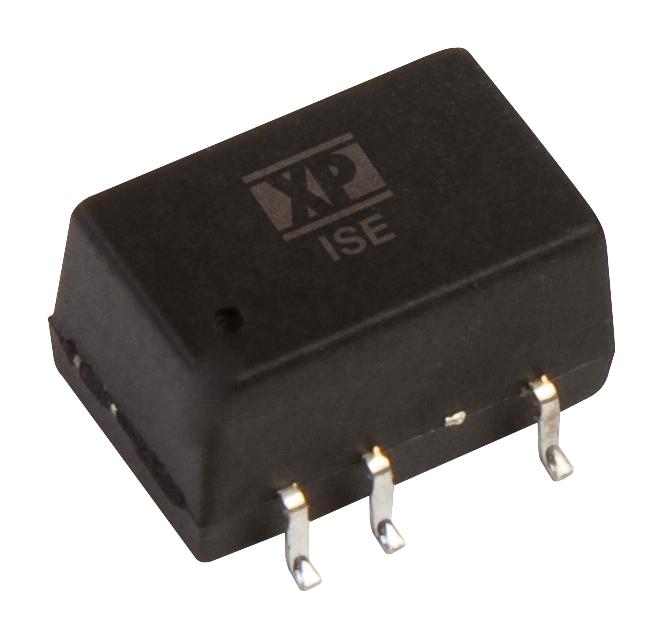

XP POWER ISE0305A Surface-Mount Power Module
The ISE series is an isolated 1W surface-mount DC-DC converter with a single output, industry-standard pinout, and 1500VDC isolation. Operating from -40°C to 105°C, it offers reliable power conversion suitable for industrial, clock, and timing applications. Its compact size (0.500 x 0.44 x 0.285 inches) ensures easy integration into tight spaces. The converter supports various input voltages from 2.97V to 26.4V and provides output voltages typically ranging from 3.3V to 26.4V with high efficiency and low ripple, making it ideal for demanding environments.
XP POWER ISE0305A Surface-Mount Power Module Specifications:
- Power Rating: 1 Watt
- Input Voltage Range: 2.97-3.63V, 5.50V, 12V, 15V, 24V nominal options
- Output Voltage Range: 3.3V to 26.4V (typical values based on model)
- Output Current: Varies with output voltage, supporting full load at 1W
- Isolation Voltage: 1500 VDC, optional 3000 VDC with suffix -H
- Operating Temperature: -40°C to +105°C
- Dimensions: 0.500 x 0.44 x 0.285 inches (12.7 x 11.2 x 7.25 mm)
- Efficiency: Up to 85%, supporting natural convection cooling
- Isolation Resistance: 1 GΩ at 500 VDC
- Switching Frequency: 50-300 kHz
- Surge Voltage: Up to 30 V at input for certain models
- Humidity & Storage: Non-condensing, -55°C to +125°C storage temperature
- Certifications: Industry standards, suitable for industrial applications
- Pin Diameter: 0.02 ±0.002 inches, pin pitch tolerance ±0.014 inches
Buy the XP Power ISE0305A – Reliable Industrial DC-DC Converter for Power Projects
Enhance your projects with the XP Power ISE series surface-mount 1W DC-DC converter, offering industry-standard pinout, 1500VDC isolation, and operational temperature from -40°C to 105°C. Compact and reliable, it supports various input and output voltage configurations, providing high efficiency and low ripple. Ideal for industrial, clock, and timing applications requiring robust power solutions, its small size and wide temperature range ensure seamless integration in demanding environments. Purchase online today for guaranteed quality and dependable performance.
Order your XP Power ISE0305A series 1W surface-mount DC-DC converter today and give your industrial, clock, or timing systems the dependable power they need.
Frequently Asked Questions
Where can I buy XP POWER ISE0305A?
You can click on the BUY or RFQ button to purchase ISE0305A from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part ISE0305A?
You can download the ISE0305A datasheet or visit the XP POWER website for support.
Who is the manufacturer of ISE0305A?
XP POWER
