XP POWER IA1212S Dual Output DC-DC Converter
The IA Series of compact dual-output DC-DC converters offer reliable, cost-effective solutions suitable for process control, instrumentation, and logic circuits. These SIP and DIP package modules provide 1 Watt of power, with galvanic isolation of 1.0kV DC and operating temperature range from -40°C to +85°C. They feature industry-standard pinouts, high efficiency up to 80%, and are designed with UL94V-0 rated non-conductive plastic cases for safety. Ideal for applications demanding compact size, electrical isolation, and stable power conversion, these converters ensure long MTBF over 1.1 million hours, backed by a 3-year warranty.
XP POWER IA1212S Dual Output DC-DC Converter Specifications:
- Input Voltage Range: 3.3V, 5V, 12V, 15V, 24V
- Output Voltage Options: 3.3V, 5V, 12V, 15V, 24V, 28V, 29V
- Output Current: up to 151mA depending on model
- Efficiency: Up to 80%
- Isolation Voltage: 1.0kV DC
- Isolation Resistance: 1 GΩ
- Isolation Capacitance: 60 pF
- Switching Frequency: 80 kHz (variable)
- Operating Temperature: -40°C to +85°C
- Case Material: Non-conductive black plastic, UL94V-0 rated
- Dimensions (SIP): 0.76 x 0.24 x 0.40 inches (19.3 x 6.09 x 10.16 mm)
- Dimensions (DIP): 0.80 x 0.40 x 0.25 inches (20.32 x 10.16 x 6.35 mm)
- MTBF: >1.1 million hours
- Warranty: 3 years

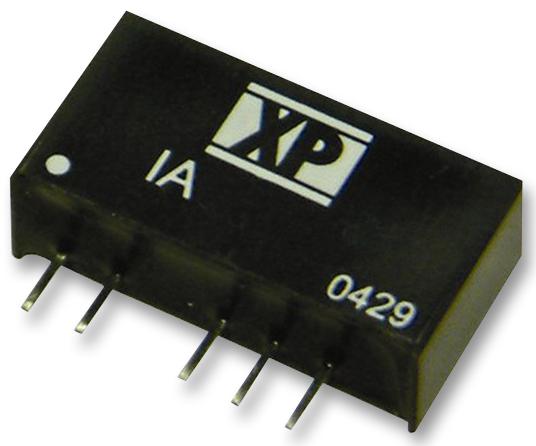

Buy the XP Power Series IA Dual Output DC-DC Converter: IA1212S
Purchase the XP Power IA1212S online today and experience reliable power conversion with high efficiency, galvanic isolation of 1kV, and a compact SIP package design. Ideal for industrial control, instrumentation, and logic circuits, this converter offers stable operation from -40°C to +85°C, ensuring long MTBF over 1.1 million hours. Backed by a 3-year warranty, its low ripple noise and industry-standard pinout make installation straightforward and dependable for demanding applications requiring compact size, safety, and electrical isolation.
Get XP Power IA1212S today—built for precision and long-lasting durability in compact power supply applications.
Frequently Asked Questions
Where can I buy XP POWER IA1212S?
You can click on the BUY or RFQ button to purchase IA1212S from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part IA1212S?
You can download the IA1212S datasheet or visit the XP POWER website for support.
Who is the manufacturer of IA1212S?
XP POWER
