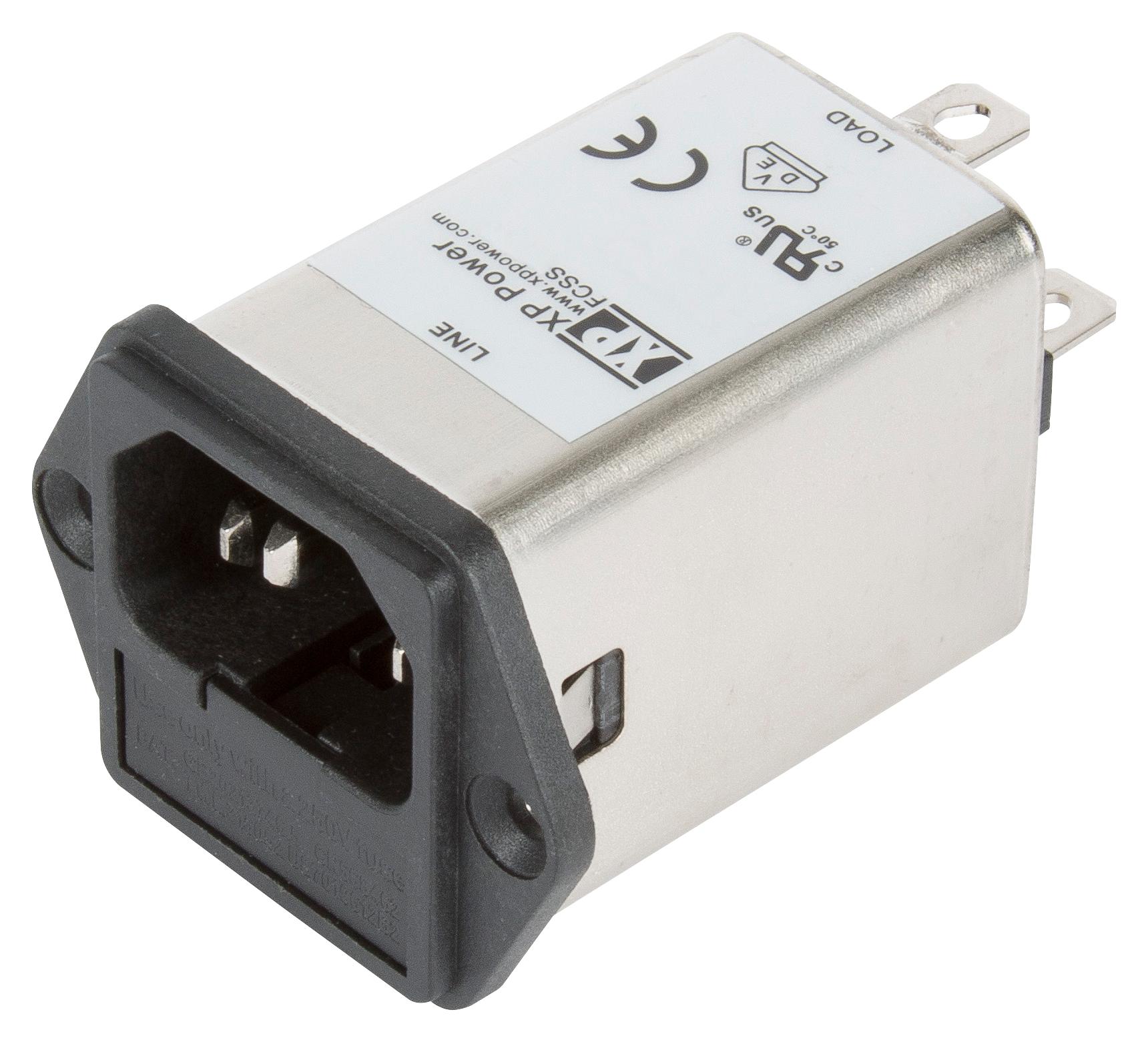

XP POWER FCSS03SFR Power Entry Inlet

The FCSS is an IEC 320-C14 filtered inlet featuring a front-accessible single fuse holder when the mains connector is disconnected. It incorporates a mains EMI filter within a compact, shielded metal housing, providing excellent attenuation of conducted electromagnetic interference from the mains supply and reducing conducted emissions from the equipment. Designed for use with class I appliances, all models include a bleed resistor to safely discharge filter capacitors when power is disconnected. The filter complies with safety standards EN60939-2 for passive filters and ANSI/UL 1283 for EMI filters. It operates across a wide temperature range from -40°C to +110°C, with full power performance up to +50°C. The inlet is suitable for IEC 320-C14 applications, available with fuse ratings of 1A, 3A, 6A, and 10A, and features screw mount versions, 6.3 x 0.8mm Faston terminals, and a compact design suitable for ITE applications.

View FCSS03SFRDatasheet [pdf]

Buy the Buy XP Power IEC Power Entry Inlet Part Number FCSS03SFR Online

Purchase the XP Power Power Entry Inlet online to ensure your electronic devices receive a reliable, high-quality power connection with excellent EMI suppression. Featuring a compact, shielded metal housing, it includes a front-accessible fuse holder and a built-in bleed resistor for safety. Suitable for class I appliances, this inlet supports ratings of 1A, 3A, 6A, and 10A, with screw mount options and ultra-wide terminal compatibility. Order now for dependable performance across operating temperatures from -40°C to +110°C, backed by a 3-year warranty.

Order your XP Power SeriesFCSS03SFR IEC power inlet today and provide your electronic equipment with reliable power input filtering and safety features.
