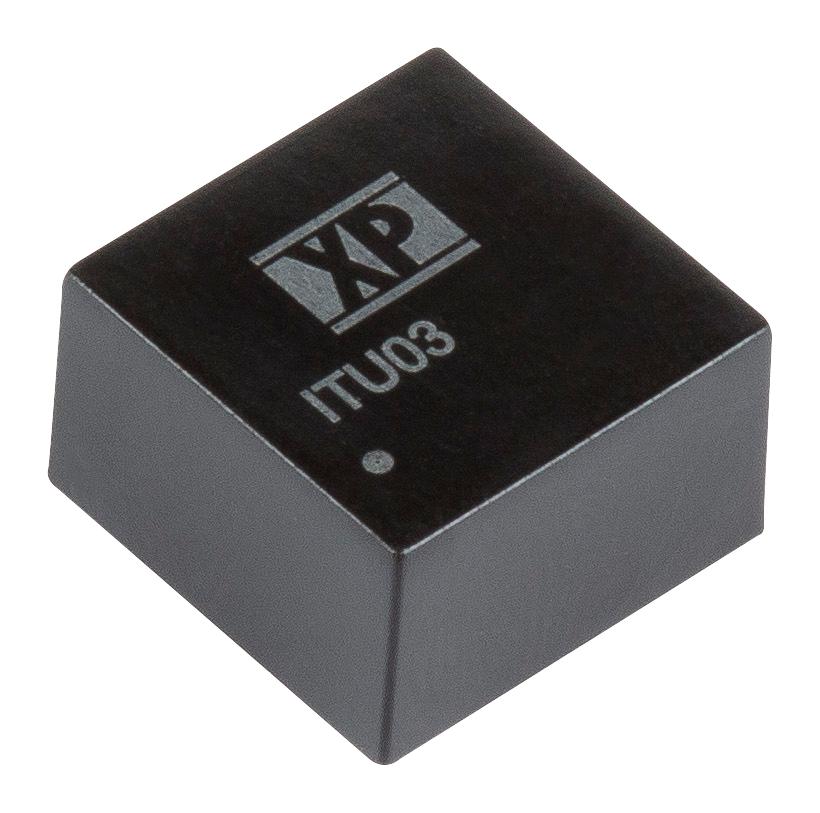

XP POWER ITU0324S12 Industrial Power Module
The ITU0324S12 is a compact 3W DC-DC converter from the XP Power ITU series, designed for industrial applications. It features wide input voltage ranges from 4.5V to 75VDC, regulated outputs from 3.3V to 30V, high efficiency up to 84%, and robust encapsulated DIP8 construction. This module provides 1% regulation, remote on/off, and short circuit protection. Suitable for rugged environments, it offers a temperature range from -40°C to +80°C, includes 1.6kVDC input/output isolation, and has a life expectancy over 820,000 hours, backed by a 3-year warranty, making it ideal for industrial and automation projects.
XP POWER ITU0324S12 Industrial Power Module Specifications:
- Input Voltage Range: 4.5V to 75VDC
- Output Power: 3 Watts
- Output Voltage: Regulated from 3.3V to 30VDC
- Input/Output Isolation: 1.6kVDC
- Efficiency: up to 84%
- Operating Temperature Range: -40°C to +80°C (Full power up to +70°C)
- Dimensions: 0.55 x 0.55 x 0.32 inches (14.0 x 14.0 x 8.1mm)
- Encapsulation: DIP8 package
- Short Circuit Protection: Yes, with auto recovery
- Remote On/Off: Yes
- MTBF: over 820,000 hours
- Compliance: EN55032
Buy the XP Power ITU0324S12 – Reliable DC-DC Converter for Industrial Applications
Secure the XP Power ITU0324S12 today—a cost-effective 3W DC-DC converter designed for industrial environments. Featuring wide input voltage ranges from 4.5V to 75VDC, regulated outputs from 3.3V to 30V, high efficiency up to 84%, and robust DIP8 packaging for durability. It includes 1% regulation accuracy, remote on/off control, and short circuit protection, withstanding from -40°C to +80°C. Ideal for automation, control systems, and rugged industrial applications, this converter guarantees reliable performance, long MTBF, and a 3-year warranty for lasting reliability.
Get XP Power ITU0324S12 today—built for precision, durability, and industrial reliability.
Frequently Asked Questions
Where can I buy XP POWER ITU0324S12?
You can click on the BUY or RFQ button to purchase ITU0324S12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part ITU0324S12?
You can download the ITU0324S12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of ITU0324S12?
XP POWER
