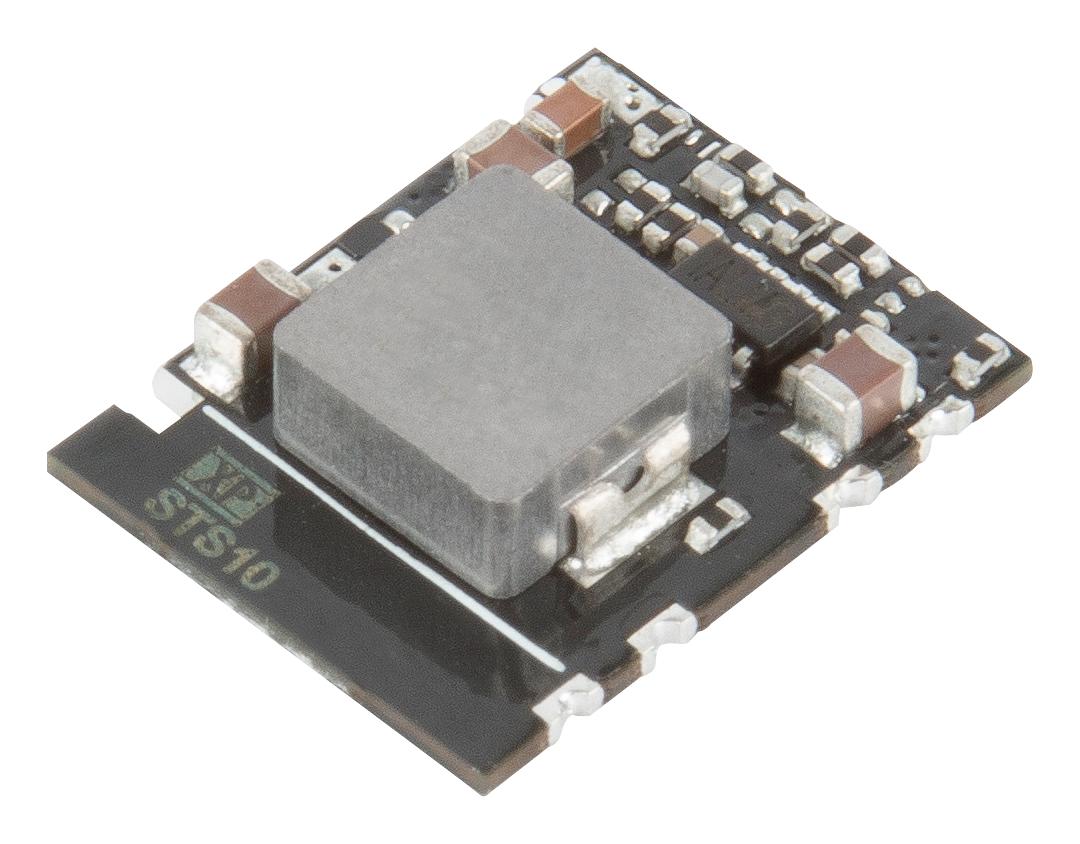

XP POWER STS1005S2V5 DC-DC Buck Regulator
The STS10 series consists of low-cost, high-efficiency DC-DC buck regulators utilizing surface-mount technology and automation. These regulators provide regulated single outputs ranging from 1.2V to 15V DC, with a wide input voltage range. Features include voltage trimming of ±10%, remote ON/OFF control, continuous short-circuit protection, and high efficiency up to 96%. They are housed in an SMD-10 package, are non-isolated, and do not require heatsinks. Designed for full load operation at up to +65°C, they meet Class B emission standards with external components.
XP POWER STS1005S2V5 DC-DC Buck Regulator Specifications:
- Input Voltage Range: 3.0-36.0V DC
- Output Voltage Range: 1.2V to 15V DC
- Maximum Output Current: 1.0A
- Output Voltage Trim: ±10%
- Efficiency: up to 96%
- Operating Temperature: -40°C to +105°C
- Full load operation at up to +65°C
- Package: SMD-10
- Isolation: Non-isolated
- Short Circuit Protection: Yes
- Remote On/Off: Yes
- No heatsink required
- Width: 0.60 inches (15.20 mm)
- Length: 0.47 inches (11.80 mm)
- Height: 0.15 inches (3.6 mm)
- Compliance: Class B conducted & radiated emissions with external components
Buy the Buy XP Power DC-DC Buck Regulator Part Number STS1005S2V5 Online
Enhance your power management system with the XP Power DC-DC Buck Regulator, offering 1.2V to 15V output, up to 96% efficiency, remote on/off, and short-circuit protection. Ideal for compact, high-performance applications, it features a surface-mount design that requires no heatsink, ensuring easy installation. Suitable for full load operation at +65°C, this regulator complies with Class B emission standards with external components. Purchase online today to benefit from fast delivery, quality assurance, and technical support for your electronics or industrial projects.
Get XP Power STS1005S2V5 today—built for high efficiency and reliable power regulation in compact SMD packages.
Frequently Asked Questions
Where can I buy XP POWER STS1005S2V5?
You can click on the BUY or RFQ button to purchase STS1005S2V5 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part STS1005S2V5?
You can download the STS1005S2V5 datasheet or visit the XP POWER website for support.
Who is the manufacturer of STS1005S2V5?
XP POWER
