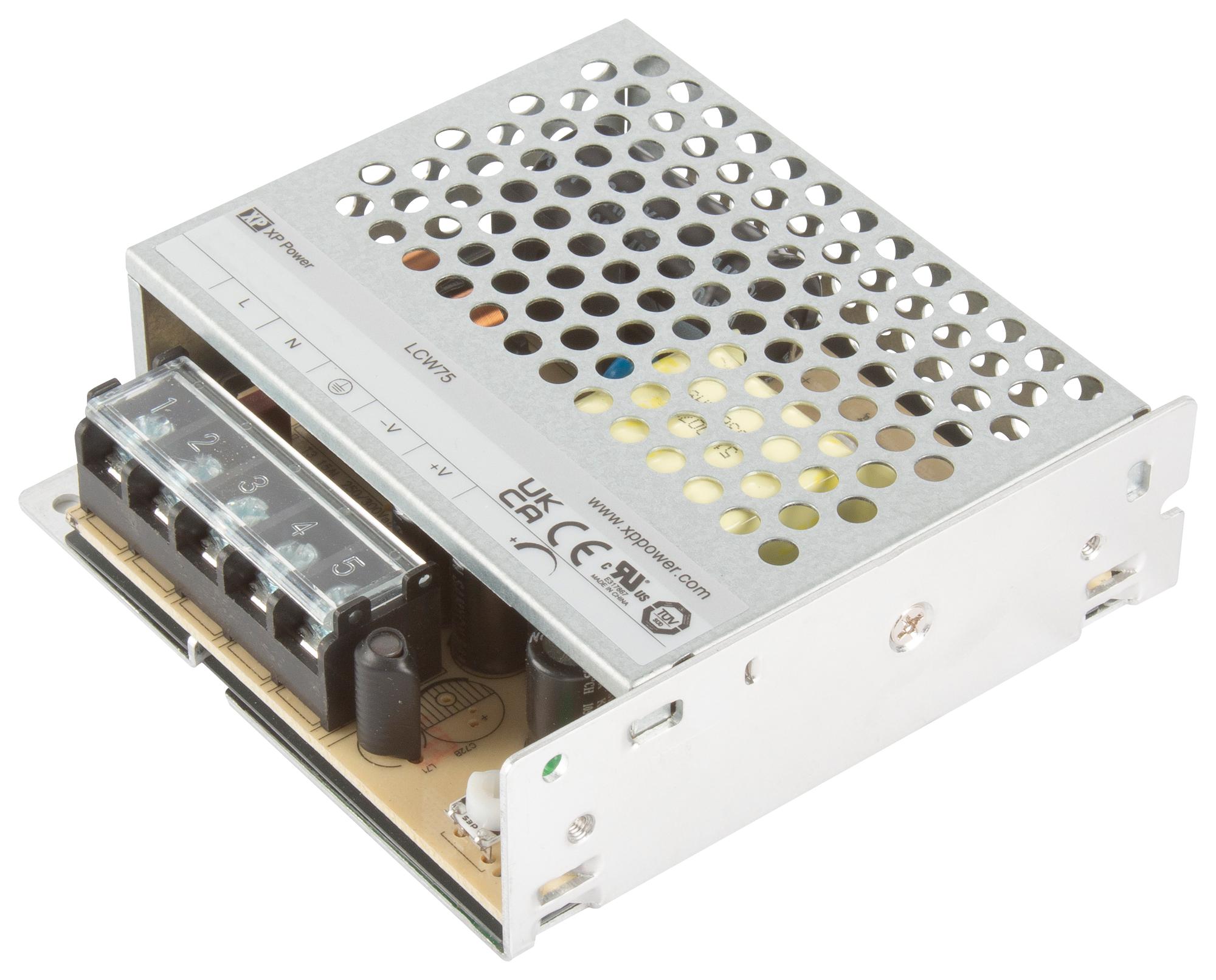

XP POWER LCW75US05 Power Supply
The LCW75 series regulated output convection-cooled AC to DC power supplies deliver 75W of power and are designed for industrial electronics, household, and technology applications. They feature a wide input voltage range of 85-305VAC, adjustable output voltage within ±10%, and a switching frequency of 65kHz. The units include protections against short circuits, overcurrent, overvoltage, and overload conditions, ensuring reliable operation. Certified by UL, EN, CE, and UKCA, these power supplies are suitable for auxiliary power sources, security systems, lighting control, smart home and office automation, ticketing, and vending applications. They include a conformal coating option, operate from -30°C to +70°C, and are housed in an aluminum chassis with vented steel cover. Dimensions are about 99mm x 97mm x 30mm, featuring an integrated connector cover and a 3-year warranty.
XP POWER LCW75US05 Power Supply Specifications:
- Power Rating: 75W
- Input Voltage Range: 85-305VAC
- Output Voltage: 5.0V to 48.0VDC, adjustable by ±10%
- Output Currents: from 14.0A to 1.60A depending on model
- Efficiency: up to 90%
- Dimensions: 99mm x 97mm x 30mm
- Operating Temperature Range: -30°C to +70°C
- Switching Frequency: 65kHz
- Protection Features: Short circuit, overvoltage, overload
- Certifications: UL62368-1, EN62368-1, EN60335, EN61558, CE, UKCA
- Construction: Aluminum chassis, vented galvanized steel cover
- Conformal Coating: Optional, UL94 V-0 rated
- Environmental Ratings: Non-condensing humidity 5-90%, up to 5000m altitude
- Compliance: EMI EN55032 Class B, ESD EN61000-4-2, radiated immunity EN61000-4-3
Buy the XP Power Series LCW75 75W AC-DC Power Supply: LCW75US05
Purchase the XP Power Series LCW75US05 75W convection-cooled power supply online today to enhance your industrial or household electronics setup. This reliable unit features a wide input voltage of 85-305VAC, adjustable output voltage within ±10%, and high efficiency of up to 90%. Certified for safety and EMC standards, it includes protections against shorts, overcurrent, and overvoltage for maximum safety and durability. Its compact size of 99mm by 97mm by 30mm, robust aluminum chassis, and a 3-year warranty make it ideal for security systems, lighting, automation, and vending applications. Secure yours now!
Order your XP Power Series LCW75US05 75W convection-cooled power supply today and ensure reliable power for your industrial or household applications.
Frequently Asked Questions
Where can I buy XP POWER LCW75US05?
You can click on the BUY or RFQ button to purchase LCW75US05 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part LCW75US05?
You can download the LCW75US05 datasheet or visit the XP POWER website for support.
Who is the manufacturer of LCW75US05?
XP POWER
