XP POWER JHM2012S05 Medical Power Module
The JHM20 series of DC-DC modules offers a compact, reliable power solution designed for medical applications, meeting international safety standards. They provide regulated single and dual outputs from 5V to 30V DC, with output voltage trim of ±10%, and have a 2:1 input voltage range. These PCB mount modules feature reinforced isolation of 4kVAC, support 2 x MOPP at 250VAC, and have a low patient leakage current of 2.5μA. Compliant with IEC60601-1 third edition and EN55011 Class A, they include short circuit protection and are suitable for medical and electronic device power supplies.
XP POWER JHM2012S05 Medical Power Module Specifications:
- Input Voltage Range: 9-36 VDC, 2:1 range
- Output Voltage: 5V to 30V, adjustable ±10%
- Output Current: up to 1750 mA
- Efficiency: up to 88%
- Isolation: Reinforced 4kVAC, 1 min.
- Leakage Current: 2.5μA
- Operating Temperature: -40°C to +80°C
- Case Size: 2 x 1 inches (50.8 x 25.4 mm)
- Weight: 30 g
- Humidity: 5-95% RH, non-condensing
- Shock & Vibration: IEC standards conformance
- Protection: Short circuit, overload, overvoltage
- Compliance: IEC60601-1 third edition, EN55011 Class A
- Soldering Profile: Sn/Cu/Ni, peak temperature 260°C

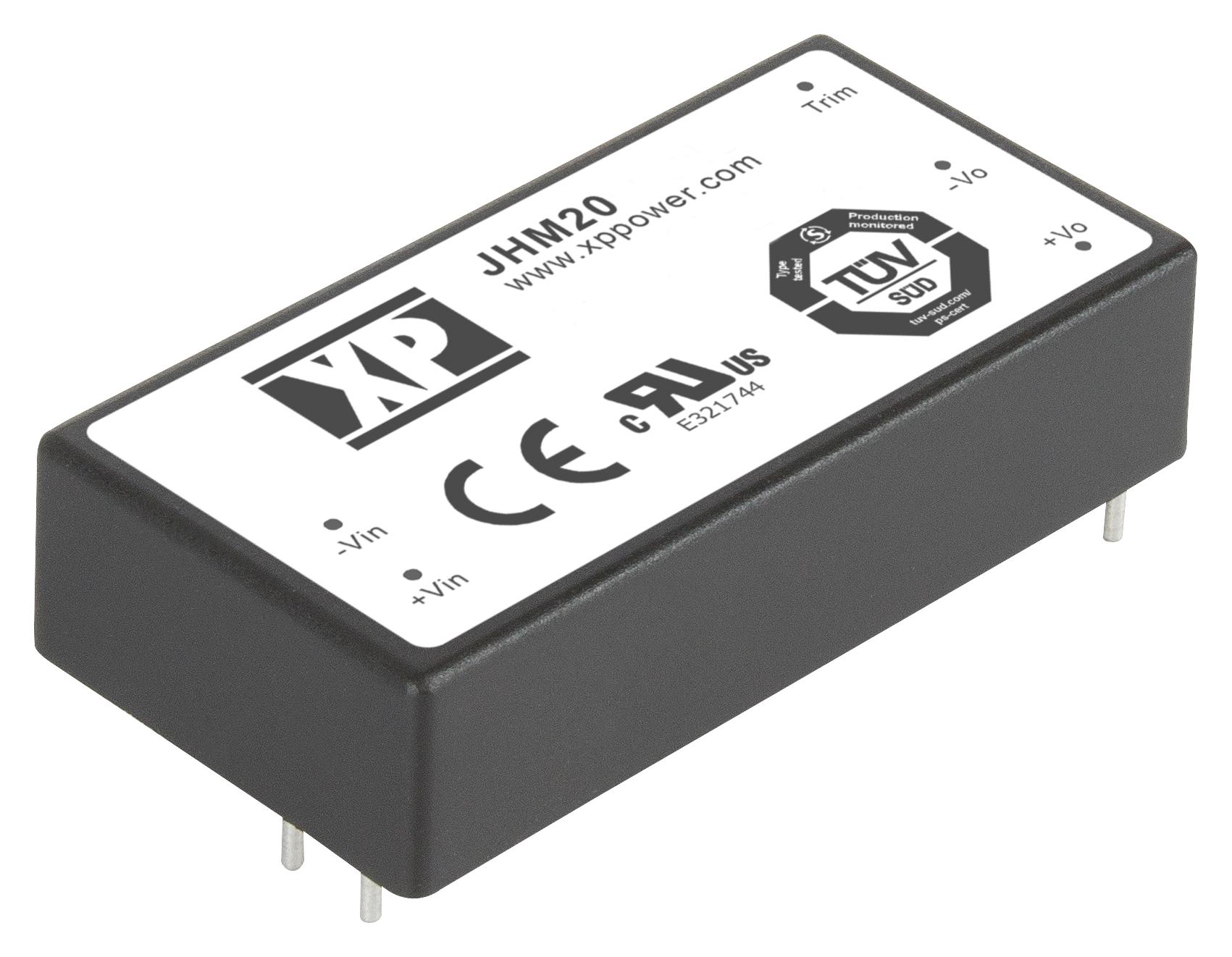

Buy the Buy XP Power DC-DC Converter Part Number JHM2012S05 Online
Secure your supply of high-quality medical power modules online today. The XP Power JHM20 series provides compact, high-efficiency DC-DC converters with reinforced isolation, adjustable outputs, and compliance with international safety standards. Perfect for medical devices, test equipment, and industrial electronics, these modules feature low leakage current, short circuit protection, and robust environmental ratings. Purchase now to benefit from fast delivery, reliable performance, and peace of mind in your medical and electronic applications.
Order your XP Power JHM2012S05 Series medical-grade DC-DC converter today and ensure reliable power for critical medical and electronic projects.
Frequently Asked Questions
Where can I buy XP POWER JHM2012S05?
You can click on the BUY or RFQ button to purchase JHM2012S05 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part JHM2012S05?
You can download the JHM2012S05 datasheet or visit the XP POWER website for support.
Who is the manufacturer of JHM2012S05?
XP POWER
