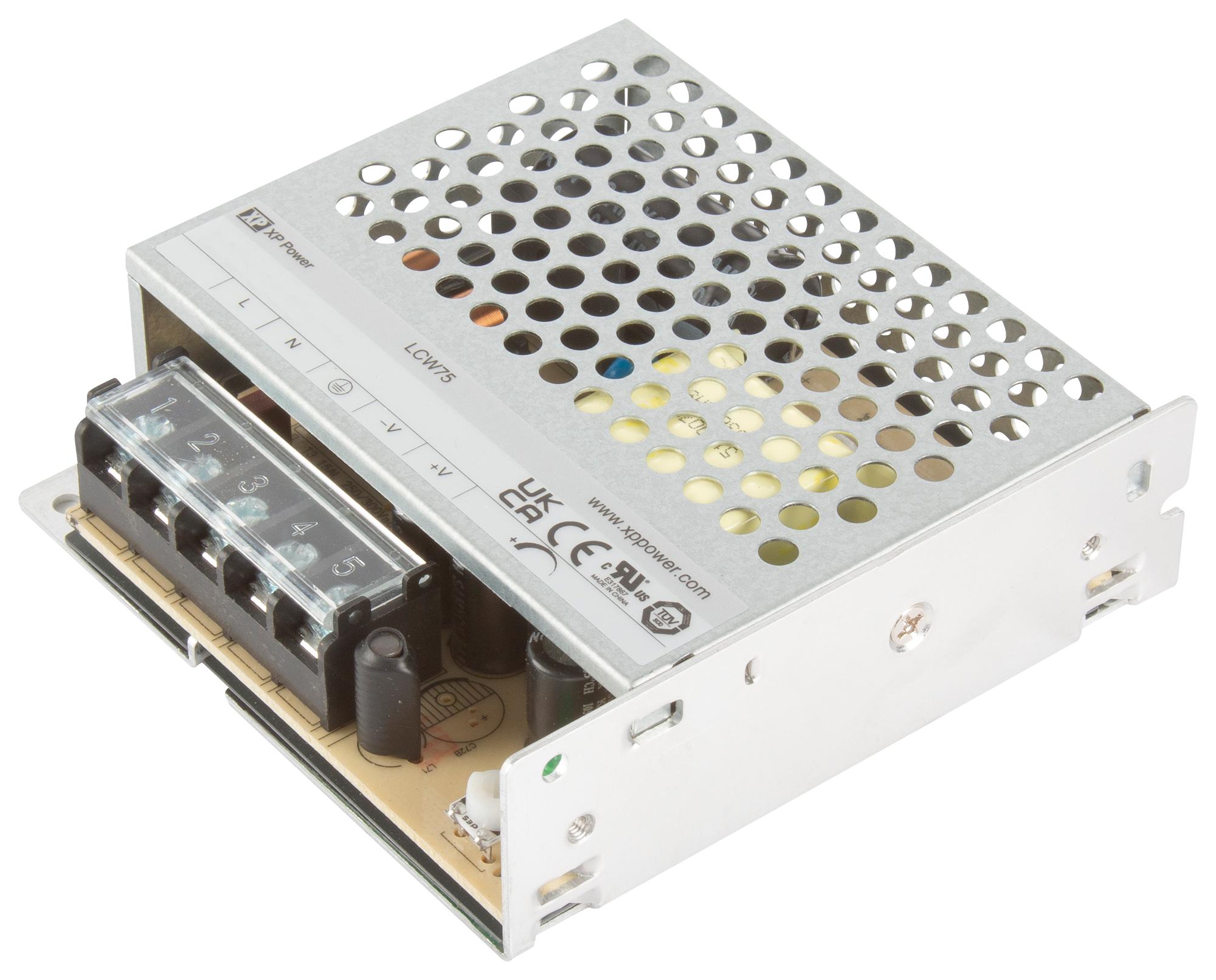

XP POWER LCW75US36 Power Supply
The LCW75 series regulated output convection-cooled AC to DC power supplies deliver 75W with high efficiency and extensive protections. Designed for industrial, household, and technology applications, they operate within an 85-305VAC input range, featuring a variable output voltage from 5.0V to 48.0V DC with ±10% adjustment. These units have a switching frequency of 65kHz and offer options like conformal coating. Certified UL, EN, CE, and UKCA, they are built into an aluminum chassis with galvanized steel cover, operating from -30°C to +70°C, and include a 3-year warranty.
XP POWER LCW75US36 Power Supply Specifications:
- Input Voltage Range: 85-305VAC
- Output Power: 75W
- Output Voltage: 5.0V to 48.0V DC, adjustable within ±10%
- Efficiency: up to 89%
- Switching Frequency: 65kHz
- Operating Temperature: -30°C to +70°C
- Protection: Short circuit, overcurrent, overvoltage, overload
- Regulation: Line regulation 1%, load regulation 10%
- Dimensions: 3.898 inches x 3.819 inches x 1.181 inches (99mm x 97mm x 30mm)
- Enclosure: Aluminum chassis with vented galvanized steel cover
- Certifications: UL, EN, CE, UKCA
- Conformal Coating: Optional
- Cooling: Natural convection
- Isolation: Input to output 4000V, input to ground 2000V, output to ground 1250V
Buy the XP Power Series LCW75 AC-DC Power Supply: LCW75US36
Order the XP Power LCW75US36 power supply online today and enjoy reliable, efficient power with adjustable voltage, high efficiency up to 89%, and extensive protection features. Its compact aluminum enclosure and conformal coating option ensure durability across various environments. Perfect for industrial electronics, household appliances, or security systems, this 75W convection-cooled unit operates efficiently within -30°C to +70°C. Benefit from a 3-year warranty, certified safety standards, and easy installation—get your power solution now for stress-free setup and dependable operation.
Buy XP Power LCW75US36 now and experience unmatched reliability and performance with efficient power delivery and comprehensive protections for industrial and household applications.
