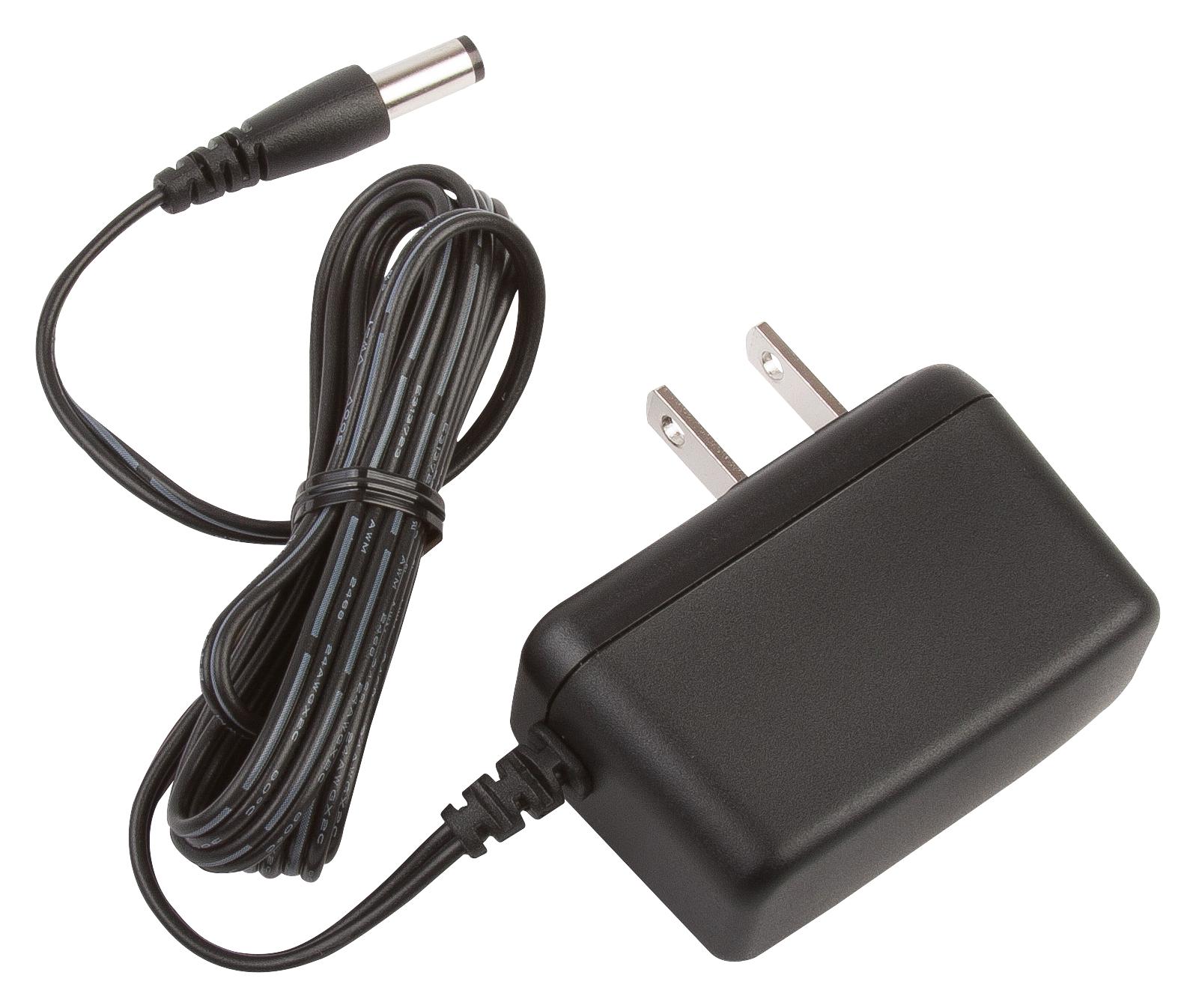

XP POWER VEL18US120USJA Power Adapter
The VEL18 series wall plug adapters comply with the latest Energy Efficiency Level VI standards, offering high active mode efficiency and very low no-load power consumption. Designed with a standard DC jack connector, these adapters are suitable for a wide range of cost-sensitive applications while delivering industry-leading performance. They feature universal input, fixed mains connectors, and a Class II construction for safety. Output voltages range from 9V to 24V, with a 5.5mm x 2.1mm x 12mm DC jack connector. The operating temperature range is from 0°C to 60°C. Certified according to UL/cUL60950-1, IEC60950-1, TUV EN60950-1, and CCC safety standards. Dimensions are 90mm x 34mm x 47.5mm. Suitable for industrial and consumer electronics applications.
XP POWER VEL18US120USJA Power Adapter Specifications:
- Input Voltage: 90-264 VAC
- Input Frequency: 50-60 Hz
- Input Current: 0.6 A at 100 VAC
- Inrush Current: 60 A cold start at 25°C
- Efficiency: 85% at 25%, 50%, 75%, 100% load
- Output Voltages: 9V, 12V, 15V, 18V, 24V
- Output Current: 2000 mA, 1500 mA, 1250 mA, 1000 mA, 750 mA depending on model
- Total Regulation: 5%
- Isolation: 3000 VAC input to output
- Operating Temperature: 0°C to 60°C
- Dimensions: 90mm x 34mm x 47.5mm
- Weight: approximately 65g
- Certifications: UL60950-1, cUL, TUV EN60950-1, CCC
- Safety Protection: Internal fuse, short circuit protection
- Operating Humidity: 3-95% RH, non-condensing
Buy the XP Power Series AC-DC Power Supplies: VEL18US120USJA
Purchase the XP Power VEL18US120USJA power adapter online today and enjoy industry-leading efficiency, reliable performance, and comprehensive safety certifications. Designed for cost-sensitive applications, this energy-efficient adapter offers universal input capability, multiple output voltages from 9V to 24V, and a robust design with a 3,000 VAC isolation barrier. Its compact dimensions and Class II construction ensure safety and versatility for a broad range of industrial and consumer electronics. Secure your supply chain by ordering online now for quick delivery and excellent service.
Buy XP Power VEL18US120USJA now and experience unmatched reliability and performance in energy-efficient power supplies for your electronic needs.
Frequently Asked Questions
Where can I buy XP POWER VEL18US120USJA?
You can click on the BUY or RFQ button to purchase VEL18US120USJA from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part VEL18US120USJA?
You can download the VEL18US120USJA datasheet or visit the XP POWER website for support.
Who is the manufacturer of VEL18US120USJA?
XP POWER
