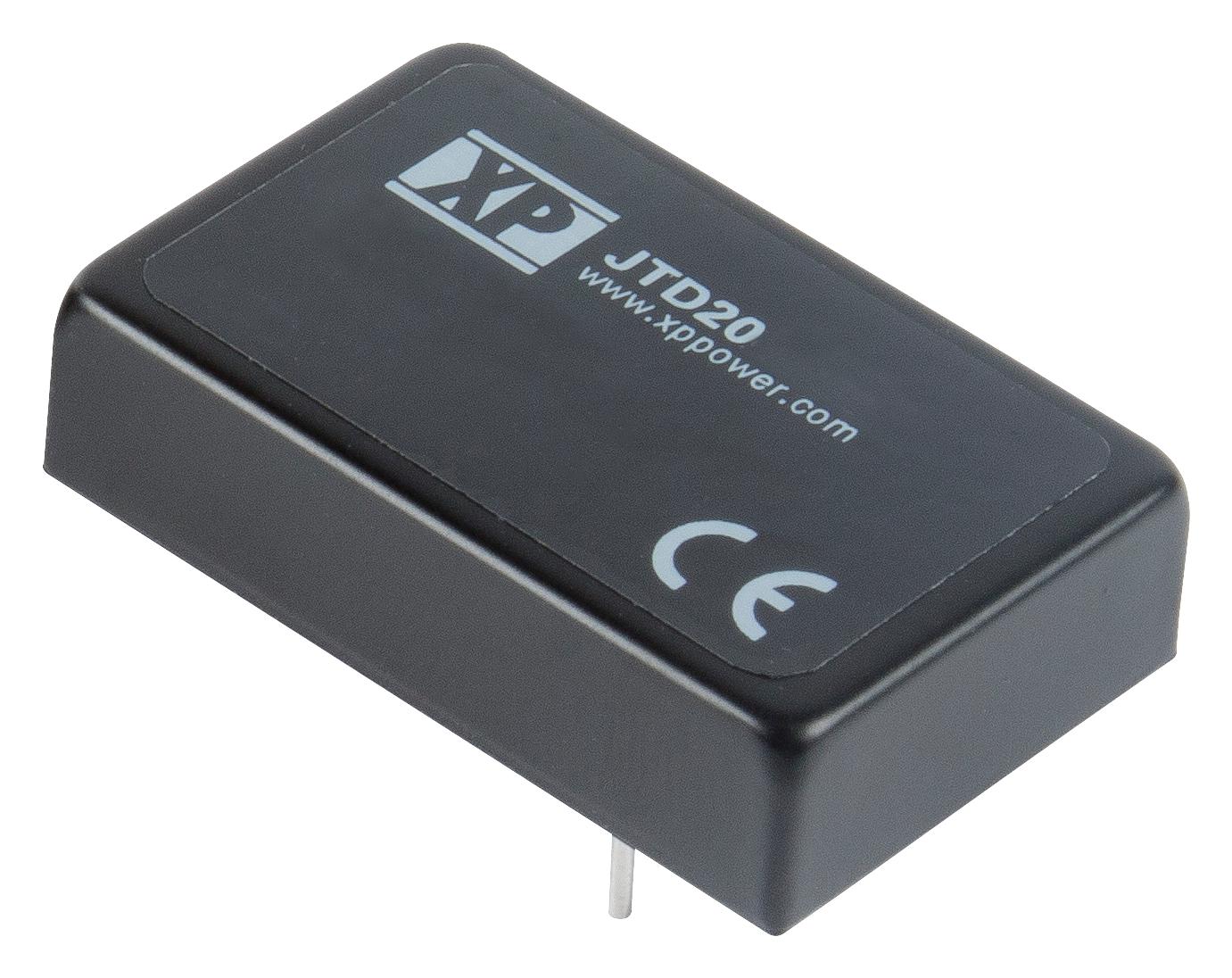

XP POWER JTD2024D15 DC-DC Converter
The JTD20 series of 20W DC-DC converters features a compact metal case measuring approximately 1.6 inches by 1 inch by 0.41 inches (40.6mm x 25.4mm x 10.4mm). Designed to support both single and dual outputs, these converters offer an ultra-wide 4:1 input voltage range from 9V to 36V or 18V to 75V. They operate reliably from -40°C to 100°C, deliver full load at 65°C ambient, and feature 3000VDC isolation, output voltage trim of ±10%, and remote ON/OFF control, making them ideal for industrial power management applications.
XP POWER JTD2024D15 DC-DC Converter Specifications:
- Power: 20 Watts
- Input Voltage Range: 9V-36V or 18V-75V DC
- Input Surge Voltage: Up to 75 V
- Output Power: Up to 20W
- Output Voltage: Adjustable with trim ±10%
- Output Current: Up to 1.6A (typical depending on model)
- Isolation Voltage: 3000 VDC
- Operating Temperature: -40°C to +100°C
- Full Load at 65°C ambient temperature
- Dimensions: 1.6 x 1.0 x 0.41 inches (40.6 x 25.4 x 10.4 mm)
- Case Material: Metal
- Efficiency: Approximately 89-91%
- Remote On/Off: Yes
- Full load at 65°C ambient, short circuit protection
- Certifications: UL, cUL, CE
Buy the XP Power JTD2024D15 – Reliable DC-DC Converter for Industrial Applications
Order the XP Power JTD2024D15 DC-DC converter online today and ensure efficient power conversion in your industrial applications. Its compact design, wide input voltage range, high isolation voltage, output trim, and remote on/off make it an ideal choice for reliable power management. With full load capability at 65°C ambient and robust safety certifications, this converter guarantees performance in demanding environments. Purchase online now to benefit from fast delivery, expert support, and quality assurance for your industrial or automation projects.
Buy XP Power JTD2024D15 now and experience unmatched reliability and performance for your power management needs.
Frequently Asked Questions
Where can I buy XP POWER JTD2024D15?
You can click on the BUY or RFQ button to purchase JTD2024D15 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part JTD2024D15?
You can download the JTD2024D15 datasheet or visit the XP POWER website for support.
Who is the manufacturer of JTD2024D15?
XP POWER
