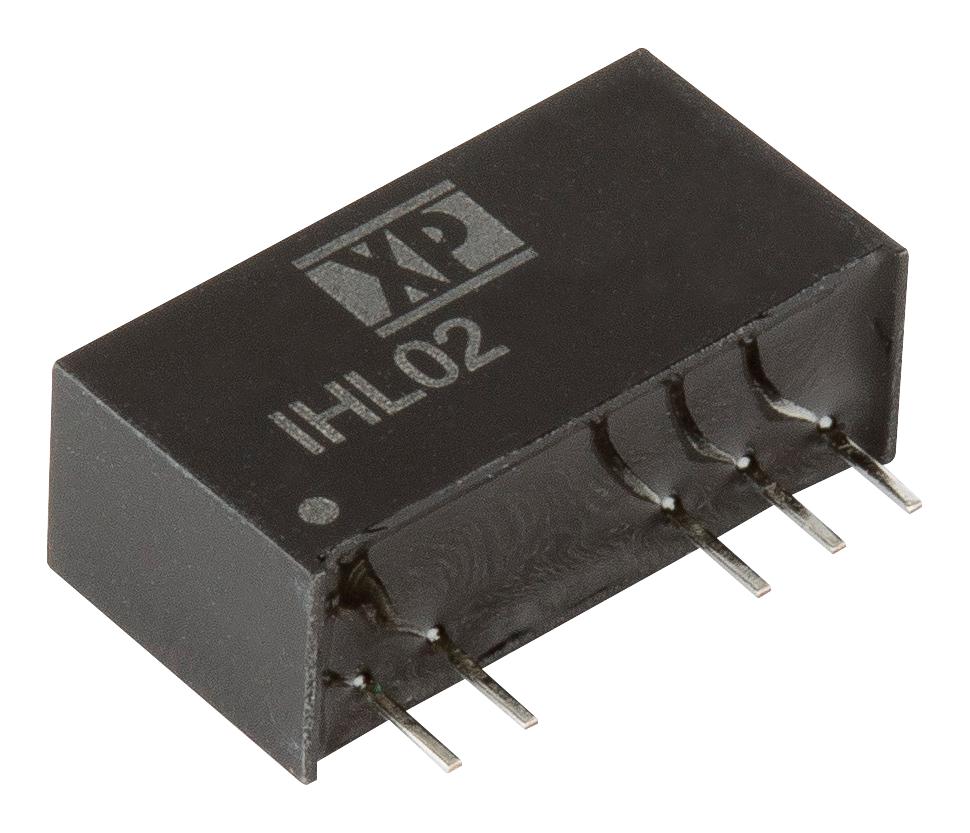

XP POWER IHL0224S3V3 DC-DC Converter
The IHL02 series is a 2W DC to DC converter with dual bipolar outputs, suitable for MOSFET and IGBT drive applications. It features a 7-pin SIP package, high isolation of 5200VDC, and a working voltage of 250VAC. The converter supports both single and dual outputs, has continuous short circuit protection, and operates reliably across temperatures from -40°C to 95°C, full load at 65°C ambient. With excellent transient immunity and compact design, it is ideal for power management and industrial automation uses.
XP POWER IHL0224S3V3 DC-DC Converter Specifications:
- Power: 2 Watts
- Isolation: 5200VDC functional, 250VAC working voltage
- Package: SIP7, 19.5 x 7.2 x 10.0 mm
- Input Voltage Range: 10.8-16.5V, 13.5-16.5V nominal
- Output Voltage: 3.3V to 30V, see models
- Output Current: up to 72V nominal input for various models
- Efficiency: up to 80%
- Operating Temperature: -40°C to +95°C, full load at 65°C
- Short Circuit Protection: Continuous, auto-recovery
- Isolation Resistance: 10Ω
- Switching Frequency: 50-100 kHz
- Case Material: Non-conductive UL94V-0 plastic
- Weight: 0.006 lbs (2.7 g)
- Certifications: CE, UKCA, complying with safety standards
- CMTI: 20 kV/μs
Buy the XP Power IHL0224S3V3 – Reliable DC-DC Converter for Industrial Applications
Purchase the XP Power IHL0224S3V3 DC-DC converter online now to benefit from its high isolation, bipolar outputs, and excellent thermal performance. Its compact SIP package makes it ideal for industrial automation, power supplies, and motor driver applications. With full load operation at 65°C, continuous short circuit protection, and a wide operating temperature range of -40°C to 95°C, this converter ensures reliable performance in demanding environments. Order today for quick delivery and optimal power management solutions.
Get XP Power IHL0224S3V3 today—built for precision, high isolation, and long-lasting durability in power management systems.
