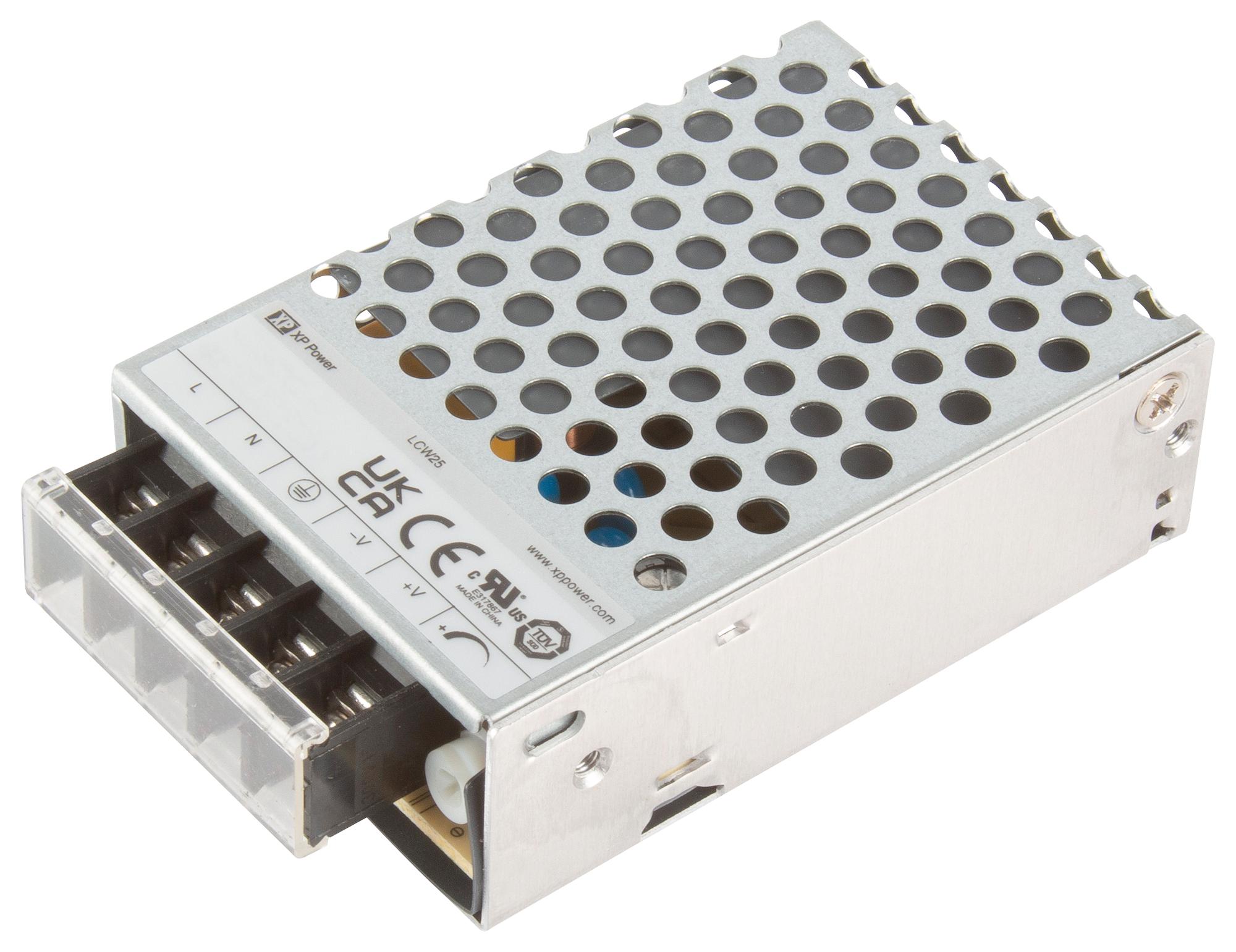

XP POWER LCW25US48 Industrial Power Supply
The LCW25 series regulated output power supplies are convection-cooled AC to DC units designed for industrial and electronic applications. They feature a wide AC input range of 85-305VAC, adjustable output voltage, low standby power consumption, and comprehensive protection including short circuit, overcurrent, overload, and overvoltage protections. These 25W power supplies are certified by UL, EN, CE, and UKCA, and are suitable for auxiliary power, security systems, lighting control, smart home and office automation, as well as ticketing and vending systems. Additional features include an integrated connector cover, Class B emissions, a switching frequency of 65kHz, 88% efficiency, optional conformal coating, and operation over a temperature range of -30°C to +70°C. The units come with a 3-year warranty, an aluminum chassis with vented galvanized steel cover, and dimensions of 3.70” x 2.17” x 0.98” (94 x 55 x 25mm).
XP POWER LCW25US48 Industrial Power Supply Specifications:
- Input Voltage: 85-305VAC, 50/60Hz, Derates at low voltage
- Output Power: 25W, regulated, adjustable +10%
- Output Voltage Range: 3.3V to 52.8VDC depending on model
- Efficiency: Up to 88%
- Dimensions: 3.70” x 2.17” x 0.98” (94 x 55 x 25mm)
- Operating Temperature: -30°C to +70°C
- Protection: Short circuit, overvoltage, overload, overcurrent, hiccup auto-recovery
- Certifications: UL, EN, CE, UKCA
- Switching Frequency: 65kHz
- Isolation: Input to Output 4000VAC
- Cooling: Natural convection
- Enclosure: Aluminum chassis with galvanized steel cover
- Environmental: Humidity 5-90%RH, altitude up to 5000m, conformal coating option
- Warranty: 3 years
Buy the XP Power Series LCW25 25W Convection AC-DC Power Supply: LCW25US48
Discover the high-quality XP Power Series LCW25 25W power supply, perfect for industrial and electronics applications. With wide input voltage, adjustable output, and comprehensive protections, it's designed for reliable operation in demanding environments. Certified by UL, EN, CE, and UKCA, it features up to 88% efficiency, a compact size of 3.70” x 2.17” x 0.98”, and an operating temperature from -30°C to +70°C. Suitable for automation, security, lighting, and vending, this power supply ensures stability and safety for your critical systems. Buy online today for dependable performance and peace of mind.
Order your XP Power Series LCW25US48 25W convection-cooled power supply today and ensure reliable, efficient power for your industrial and electronic projects.
