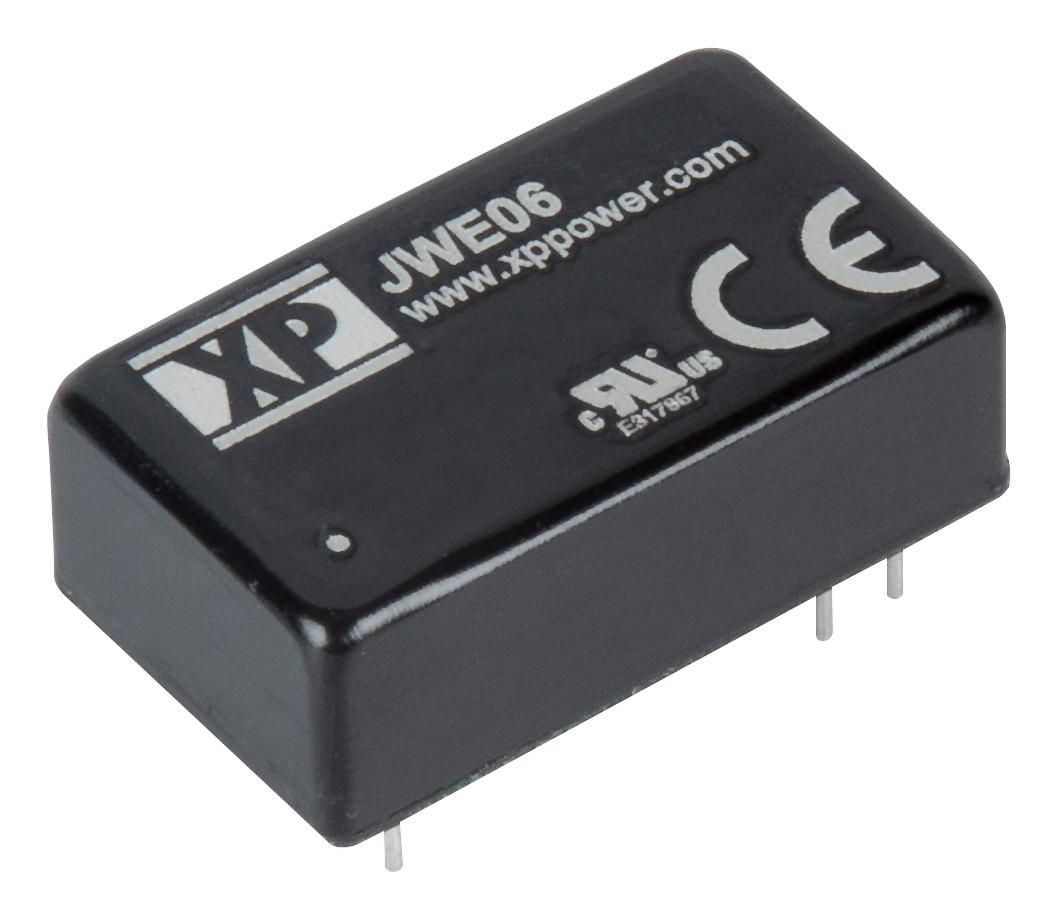

XP POWER JWE0624S15 DC-DC Converter
The JWE06 series is a compact 6W DC-DC converter offering high power density, UL 94V-0 metal case, and regulated outputs at 3.3V, 5V, 12V, 15V, and 24V. Suitable for industrial and automation applications, it features an ultra-wide input voltage range of 9-36V for 24V models and 18-75V for 48V models, with an isolation of 1500VDC. The module supports operating temperatures from -40°C to 105°C, with derating starting at 70-75°C. It complies with EN55022 Class A emissions, ensuring reliable performance in demanding environments, and is equipped with ITE safety approvals for power management and control systems.
XP POWER JWE0624S15 DC-DC Converter Specifications:
- Power Rating: 6 Watts
- Input Voltage Range: 9.0V to 36V (24V nominal), 18V to 75V (48V nominal)
- Output Voltages: 3.3V, 5V, 12V, 15V, 24V, and dual outputs of ±12V, ±15V
- Output Power: Up to 6W with regulation within ±0.5%
- Isolation Voltage: 1500VDC
- Operating Temperature: -40°C to +105°C, derating at 70-75°C
- Case Size: 0.94 x 0.54 x 0.31 inches (23.8 x 13.7 x 8 mm)
- Enclosure: UL 94V-0 rated metal case
- Efficiency: Up to 87–88%
- Switching Frequency: Approximately 370 kHz
- Compliance: EN55022 Class A conducted emissions, ITE safety approvals
- Protection: Overload and short circuit with auto-recovery
- Weight: 6.1 grams
Buy the XP Power Series JWE06 6W DC-DC Converter: JWE0624S15
Purchase the XP Power Series JWE06 high-density 6W DC-DC converter online today and ensure reliable, efficient power with ultra-wide input voltage range, high isolation, and industrial safety approvals. Its compact design and regulated outputs make it ideal for industrial automation, medical equipment, and control systems. With excellent thermal performance operating from -40°C to +105°C, and compliance with emission standards, this module guarantees dependable operation in harsh environments. Shop now to upgrade your power management solutions with trusted quality and proven performance.
Order your XP Power Series JWE06 6W DC-DC Converter today and give your projects the dependable quality they deserve for reliable power management.
Frequently Asked Questions
Where can I buy XP POWER JWE0624S15?
You can click on the BUY or RFQ button to purchase JWE0624S15 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part JWE0624S15?
You can download the JWE0624S15 datasheet or visit the XP POWER website for support.
Who is the manufacturer of JWE0624S15?
XP POWER
