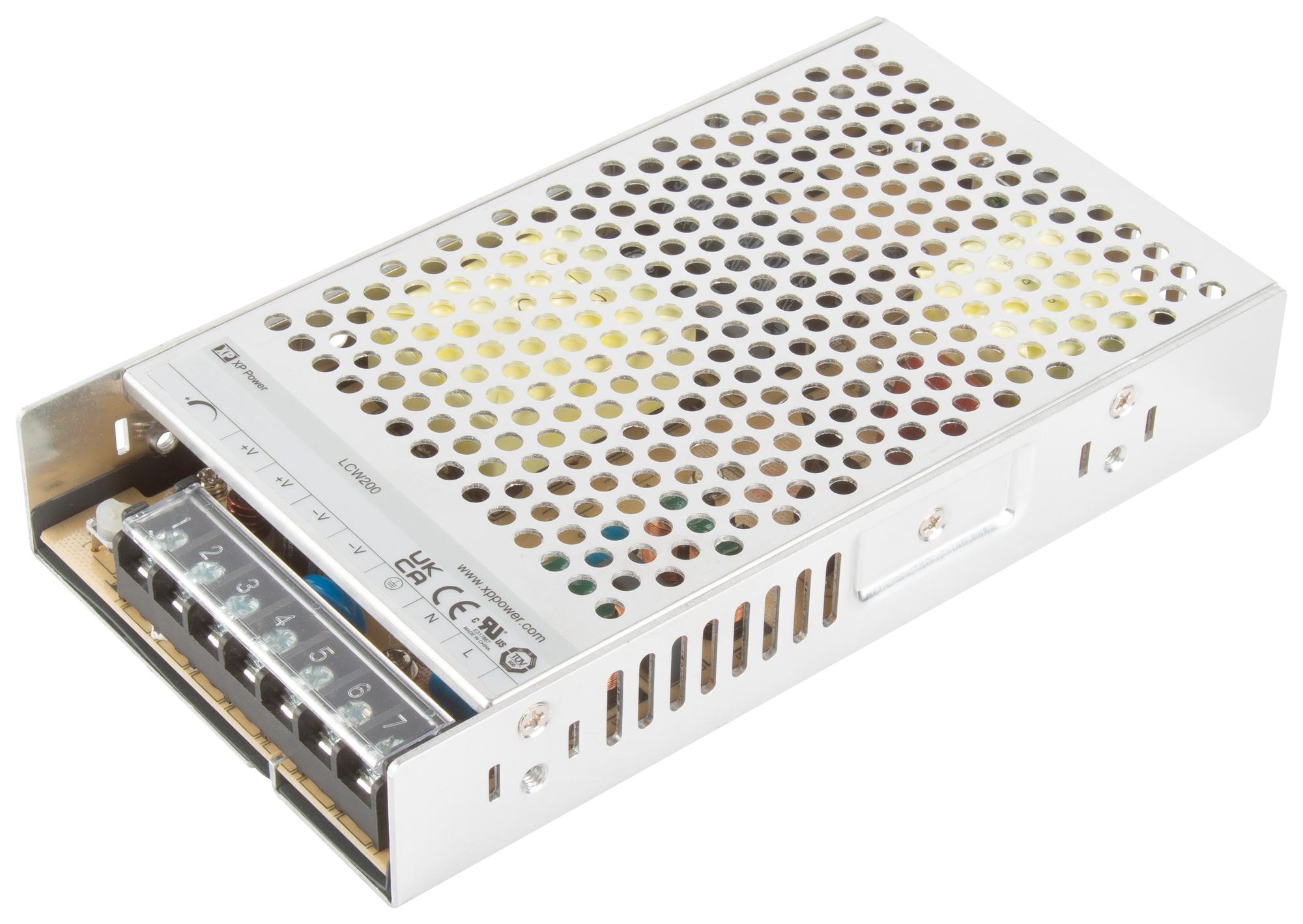

XP POWER LCW200PS05 Power Supply
The LCW200 series regulated output convection-cooled AC to DC power supplies deliver 200W of power for industrial electronics and automation applications. They feature a wide input voltage range of 85-305VAC, active power factor correction (PFC), output voltage adjustment, and low standby power consumption. The power supplies include protections for short circuits, overcurrent, overload, and overvoltage conditions. Suitable for auxiliary power, security systems, lighting control, smart home or office automation, and vending applications. They are certified by UL, EN, CE, and UKCA, with features like integrated connector covers, Class B emissions, switching frequency of 65kHz, 85% efficiency, a conformal coating option, and operating temperature from -30°C to +70°C. Housed in an aluminum chassis with vented galvanized steel cover, they come with a 3-year warranty and dimensions of 8.46 inches x 4.53 inches x 1.18 inches.
XP POWER LCW200PS05 Power Supply Specifications:
- Power Output: 200W
- Input Voltage Range: 85-305VAC
- Input Frequency: 50/60Hz
- Efficiency: up to 90%
- Output Voltage Adjustment: yes
- Ripple & Noise: 150mV pk to pk
- Protection: Short circuit, overvoltage, overload
- Temperature Range: -30°C to +70°C
- Cooling: Natural convection
- Dimensions: 8.46 inches x 4.53 inches x 1.18 inches (215mm x 115mm x 30mm)
- Certifications: UL, EN, CE, UKCA
- Switching Frequency: 65 kHz
- Housing: Aluminum chassis with vented galvanized steel cover
- Warranty: 3 years
Buy the XP Power Series LCW200 200W Convection Cooled Power Supply: LCW200PS05
Purchase the XP Power LCW200PS05 online today to ensure your industrial electronics and automation systems are powered reliably. With 200W output, wide input voltage range, active PFC, and protections against short circuit, overvoltage, and overload, this convection-cooled power supply guarantees stable operation in challenging environments. Its certifications include UL and CE, reflecting quality and safety standards. Designed for ease of installation with integrated connector covers and operating efficiently from -30°C to +70°C, it comes with a 3-year warranty, ensuring long-term peace of mind.
Buy XP Power LCW200PS05 now and experience unmatched reliability and performance with high efficiency and versatile protection features.
Frequently Asked Questions
Where can I buy XP POWER LCW200PS05?
You can click on the BUY or RFQ button to purchase LCW200PS05 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part LCW200PS05?
You can download the LCW200PS05 datasheet or visit the XP POWER website for support.
Who is the manufacturer of LCW200PS05?
XP POWER
