XP POWER JWL5048S24 industrial power supply
The JWL50 series offers a high-efficiency 50-watt power supply designed for industrial and power management applications. It features an ultra-wide 4:1 input voltage range, supporting inputs from 9V to 36V DC or 18V to 75V DC, with versatility for varying power source levels. The unit provides five single-output models, including 3.3V, 5V, 12V, 15V, and 24V, with adjustable voltages via external resistor, plus dual outputs of ±12V or ±15V. It complies with IEC 60950-1 and UL standards, features 1500VDC isolation, remote On/Off, and durable operation over -40°C to 105°C, with optional heatsink. Its compact 2x1 inch metal case makes it suitable for industrial and power control systems.
XP POWER JWL5048S24 industrial power supply Specifications:
- Power Output: 50 Watts
- Input Voltage Range: 9V-36V DC or 18V-75V DC
- Input Surge Voltage: 36V for 1 second
- Output Voltages: 3.3V, 5V, 12V, 15V, 24V (single), ±12V, ±15V (dual)
- Output Adjustment: ±10% via external resistor
- Efficiency: Up to 90%
- Isolation Voltage: 1500VDC
- Isolation Capacitance: 2200 pF
- Switching Frequency: 285 kHz
- Operating Temperature: -40°C to +105°C (derated above 69°C)
- Cooling: Natural convection
- Case Material: Black anodised aluminium with plastic base
- Dimensions: 2.00 x 1.00 x 0.43 inches (50.8 x 25.4 x 11.0 mm)
- Weight: Approx. 0.074 lbs (34.09 g)
- Safety Approvals: IEC 60950-1, UL/cUL 60950-1
- EMI Compliance: Class A conducted emissions with external filter
- Remote On/Off: Yes
- Optional Heatsink: Yes

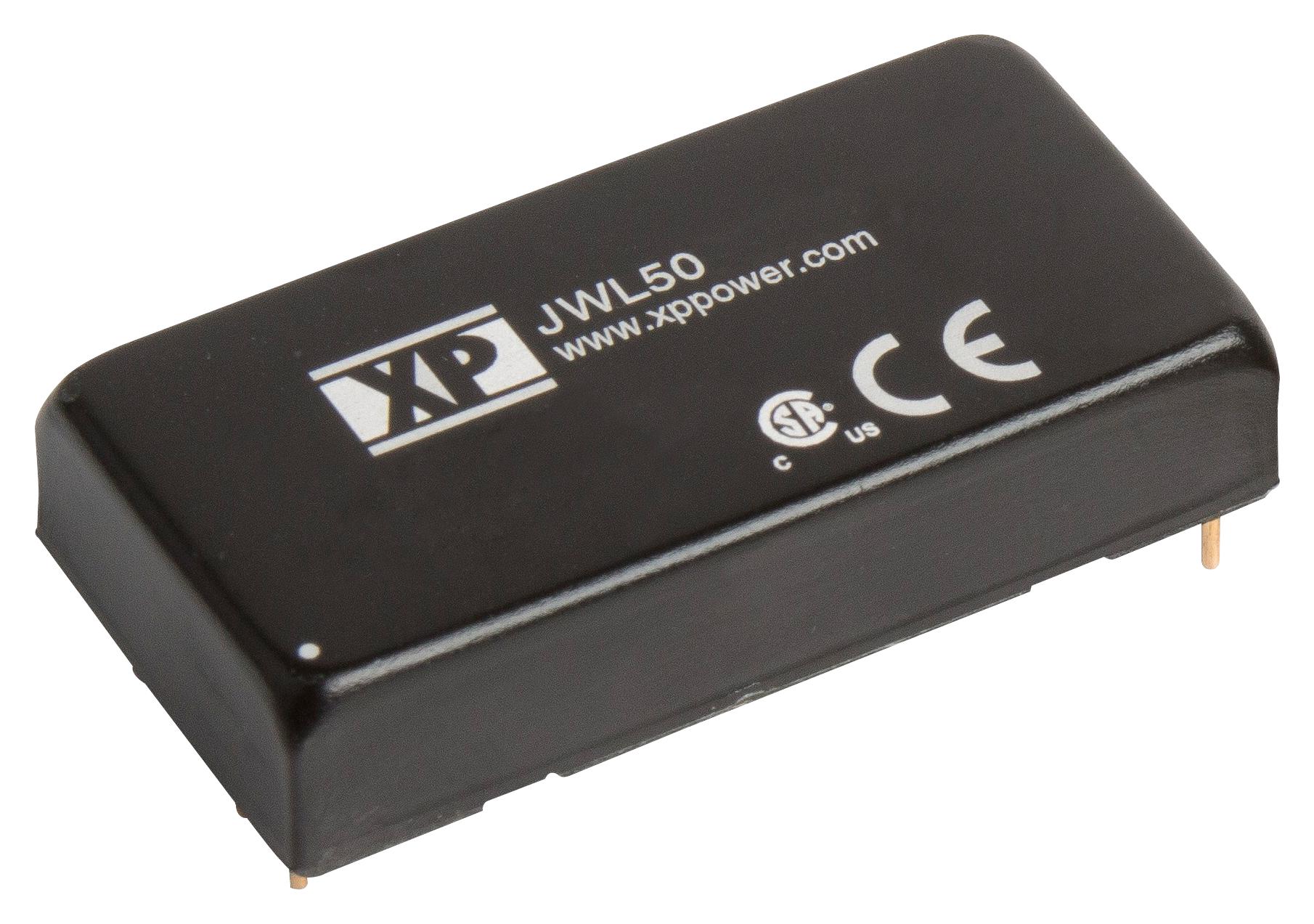

Buy the Buy XP Power JWL50 Power Supply Part Number JWL5048S24 Online
Experience reliable and efficient power conversion with the XP Power JWL50 series. This 50-watt industrial power supply offers a wide input range of 9V-36V or 18V-75V DC, making it adaptable for various power systems. With five adjustable single-output models and dual options, it provides flexible voltage regulation. Designed with 1500VDC isolation and a compact metal case, it ensures durability and safety for industrial environments. Order online now for fast delivery and dependable performance.
Buy XP Power JWL50 series power supply now and ensure reliable operation with versatile input voltage range, adjustable outputs, and high efficiency.
Frequently Asked Questions
Where can I buy XP POWER JWL5048S24?
You can click on the BUY or RFQ button to purchase JWL5048S24 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part JWL5048S24?
You can download the JWL5048S24 datasheet or visit the XP POWER website for support.
Who is the manufacturer of JWL5048S24?
XP POWER
