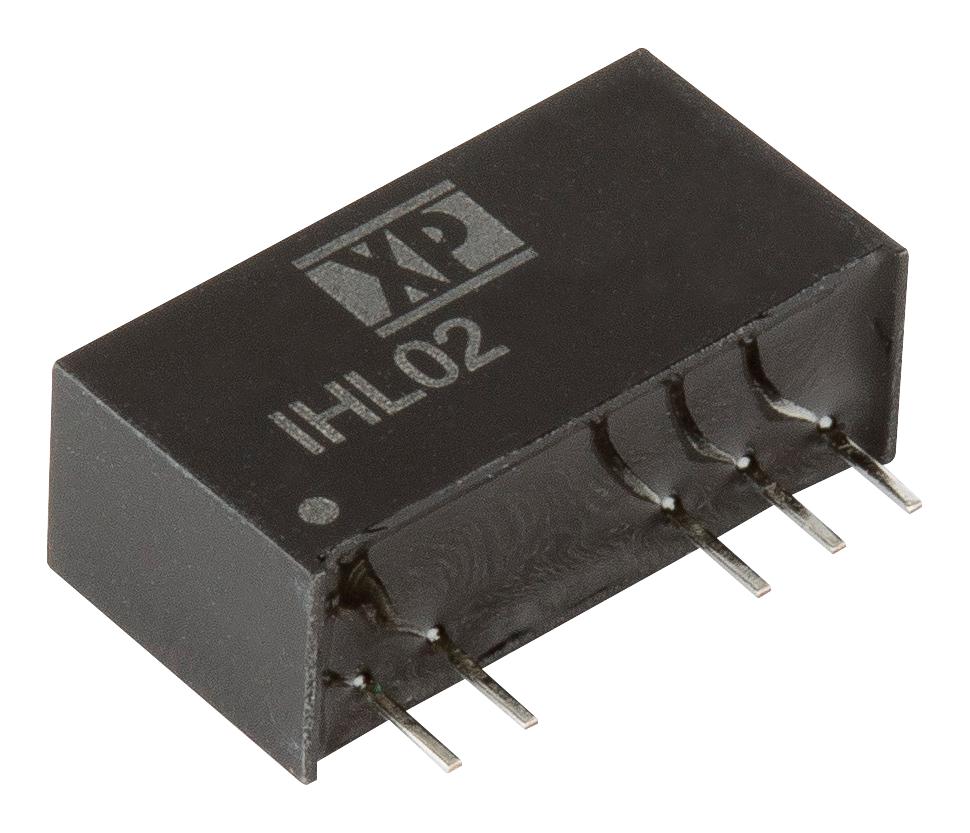

XP POWER IHL0212S12 DC-DC Converter
The IHL02 series is a 2-watt dual output DC-DC converter housed in a 7-pin SIP package. It provides bipolar outputs suitable for MOSFET and IGBT drive applications, with high isolation of 5200VDC and a working voltage of 250VAC. The converter supports both single and dual outputs, offers continuous short circuit protection, and operates reliably across temperatures from -40°C to 95°C. It is ideal for power management and industrial applications, capable of full load operation at 65°C ambient temperature.
XP POWER IHL0212S12 DC-DC Converter Specifications:
- Power: 2 Watts
- Isolation Voltage: 5200VDC, functional testing for 60 seconds
- Working Voltage: 250VAC, 400VDC
- Output Voltage: 3.3V to 30V (varies by model)
- Output Current: up to 72V nominal input with corresponding output current
- Input Voltage Range: 13.5V to 165V
- Temperature Range: -40°C to +95°C
- Humidity: 25% to 95% RH non-condensing
- Efficiency: up to 80%
- Switching Frequency: 50-100 kHz
- Case Material: Non-conductive UL94V-0 plastic
- Dimensions: 0.77 x 0.28 x 0.39 inches (19.5 x 7.2 x 10.0 mm)
- MTBF: 3.3 million hours
- Protection: Continuous short circuit, auto recovery
Buy the XP Power Series IHLO2 DC-DC Converter: IHL0212S12
Purchase the XP Power IHLO2 series DC-DC converter online now to ensure your power management systems are efficient, reliable, and safe. This high isolation, 2-watt module supports bipolar outputs and operates smoothly across a wide temperature range from -40°C to 95°C. Its compact SIP7 package, combined with features like continuous short circuit protection and high efficiency up to 80%, makes it ideal for industrial automation, motor drives, and power supply applications. Secure yours today for durable performance and optimal system integration.
Get XP Power IHLO2 series DC-DC converter today—high isolation and reliable power conversion for industrial and power management applications.
Frequently Asked Questions
Where can I buy XP POWER IHL0212S12?
You can click on the BUY or RFQ button to purchase IHL0212S12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part IHL0212S12?
You can download the IHL0212S12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of IHL0212S12?
XP POWER
