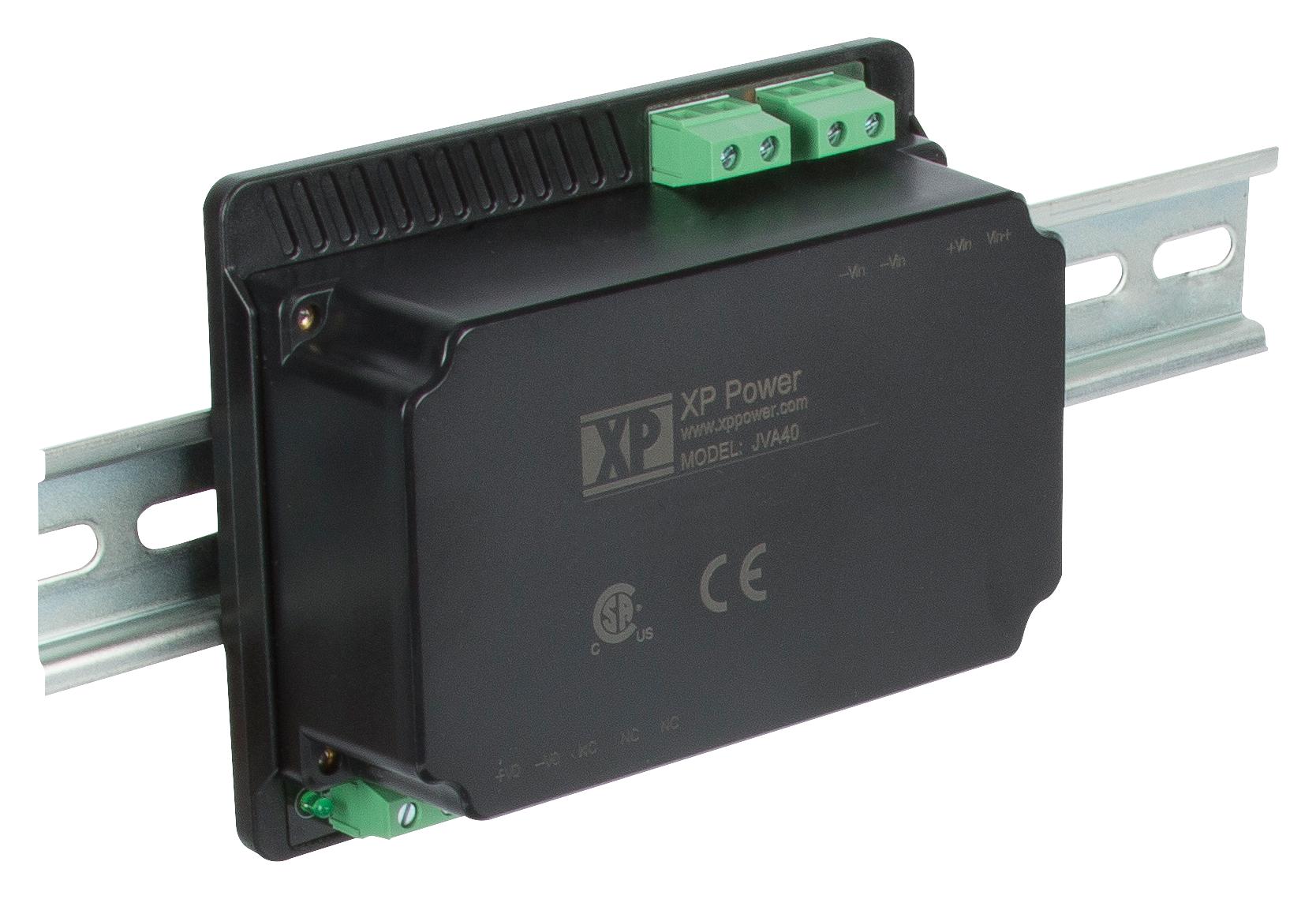

XP POWER JVA401500S12D DC-DC Converter
The JVA15 and JVA40 series are fully encapsulated DC-DC converters suited for renewable energy, EV, and industrial uses. They feature an ultra-wide DC input of 200V to 1500V, providing 10W, 15W, or 40W output options of 5V, 12V, 15V, or 24V. These compact modules have 4000VAC isolation for 60 seconds, with PCB and DIN rail mount versions, and optional built-in EMI filters and fuses. They operate from -40°C to 70°C, meet safety standards EN62109, UL1741, CSA, and comply with EMI limits, making them reliable for demanding applications.
XP POWER JVA401500S12D DC-DC Converter Specifications:
- Input Voltage Range: 200-1500 VDC, derates at higher voltages
- Output Power: 10W to 40W depending on model
- Output Voltage: 5V, 12V, 15V, 24V
- Isolation: 4000 VAC for 60 seconds
- Operating Temperature: -40°C to +70°C
- Dimensions: 92 x 2.95 x 1.57 inches (124.9 x 74.9 x 40.0 mm) for standard PCB mount, with DIN rail options available
- Mounting: PCB, optional DIN rail with or without EMI filter
- Efficiency: Approx. 72%
- Shock & Vibration: Conforms to EN60068-2 standards
- Safety & EMI: Complies with EN62109, UL1741, CSA-C22.2 No. 107-1, EN55022 Class A
- Additional features: Remote On/Off, minimal ripple and noise, built-in protection features
Buy the Buy XP Power JVA15 Series DC-DC Converter Part Number JVA401500S12D Online
Purchase the XP Power JVA15 Series DC-DC Converter online today to ensure your renewable energy and industrial projects are powered by reliable, high-quality voltage regulation modules. With ultra-wide input range of 200V to 1500V DC, they deliver stable outputs with 4000VAC isolation. Available in PCB mount and DIN rail versions, these modules support operating temperatures from -40°C to 70°C and meet key safety standards. Secure your supply chain and trust in proven performance for demanding applications by ordering online now.
Order your XP Power JVA15 Series JVA401500S12D today and get a reliable, high-isolation DC-DC module perfect for renewable energy and industrial projects.
Frequently Asked Questions
Where can I buy XP POWER JVA401500S12D?
You can click on the BUY or RFQ button to purchase JVA401500S12D from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part JVA401500S12D?
You can download the JVA401500S12D datasheet or visit the XP POWER website for support.
Who is the manufacturer of JVA401500S12D?
XP POWER
