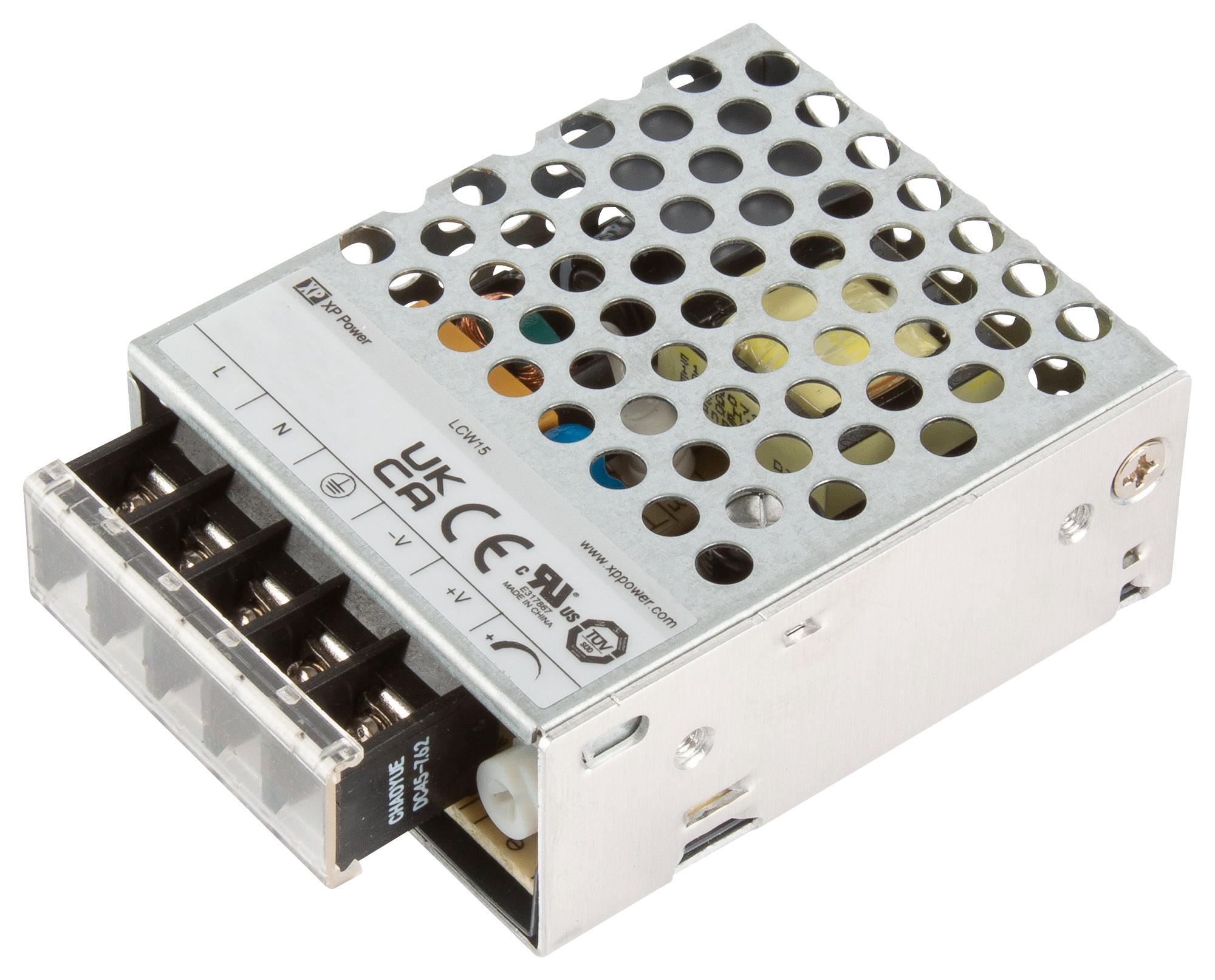

XP POWER LCW15US24 Power Supply
The LCW15 series regulated AC to DC power supplies are convection-cooled and designed for industrial electronics and technology applications. They feature a wide input voltage range of 85-305VAC, output voltage adjustment within ±10%, and operate at a switching frequency of 65kHz with an efficiency of 83%. These 15W power supplies include built-in safety features such as short circuit, overcurrent, overload, and overvoltage protection. They are certified by UL 62368-1, EN 62368-1, CE, and UKCA, and are suitable for use in auxiliary power sources, security systems, lighting control, smart home or office systems, and vending applications. The units include an integrated connector cover, conformal coating options, and are constructed with an aluminum chassis and vented galvanized steel cover, operating reliably within an ambient temperature range of -30°C to +70°C. They come with a 3-year warranty and measure approximately 78 x 55 x 25 mm.
XP POWER LCW15US24 Power Supply Specifications:
- Input Voltage: 85-305VAC
- Output Power: 15W
- Output Voltage Adjustment Range: ±10%
- Output Voltages Available: 3.3V, 5V, 12V, 15V, 24V, 48V
- Efficiency: Up to 83%
- Switching Frequency: 65kHz
- Dimensions: 78 x 55 x 25 mm
- Operating Temperature: -30°C to +70°C
- Protection: Short circuit, overcurrent, overload, overvoltage
- Certifications: UL 62368-1, EN 62368-1, CE, UKCA
- Construction: Aluminum chassis, galvanized steel cover
- Cooling Method: Natural convection
- Humidity Range: 5-90%RH non-condensing
- Maximum Altitude: 5000 m
- Warranty: 3 years
Buy the XP Power Series LCW15 15W Convection Power Supply: LCW15US24
Purchase the XP Power LCW15US24 power supply online today—the ideal choice for industrial electronics and automation projects. This 15W convection-cooled unit features wide input voltage compatibility from 85-305VAC, adjustable output voltage within ±10%, and peak efficiency of 83%. It provides reliable protection against short circuits, overcurrents, overloads, and overvoltage conditions. Certified by UL, EN, CE, and UKCA standards, it is built with an aluminum chassis, vented steel cover, and optional conformal coating. Its compact size measures approximately 78 x 55 x 25 mm, operates reliably between -30°C and +70°C, and comes with a 3-year warranty—order now for robust industrial power solutions.
Get XP Power LCW15US24 today—built for industrial reliability and long-lasting durability in automation systems and security applications.
Frequently Asked Questions
Where can I buy XP POWER LCW15US24?
You can click on the BUY or RFQ button to purchase LCW15US24 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part LCW15US24?
You can download the LCW15US24 datasheet or visit the XP POWER website for support.
Who is the manufacturer of LCW15US24?
XP POWER
