XP POWER DTJ2024S05D DC-DC Converter
The DTJ20 Toya is a regulated DC-DC converter offering 20 Watts power output, suitable for industrial applications. It features wide input voltage ranges from 9V to 36V or 8V to 75V, and provides single or dual outputs with voltages from 3.3V up to 30V. The compact chassis-mounted design includes optional DIN rail clips and heatsinks, with safety approvals such as UL62368-1. It offers features like remote on/off, voltage trim, 3kVDC isolation, overload and short circuit protection, operating temperature from -40°C to +100°C, and high efficiency up to 89%. Its robust construction ensures long-term durability under varied conditions.
XP POWER DTJ2024S05D DC-DC Converter Specifications:
- Input Voltage Range: 9V to 36V DC or 8V75V DC, depending on the model
- Output Power: 20 Watts
- Output Voltage: 3.3V to 30V with adjustable options
- Output Current: up to 350A for 3.3V output, varies per model
- Efficiency: Up to 89%
- Isolation Voltage: 3000V DC for 60 seconds
- Operating Temperature: -40°C to +100°C
- Cooling: Natural convection with optional heatsink
- Safety Standards: UL62368-1, EN55032 Class A compliance
- Dimensions: 3.00 x 1.24 x 0.77 inches (76.2 x 31.4 x 19.4 mm)
- Features: Remote on/off, voltage trim, short circuit protection, reverse polarity protection
- Construction: Non-conductive plastic case, optional aluminium heatsink
- Mounting: Chassis mount, DIN rail clip compatible
- Certifications: UL, CE, UKCA
- Temperature Coefficient: 0.02 %/°C
- Isolation Resistance: 1000 MΩ
- Input Surge: 50-100 VDC for 100 ms

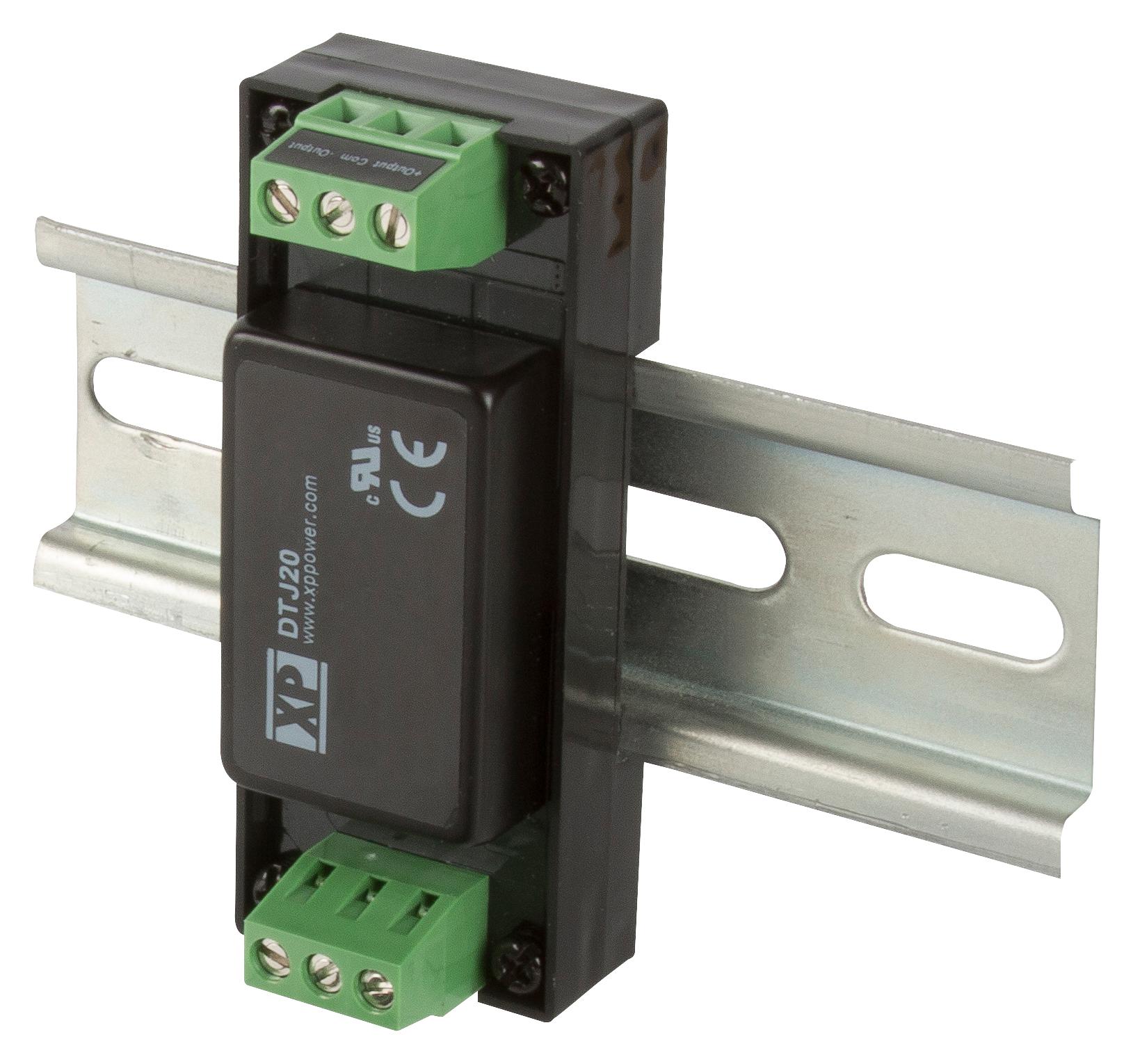

Buy the Buy XP Power DC-DC Converter Part Number DTJ2024S05D Online
Purchase the XP Power DTJ20 series DC-DC converter online and experience reliable power conversion for your industrial or commercial applications. With a compact chassis design, wide input voltage range, adjustable outputs from 3.3V to 30V, and extensive safety features like UL62368-1 compliance, this converter ensures long-term durability. Its high efficiency up to 89%, excellent thermal performance, and robust construction make it ideal for engineers seeking dependable power solutions. Order now and enhance your system’s performance with ease.
Get XP Power DTJ20 series DC-DC converter today—built for precision, high efficiency, and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy XP POWER DTJ2024S05D?
You can click on the BUY or RFQ button to purchase DTJ2024S05D from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part DTJ2024S05D?
You can download the DTJ2024S05D datasheet or visit the XP POWER website for support.
Who is the manufacturer of DTJ2024S05D?
XP POWER
