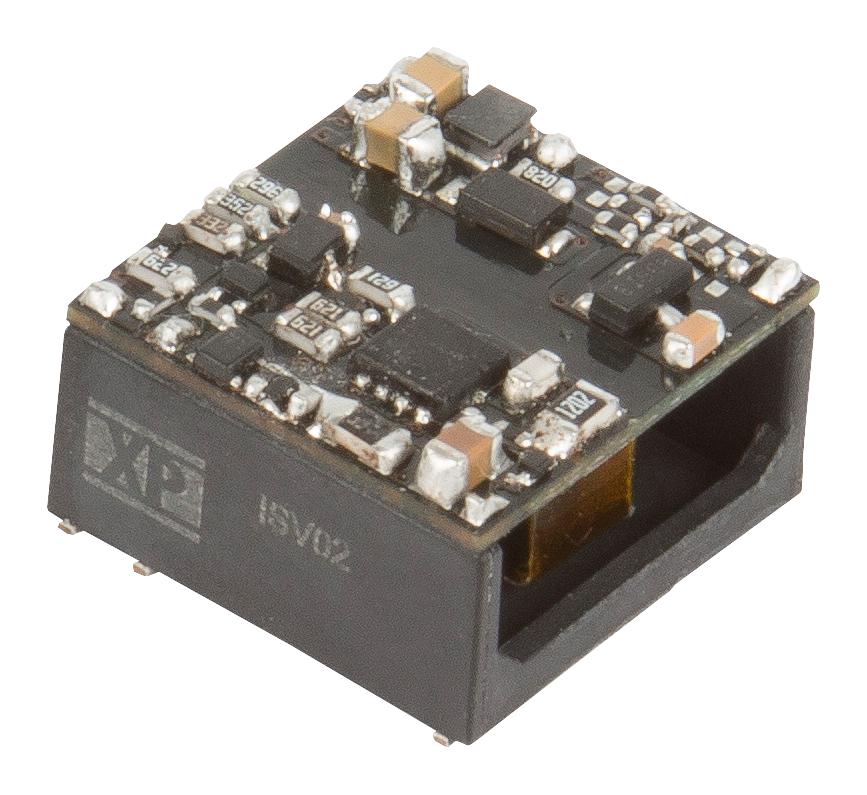

XP POWER ISV0224S12 DC-DC Converter
The ISV02 series is a compact surface-mount DC-DC converter with open-frame construction, offering high performance and cost-effective design. It provides 3.0 kV isolation, a 4:1 input voltage range, and operates reliably at temperatures up to 75°C. Features include remote on/off control, short circuit protection, and full load operation at ambient temperatures up to 75°C. Available in single or dual output configurations, these converters are ideal for signal conditioning and voltage matching applications. The product complies with Class A conducted emissions and is available in tape and reel packaging.
XP POWER ISV0224S12 DC-DC Converter Specifications:
- Output Power: 2 Watts
- Input Voltage Range: 9.0V to 36.0V
- Input Voltage Range (Min): 9.0V, (Max): 36.0V
- Isolation Voltage: 3.0kV
- Operating Temperature: -40°C to +75°C
- Full Power at 75°C
- Output Voltage: 5V, 12V, 24V, or 30V (dependent on model)
- Output Current: up to 0.33A (model dependent)
- Efficiency: Typically 80%
- Dimensions: Compact SMD package
- Isolation Resistance: 1% at 5000VDC
- Isolation Capacitance: 25 pF
- Vibration Tested to MIL-STD 810F Cat 24
- Case Material: Non-conductive black plastic, UL94V-0 rated
- Compliance: Class A conducted emissions, CE and UKCA approvals
- Protection: Short circuit, overload, and remote on/off control
- Package: Tape & reel available
Buy the Buy XP Power ISV0224S12 Part Number 24V 0.33A DC-DC Converter Online
Purchase the XP Power series 24V 0.33A DC-DC converter online now and enjoy quick delivery, secure checkout, and reliable power conversion. This high-performance, compact SMD device features 3.0kV isolation for safety, a wide 4:1 input voltage range for flexible applications, and operates reliably up to 75°C. Its rugged design with short circuit protection and remote on/off makes it suitable for signal conditioning, voltage matching, and industrial automation projects. Buy today to enhance your electronic systems with dependable, efficient power supplies.
Order your XP Power ISV0224S12 series 24V 0.33A DC-DC converter today and ensure reliable voltage regulation with high isolation and compact design.
Frequently Asked Questions
Where can I buy XP POWER ISV0224S12?
You can click on the BUY or RFQ button to purchase ISV0224S12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part ISV0224S12?
You can download the ISV0224S12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of ISV0224S12?
XP POWER
