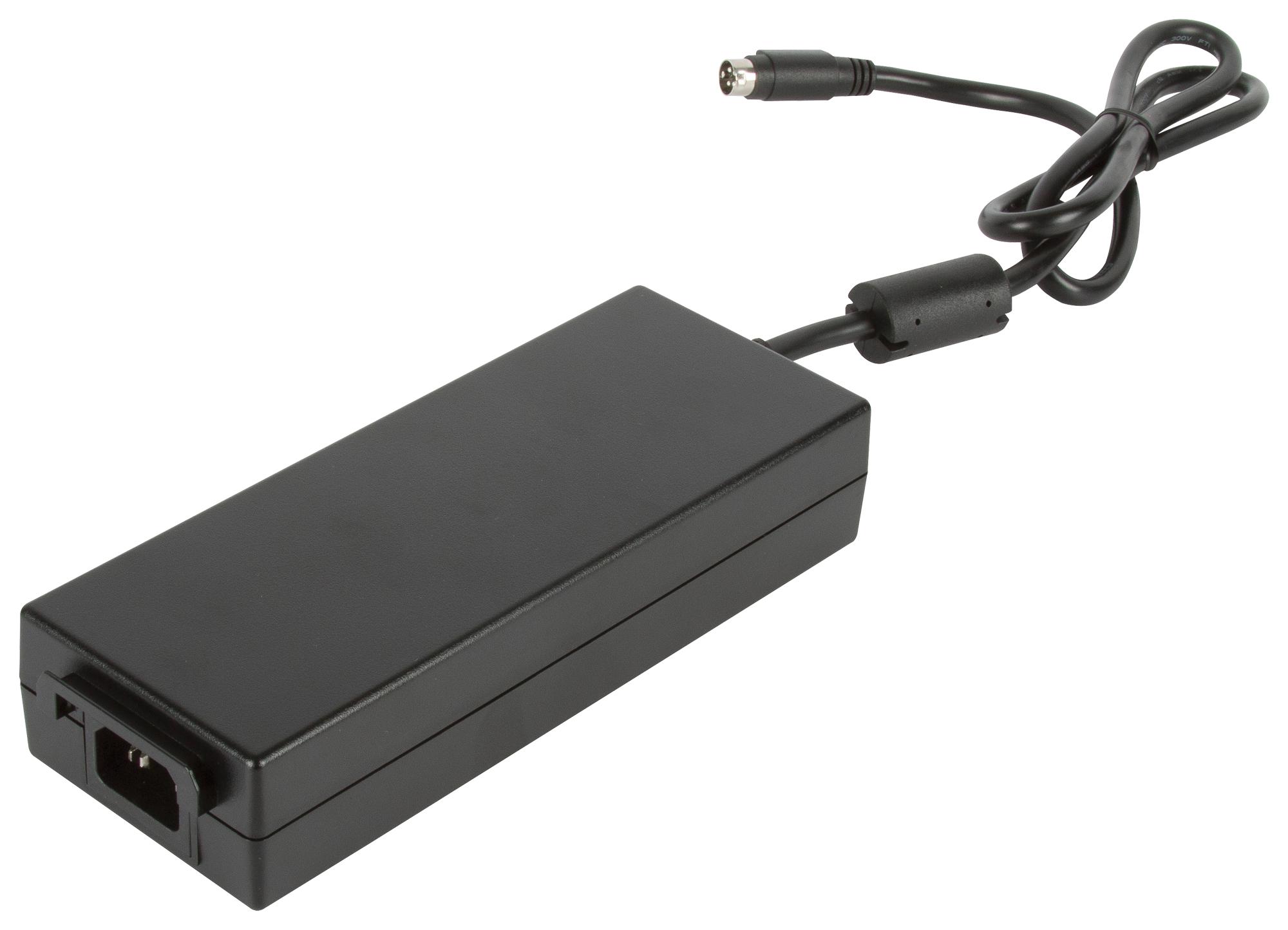

XP POWER ALM150PS24C28 Medical External Power Supply
The ALM150 series of medical external power supplies are fully compliant with international medical and IT safety standards. Designed with high efficiency and low standby power consumption, they meet the latest environmental regulations. The units feature a sealed enclosure with IP32 protection and a smooth surface finish for easy cleaning in clinical environments. These power supplies have an energy efficiency level VI rating and EU Code of Conduct Tier 2 compliance, with standby power below 0.15W. They operate within a temperature range of 0°C to 60°C, have low earth leakage current, and are constructed as Class II units. Dimensions are approximately 7.32 inches by 2.84 inches by 1.50 inches (186.0 mm x 72.0 mm x 38.0 mm). Suitable for medical applications.
XP POWER ALM150PS24C28 Medical External Power Supply Specifications:
- Power Output: 150 Watts
- Dimensions: 7.32 x 2.84 x 1.50 inches (186.0 x 72.0 x 38.0 mm)
- Input Voltage Range: 100-240 VAC, 50/60 Hz
- Output Voltage: 24 V (model specific)
- Output Current: 6.25 A
- Efficiency: >93%
- Standby Power: <0.15 W
- Protection Rating: IP32
- Operating Temperature: 0°C to 60°C
- Safety Approvals: Medical & IT safety standards
- Environmental Compliance: Level VI & EU CoC Tier 2
- Certifications: EN60601-1, CE, CCC, PSE, KC, ROM
- Isolation: Input to Output 4000 VAC, Input to Ground 1500 VAC (Class I), Output to Ground 500 VAC (Class I)
Buy the XP Power Series ALM150 External Power Supply: ALM150PS24C28
Secure your medical equipment’s power needs with the XP Power Series ALM150 External Power Supply. Featuring IP32 protection, high efficiency over 93%, and low standby power under 0.15W, it ensures compliance with global safety and environmental standards. Its compact design of approximately 7.32 inches by 2.84 inches by 1.50 inches makes it suitable for tight clinical setups. With certifications including EN60601-1 and CE, it guarantees safety, durability, and reliable performance for healthcare applications. Purchase online today for trusted performance.
Order your XP Power Series ALM150PS24C28 today and ensure reliable medical device operation with high efficiency and safety compliance.
Frequently Asked Questions
Where can I buy XP POWER ALM150PS24C28?
You can click on the BUY or RFQ button to purchase ALM150PS24C28 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part ALM150PS24C28?
You can download the ALM150PS24C28 datasheet or visit the XP POWER website for support.
Who is the manufacturer of ALM150PS24C28?
XP POWER
