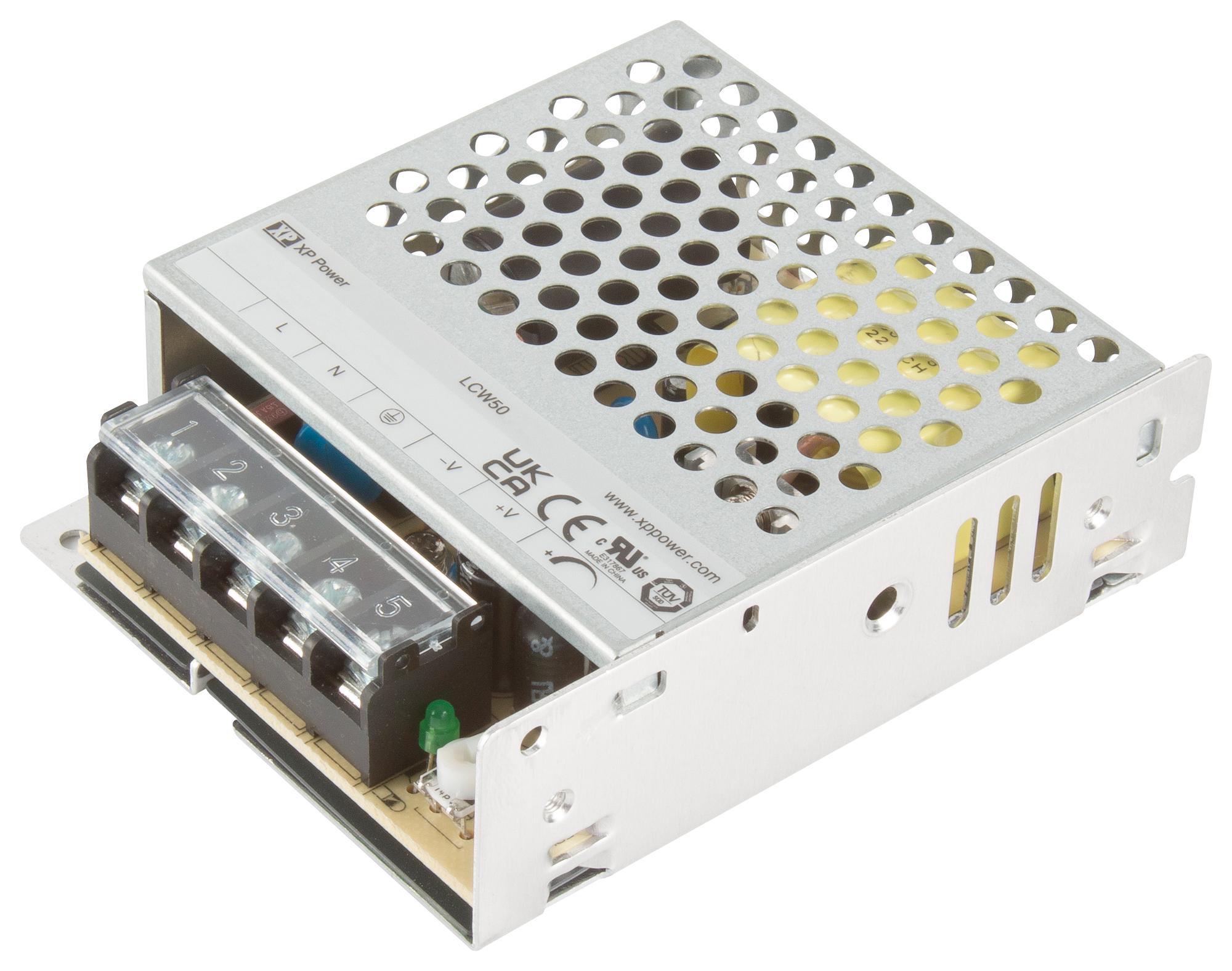

XP POWER LCW50US48 Industrial Power Supply
The LCW50 series is a 50W regulated output AC to DC power supply that is convection cooled, designed to deliver reliable power for industrial, technological, and household applications. It features a wide input voltage range of 85-305VAC, adjustable output voltage with a ±10% trim, and high efficiency of 90%. The power supply includes comprehensive protections such as short circuit, overcurrent, overvoltage, and overload. It is certified for industrial and household use with approvals including UL62368-1, EN62368-1, EN60335, EN61558, CE, and UKCA. Additional features include internal connector cover, conformal coating option, Class B emissions compliance, switching frequency of 65kHz, and an operating temperature range from -30°C to +70°C. The unit has a durable aluminum chassis with a vented galvanized steel cover, measures 3.898 x 3.228 x 1.181 inches (99 x 82 x 30 mm), and comes with a 3-year warranty.
XP POWER LCW50US48 Industrial Power Supply Specifications:
- Power: 50W
- Input Voltage Range: 85-305VAC
- Output Voltage: 5V/12V/15V/24V/36V/48V (adjustable ±10%)
- Efficiency: Up to 90%
- Ripple & Noise: 80–240mV pk to pk depending on model
- Operating Temperature: -30°C to +70°C
- Protection: Short circuit, overvoltage, overload
- Certifications: UL62368-1, EN62368-1, EN60335, EN61558, CE, UKCA
- Switching Frequency: 65kHz
- Case Material: Aluminum chassis with vented galvanized steel cover
- Conformal Coating Option: Yes, suffix -E
- Dimensions: 3.898 x 3.228 x 1.181 inches (99 x 82 x 30 mm)
- Certifications: Class B conducted & radiated emissions
- Warranty: 3 years
Buy the XP Power LCW50 Series – Reliable AC-DC Power Supply for Industrial Applications
Purchase the XP Power LCW50 series 50W regulated AC-DC power supply online today. Engineered for reliability and efficiency, this convection cooled unit offers a wide input voltage range of 85-305VAC, adjustable output voltage, and high efficiency up to 90%. Its protections include short circuit, overvoltage, and overload, making it ideal for industrial, household, and technological applications. With certifications for safety and emissions, robust aluminum chassis, conformal coating option, and a 3-year warranty, it provides dependable power solutions for critical systems.
Order your XP Power LCW50 series 48VDC power supply today and ensure your industrial or household systems operate with dependable, efficient power.
Frequently Asked Questions
Where can I buy XP POWER LCW50US48?
You can click on the BUY or RFQ button to purchase LCW50US48 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part LCW50US48?
You can download the LCW50US48 datasheet or visit the XP POWER website for support.
Who is the manufacturer of LCW50US48?
XP POWER
