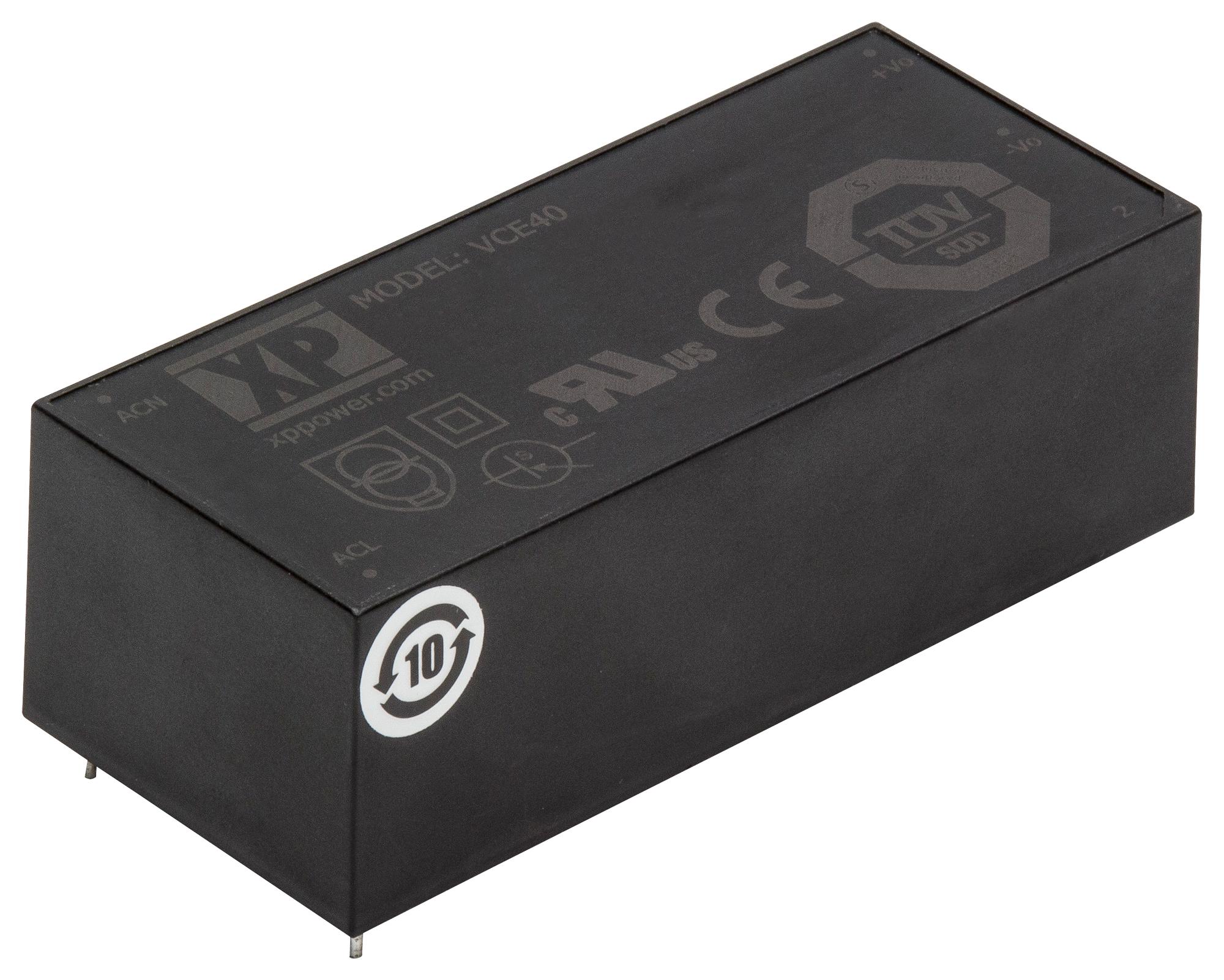

XP POWER VCE40US24 AC-DC Power Supply
The VCE40 series comprises low-cost, reliable AC-DC power supplies available in open frame and encapsulated configurations, suitable for industrial, household, and IT applications. Operating from 85 to 305VAC, they deliver single outputs from 3.3V to 48V DC. Certified for worldwide safety standards, including ITE and household approvals, these class II isolation supplies meet EN55035 immunity standards. Designed for easy system integration, these power supplies feature high efficiency, robust construction, and are ideal for diverse power conversion needs with compact dimensions and reliable performance.
XP POWER VCE40US24 AC-DC Power Supply Specifications:
- Input Voltage Range: 85 to 305 VAC, derates from 100% at 90 VAC to 90% at 85 VAC
- Output Power: 30W to 40W depending on model
- Output Voltage Range: 3.3V, 5V, 9V, 12V, 15V, 24V, 48V DC
- Efficiency: up to 85% (model dependent)
- Operating Temperature: -25°C to +70°C, derates at higher temps
- Input Frequency: 47-63 Hz
- Dimensions: Open frame version approximately 3.94 x 1.50 x 1.12 inches (87.9 x 38.1 x 28.5 mm); encapsulated approximately 3.46 x 1.50 x 1.12 inches (87.9 x 38.1 x 28.5 mm)
- Isolation Voltage: 3000 VAC input to output
- Line Regulation: 7%, Load Regulation: 2%
- Start-up Delay: 2-3 seconds
- Hold-up Time: 8 ms at full load and 115VAC
- Vibration & Shock: Compliant with IEC standards
- Certifications: IEC62368-1, IEC60335-1, UL62368-1, EN55035 immunity standards
- Switching Frequency: 5-6 kHz
- Weight: Open frame ~190 g (0.419 lbs), Encapsulated ~85 g (0.187 lbs)
Buy the Buy XP Power AC-DC Power Supply Part Number VCE40US24 Online
Discover the reliable and efficient VCE40 series AC-DC power supplies by XP Power, suitable for industrial, household, and IT applications. With certifications including IEC62368-1 and UL62368-1, these supplies offer single outputs from 3.3V to 48V DC, feature an input voltage range of 85-305VAC, and are designed for easy integration in various systems. Compact and robust, they meet international safety standards, provide high efficiency, and are ideal for low-cost, versatile power conversion in diverse environments. Order online today to ensure fast delivery and optimal performance.
Buy XP Power VCE40US24 now and experience unmatched reliability and performance in low-cost industrial and household power solutions.
