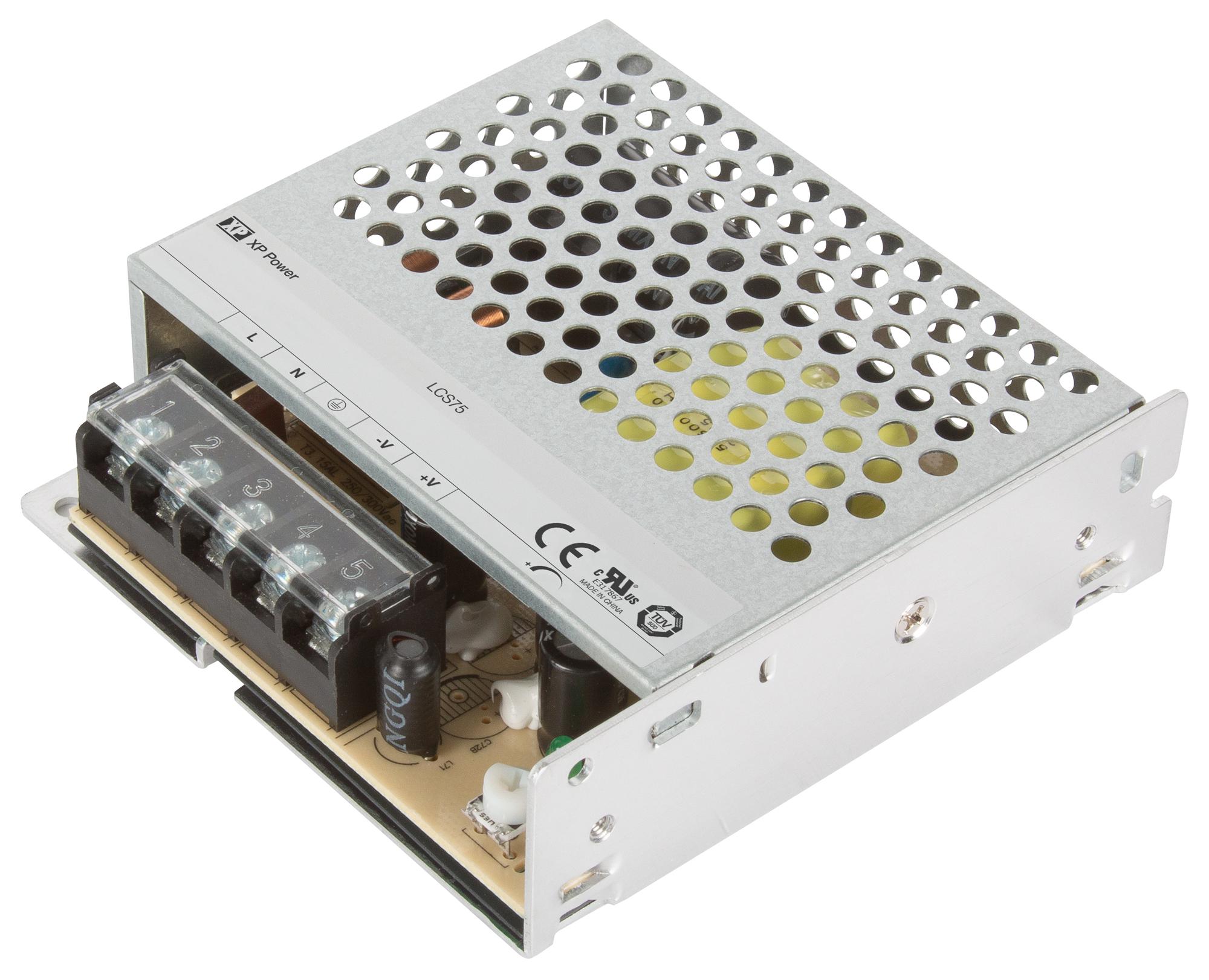

XP POWER LCS75US05 Power Supply
The LCS series of regulated, convection-cooled AC-DC power supplies offers a cost-effective solution for industrial electronics and technology applications. These 75W power supplies feature adjustable output voltage, a power indicator LED, low standby power consumption, and protections against short circuits, overcurrent, and overvoltage. Suitable for auxiliary power sources, security systems, lighting control, smart home or office systems, and vending or ticketing applications. They are approved for industrial, household, and ITE use, include an integrated connector cover, and meet Class B conducted and radiated emissions standards. Operating from 85-264VAC input with a 300VAC withstand voltage for 5 seconds, they function reliably from -30°C to +70°C and come with a 3-year warranty.
XP POWER LCS75US05 Power Supply Specifications:
- Input Voltage: 85-264VAC
- Surge Withstand: 300VAC for 5s
- Input Frequency: 47-50/60Hz
- Efficiency: Up to 91%
- Output Power: 75W
- Output Voltage Range: 5V to 48VDC
- Output Current: 14.08A at 5V, 6.0A at 12V, 5.0A at 15V, 3.28A at 24V, 24A at 36V, 1.64A at 48V
- Operating Temperature: -30°C to +70°C
- Dimensions: 3.89 inch x 3.82 inch x 1.18 inch (99.0mm x 97.0mm x 30.0mm)
- Protection: Short circuit, overvoltage, overload
- Emissions Certification: Class B conducted & radiated
- Connectivity: Integrated connector cover
- Compliance: Industrial, household, ITE approval
- Cooling: Natural convection
- Warranty: 3 years
Buy the XP Power LCS75US05 – Reliable 75W Power Supply for Industrial Applications
Experience the dependable performance of the XP Power LCS75US05 power supply, capable of delivering 75W with adjustable voltage from 5V to 48V, suitable for industrial, security, lighting, and automation systems. Features include protections against short circuits, overcurrent, and overvoltage, along with low standby power consumption. Certified for industrial, household, and ITE use, it offers high efficiency, compact dimensions, and a 3-year warranty. Easy to install with integrated connector cover and reliable operation over a wide temperature range from -30°C to +70°C.
Buy XP Power LCS75US05 now and experience unmatched reliability and performance in your industrial, security, or automation system.
Frequently Asked Questions
Where can I buy XP POWER LCS75US05?
You can click on the BUY or RFQ button to purchase LCS75US05 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part LCS75US05?
You can download the LCS75US05 datasheet or visit the XP POWER website for support.
Who is the manufacturer of LCS75US05?
XP POWER
