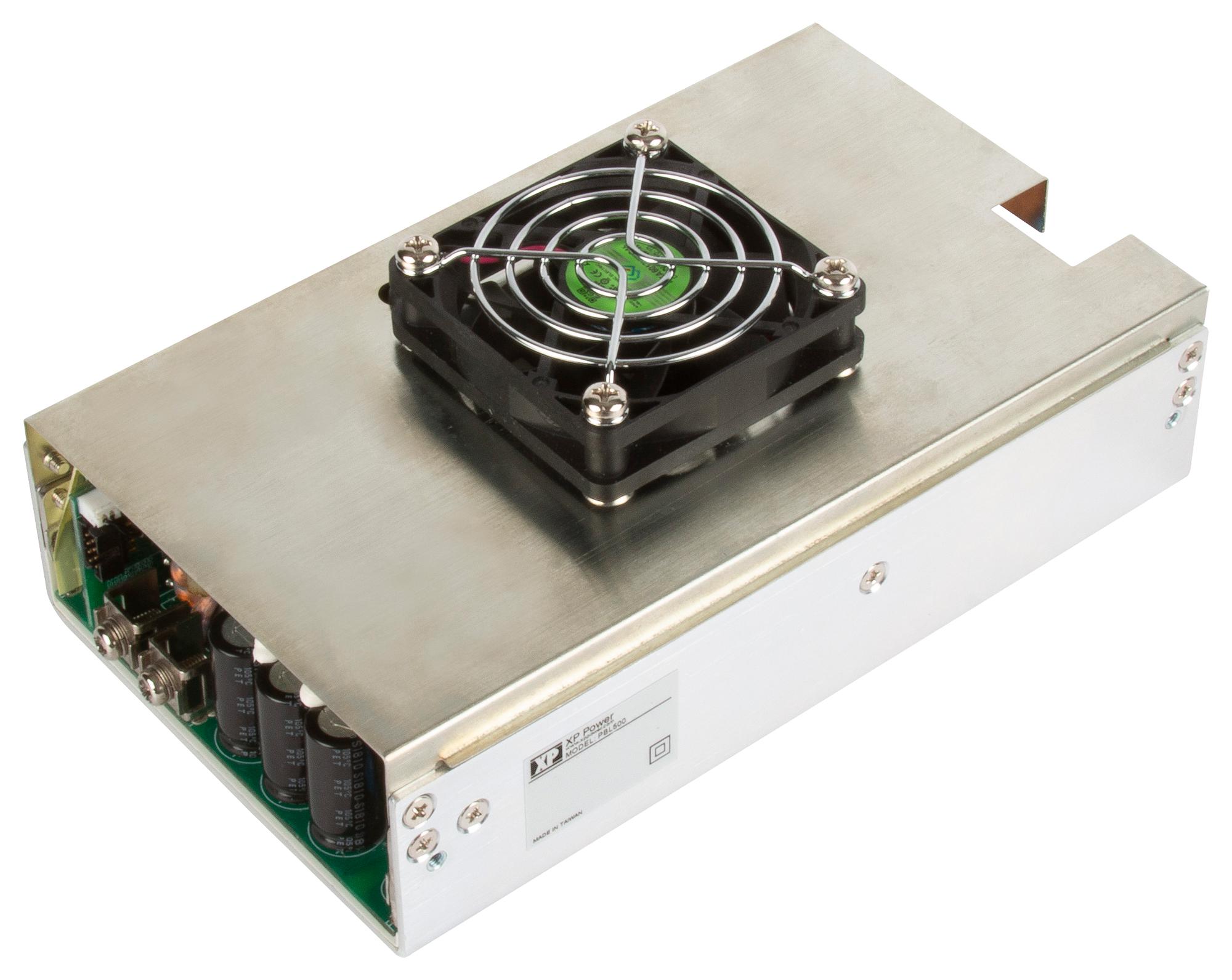

XP POWER PBL500PS48C High-Power AC-DC Power Supply
The PBL500 series is a high-capacity AC-DC power supply providing 450-500 watts of power with forced air cooling, designed for medical and industrial applications. Constructed on a U-channel for mechanical support and heat sinking, it offers options for convection cooling at 250W. It features multiple output voltages, internal protections, and complies with safety and emissions standards including BF rating for medical use. The unit operates efficiently up to 5000 meters altitude and includes features like remote sense, Power OK, inhibit, and a fan assembly for thermal management. Its compact design ensures reliable performance in demanding environments.
XP POWER PBL500PS48C High-Power AC-DC Power Supply Specifications:
- Input Voltage: 80-264 VAC
- Input Frequency: 63 Hz
- Input Current: 5.2/2.6 A at 115/230 VAC
- Output Power: 450-500 W with forced air cooling, 250 W convection cooled
- Output Voltage Range: 12V to 57V
- Ripple & Noise: 120-570 mV (varies by model)
- Efficiency: 90% at full load
- Isolation: input to case 4000 VAC, output to case 1500 VAC
- Cooling: Forced air or convection options
- Operating Temperature: -10°C to +70°C (derated above 50°C)
- Maximum Altitude: 5000 meters
- Safety Certifications: UL, EN60601-1 (medical level), CE, UKCA
- Emissions: Class B conducted & radiated
- Mechanical Size: 7.1 x 4.00 x 1.56 inches for standard, 7.1 x 4.00 x 2.64 inches for covered version
- Protection Features: Overvoltage, overcurrent, thermal shutdown
- Cooling: Included fan with temperature control
- Certifications & Standards: Compliant with safety and EMC standards
- Mounting: Threaded inserts for M3*0.5 or #6-32 screws
Buy the Buy XP Power PBL500 Power Supply Part Number PBL500PS48C Online
Order the XP Power PBL500 series power supply online today for dependable 450-500W performance in medical, industrial, and automation systems. Designed for continuous operation with options for forced air or convection cooling, this unit ensures safety, efficiency, and durability. Featuring multiple voltages, protections, and compliance with industry standards, it’s ideal for demanding environments. With fast shipping and easy online ordering, upgrade your power system today and ensure reliable performance for your critical applications.
Buy XP Power PBL500PS48C now and experience unmatched reliability and industrial-grade power efficiency for demanding applications.
Frequently Asked Questions
Where can I buy XP POWER PBL500PS48C?
You can click on the BUY or RFQ button to purchase PBL500PS48C from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part PBL500PS48C?
You can download the PBL500PS48C datasheet or visit the XP POWER website for support.
Who is the manufacturer of PBL500PS48C?
XP POWER
