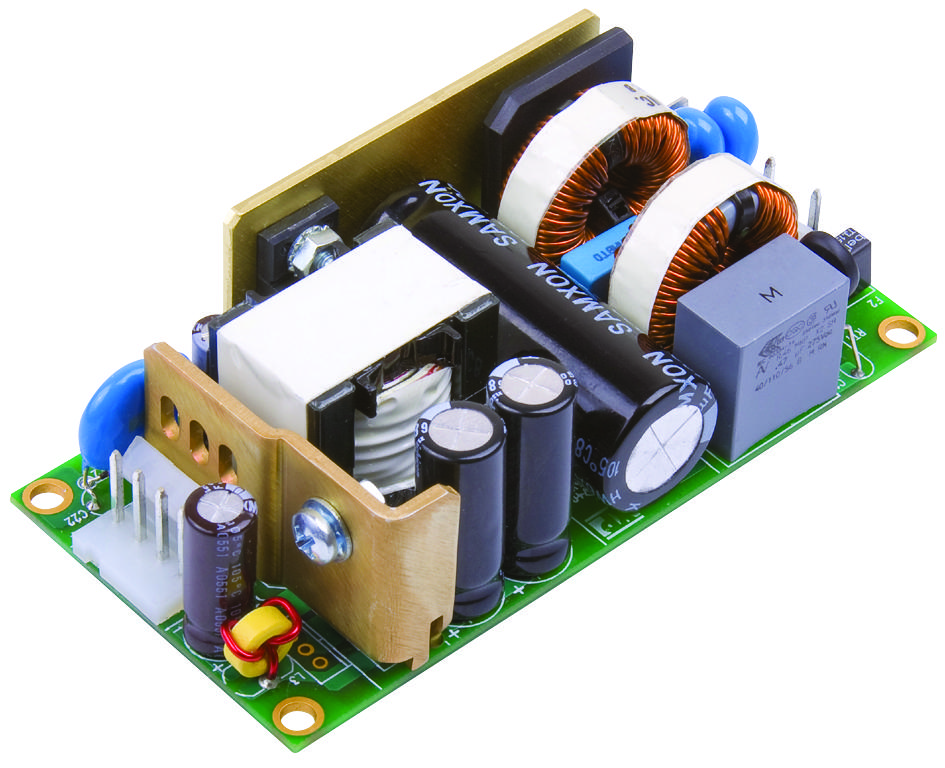

XP POWER ECS65US48 Power Supply
The ECS65 Series is a line of high-efficiency, single-output AC-DC power supplies designed to meet modern environmental standards. These 65W power supplies feature a compact 2 x 4-inch footprint and are only 1.05 inches high, making them suitable for various industrial, IT, and medical applications. They comply with Class I and Class II safety standards and are approved for medical safety with 2x MOPP and a Risk Management File. The power supplies operate at efficiencies around 88%, generate minimal waste heat, and deliver full power up to 50°C, with operation up to 70°C with derating. They offer adjustable output voltages from 12V to 48V DC (+/-10%), low earth leakage currents, and meet EN55022 Level B emission standards. These convection-cooled units are dual fused for IEC 60601-1 compliance, making them suitable for medical use.
XP POWER ECS65US48 Power Supply Specifications:
- Power: 65 W
- Input Voltage: 80-264 VAC derated below 90 VAC
- Output Voltage: 12 V to 48 V DC, adjustable by +10%
- Efficiency: Typical 88%
- Physical Dimensions: 2 x 4 inches (51.0 mm x 102.0 mm), height 1.05 inches (26.7 mm)
- Operating Temperature: Up to +70°C with derating
- Storage Temperature: -40°C to +85°C
- Leakage Current: 110 μA at 115 VAC or 210 μA at 230 VAC
- Emissions: EN55022 Level B
- Safety: IEC60601-1 compliant; dual-fused; medical safety with 2x MOPP
- Protection: Low earth leakage current, over/undervoltage, overcurrent, short circuit
- Cooling: Convection-cooled, minimal waste heat, operating up to 50°C fully powered
- Certifications: UL, TUV, CE, CSA, IEC60601-1 medical safety standards
Buy the ElectroPower ECS65 – Reliable Power Supply for Industrial Applications
Discover the ElectroPower ECS65 power supply, a compact 65W unit that combines high efficiency with robust safety standards. Perfect for industrial, IT, and medical applications, it features adjustable output voltages from 12V to 48V DC (+/-10%) and operates at efficiency levels around 88%. Its industry-standard footprint of 2 x 4 inches and height of just 1.05 inches make it ideal for space-constrained installations. Designed with low earth leakage current and certified for medical safety with dual fusing, it ensures reliable performance with minimal waste heat. Purchase online today for a dependable, precision-engineered power solution.
Get ElectroPower ECS65 today—built for precision and long-lasting durability in industrial and medical environments.
Frequently Asked Questions
Where can I buy XP POWER ECS65US48?
You can click on the BUY or RFQ button to purchase ECS65US48 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part ECS65US48?
You can download the ECS65US48 datasheet or visit the XP POWER website for support.
Who is the manufacturer of ECS65US48?
XP POWER
