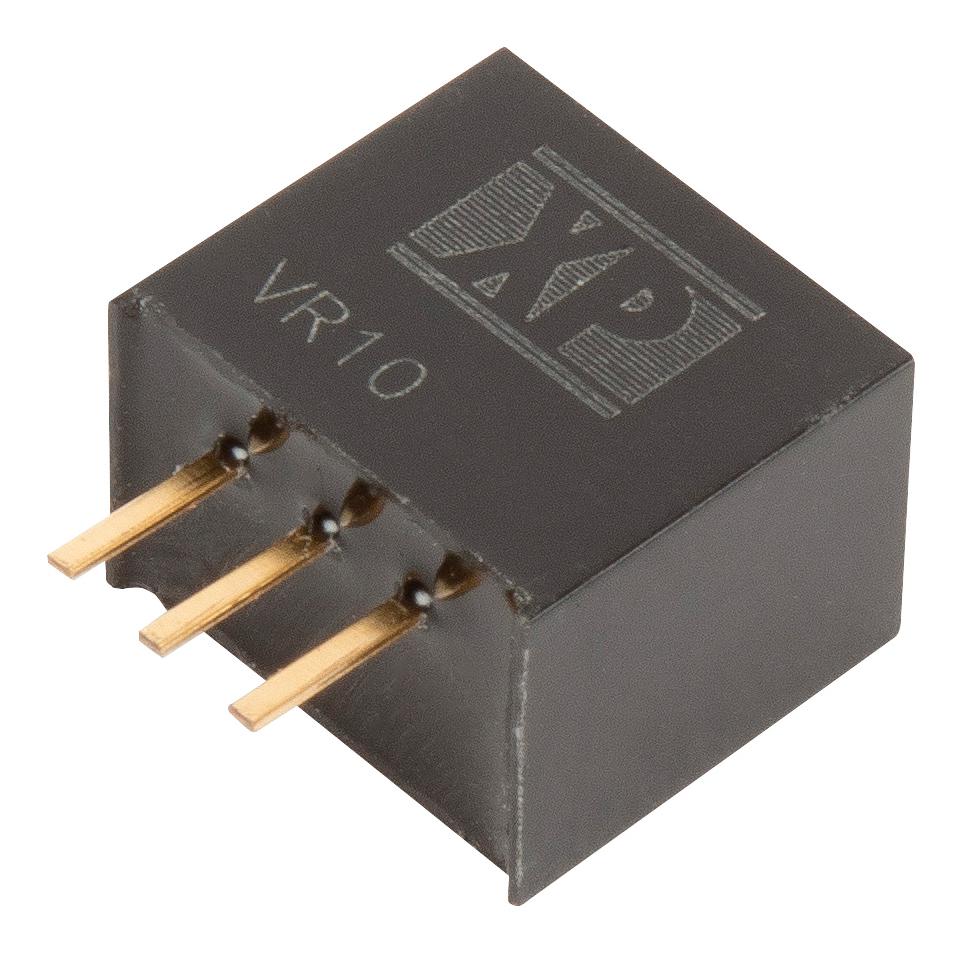

XP POWER VR10S12 Switching Regulator
The VR10S12 is a compact, high-efficiency non-isolated switching regulator capable of delivering 12V at 1A from input voltages ranging from 6V to 36V. Featuring a regulated single output with a typical efficiency of 95% and low standby current of 0.3mA, it is suitable for various industrial and electronic applications. The device operates within -40°C to +85°C temperature range, offers robust short circuit protection, and complies with Class B emissions standards. Its small size and reliable performance make it ideal for space-constrained power supply designs.
XP POWER VR10S12 Switching Regulator Specifications:
- Input Voltage Range: 6-36V
- Output Voltage: 12V
- Output Current: 1.0A
- Efficiency: Typical 95%
- Standby Input Current: 0.3mA
- Operating Temperature Range: -40°C to +85°C
- Dimensions: 0.457 x 0.409 x 0.315 inches (11.6 x 10.4 x 8.0mm)
- Case Material: Non-conductive black plastic UL94V-0
- Pin Diameter: 0.02+0.004 inches (0.7+0.1mm)
- Weight: Approx. 0.0041 lbs (1.99g)
- Switching Frequency: 520 kHz
- Input Surge Voltage: 45V for 100ms
- Maximum Capacitive Load: As per model specifications
- Isolation: None (Input to Output 0V)
- Short Circuit Protection: Auto-recovery
- Operating Temperature: -40°C to +85°C
- MTBF: Over 2 million hours
- Compliance: Class B Conducted & Radiated Emissions
Buy the XP Power Series VR10 Series DC-DC Converter: VR10S12
Purchase the XP Power Series VR10S12 switching regulator online today and benefit from its high efficiency, wide input range, and robust protections. This compact converter delivers 12V at 1A, ideal for industrial, electronics, and power supply applications. Its low standby current, excellent thermal performance, and compliance with emissions standards ensure dependable operation. With a small footprint of just over 11mm, this device simplifies integration into space-constrained designs. Enjoy fast online ordering and trusted delivery to keep your projects on track.
Order your XP Power Series VR10S12 high-efficiency switching regulator today and ensure reliable power delivery for your electronic projects.
Frequently Asked Questions
Where can I buy XP POWER VR10S12?
You can click on the BUY or RFQ button to purchase VR10S12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part VR10S12?
You can download the VR10S12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of VR10S12?
XP POWER
