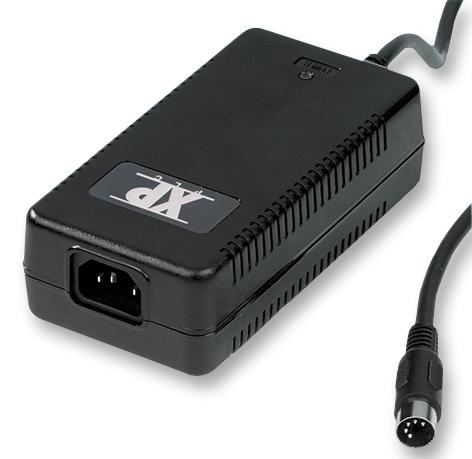

XP POWER PCM50UT04 Power Supply Module
The PCM Series power supplies are versatile units offering 50, 80, and 120 Watts with 4000 VAC insulation, low leakage current, and multiple output options including single, dual, and triple outputs. They are certified for worldwide medical approvals and feature both line and neutral fusing. With efficiency rates up to 80% and a robust isolation of 4000 VAC input to output, these units are designed for reliable performance in medical and industrial applications. They operate from 90 to 264 VAC, feature a maximum inrush current of 60 A at 230 VAC, and have a typical switching frequency of up to 120 kHz, ensuring stable power delivery across varying loads and environmental conditions.
XP POWER PCM50UT04 Power Supply Module Specifications:
- Input Voltage: 90-264 VAC
- Isolation: 4000 VAC input to output, 1500 VAC input to ground
- Efficiency: 80% typical for single output models, 75% for multi-output models
- Input Current: 1.35 A max for PCM50 at 230 VAC, 1.30 A for PCM80, 1.60 A for PCM120
- Inrush Current: 30 A at 115 VAC, 60 A at 230 VAC
- Switching Frequency: 64 kHz for PCM50, 55 kHz for PCM80, 120 kHz for PCM120
- Output Power: 50 W, 80 W, 120 W
- Operating Temperature: 0°C to +70°C, derating from 100% to 50% load at 50°C
- Hold Up Time: 10 ms min at low line
- Line Regulation: Max 21% for PCM50, Max 45% for PCM120
- Ripple & Noise: 2% pk-pk, 20 MHz bandwidth
- Overvoltage Protection: 112-132%
- Protections: Overcurrent with auto recovery, overvoltage, and temperature
- Safety Certifications: UL60601-1, CSA C22.2 601.1, CCC
- EMC Compliance: EN55022 level B, IEC61000-4-2/3/4/5/6/8/11
- Dimensions: 1.69 x 5.75 x 2.99 inches (43.0 x 146.0 x 76.0 mm)
- Weight: 0.88-1.21 lbs (400-550 g) approx.
Buy the Buy X PERT Power PCM Part Number PCM50UT04 Online
Experience reliable power with the X PERT Power PCM50UT04. Designed for industrial and medical use, it offers high efficiency, robust safety features, and versatile outputs. Easily order online to ensure your equipment operates at peak performance with durable, high-quality power solutions. Whether for new installations or replacements, this power supply guarantees stable voltage delivery, compliance with worldwide safety standards, and long-lasting durability. Purchase now for quick delivery and dependable performance in critical environments.
Get X PERT Power PCM50UT04 today—compact, reliable power supply with high efficiency and medical approvals, built for demanding industrial and healthcare applications.
Frequently Asked Questions
Where can I buy XP POWER PCM50UT04?
You can click on the BUY or RFQ button to purchase PCM50UT04 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part PCM50UT04?
You can download the PCM50UT04 datasheet or visit the XP POWER website for support.
Who is the manufacturer of PCM50UT04?
XP POWER
