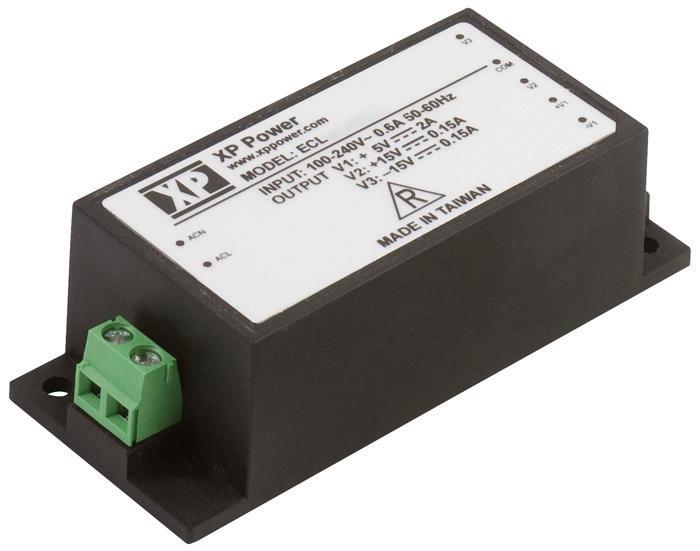

XP POWER ECL15UD02S Industrial Power Supply
The product is a compact, high-efficiency power supply designed for industrial applications. It features multiple output options, high peak load capability, and robust overload and short circuit protections. Suitable for chassis, PCB, encapsulated, or screw terminal mounting, it operates reliably over a wide temperature range and complies with EMC and safety standards. Its modular design supports open-frame configurations, making it ideal for industrial automation, control systems, and custom power solutions requiring stable, regulated output with high reliability and safety certifications.
XP POWER ECL15UD02S Industrial Power Supply Specifications:
- Input Voltage: 85-264 VAC, 120-370 VDC
- Frequency: 47-63 Hz
- Output Voltage: 12.0 VDC, 15.0 VDC, 24.0 VDC, 48.0 VDC, 3.3 VDC, 5.0 VDC, 9.0 VDC
- Output Power: 15W to 30W depending on model
- Load Regulation: <3% (10-100%), <1% for V1, <10% for V2 & V3
- Peak Load Capacity: 130%, <30 s, 10% duty cycle
- Efficiency: Up to 83-85%
- Isolation: 3000 VAC Input to Output
- Frequency Switching: 70 KHz typical
- Operating Temperature: -20°C to +70°C
- Storage Temperature: -40°C to +85°C
- Vibration: 2g, 10Hz to 500Hz for 10 mins/cycle
- Humidity: 95% RH, non-condensing
- Altitude: Up to 3000 m
- Certifications: EN55032, EN61000-3-2, IEC60950-1, UL 62368-1
Buy the Xppower ECL15 U– Reliable Power Supply for Industrial Applications
Order the Xppower ECL15 power supply now for your industrial automation, control systems, and manufacturing needs. Designed for high reliability, it offers multiple output options, peak load capacity, and comprehensive safety and EMC certifications. Its modular, open-frame design supports PCB, chassis, encapsulated, or screw terminal mounting, ensuring easy integration into your existing systems. Enjoy fast online ordering and prompt delivery of this robust, UL and EN compliant power solution that guarantees stable operation and long-term durability in demanding industrial environments.
Get Xppower ECL15 today—built for precision, durability, and versatile mounting options.
Frequently Asked Questions
Where can I buy XP POWER ECL15UD02S?
You can click on the BUY or RFQ button to purchase ECL15UD02S from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part ECL15UD02S?
You can download the ECL15UD02S datasheet or visit the XP POWER website for support.
Who is the manufacturer of ECL15UD02S?
XP POWER
