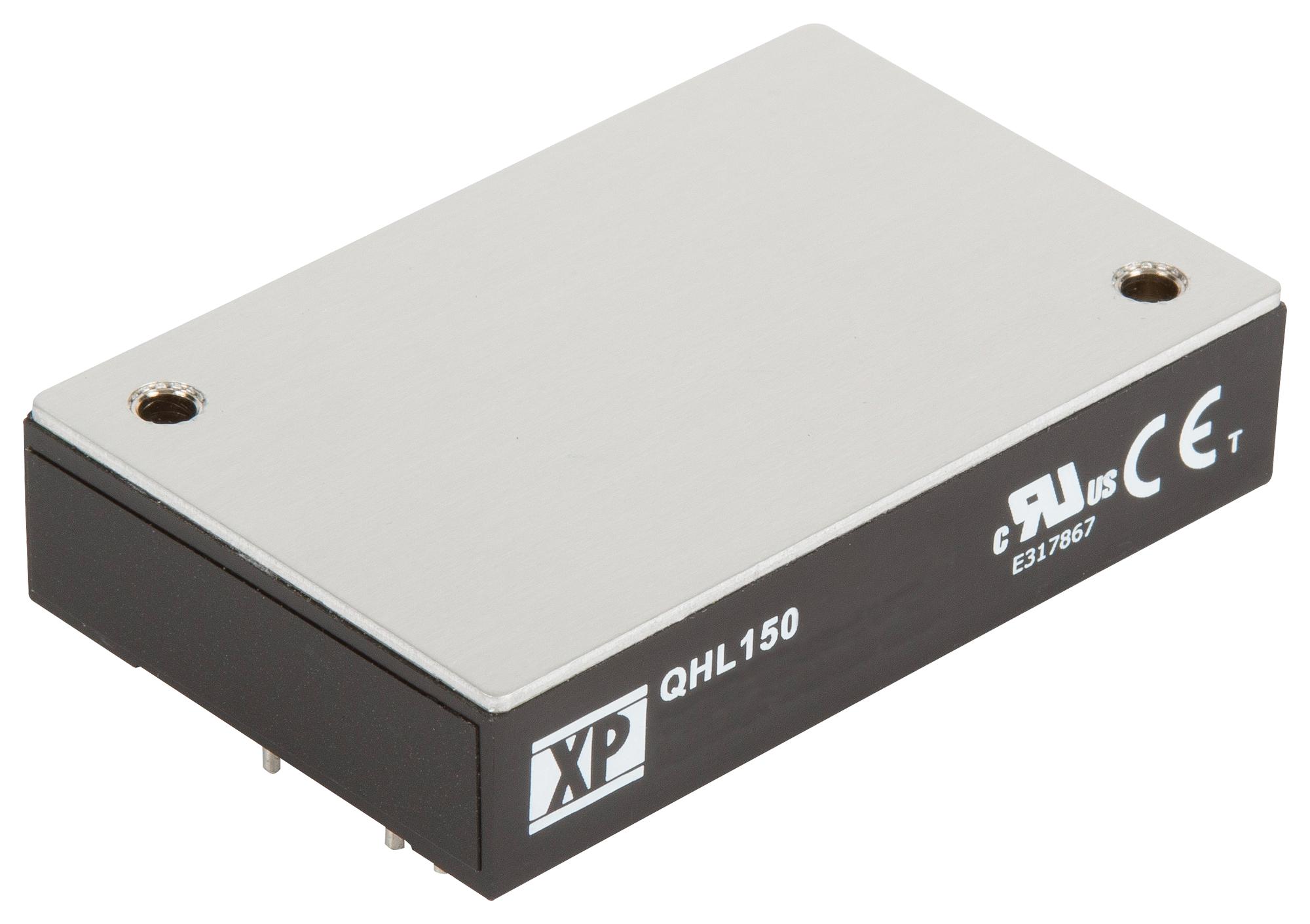

XP POWER QHL150300S12 DC-DC Converter
The QHL150 series provides a compact 150W DC to DC converter in a standard quarter brick package. These modules facilitate the construction of distributed power systems originating from AC front ends, PFC front ends, or battery sources. Features include a regulated single output, 3 kVAC isolation, output trim from -20% to +10%, remote on/off capability, overtemperature protection, and a wide operating temperature range from -40°C to +100°C. The module dimensions are 2.28 inches by 1.45 inches by 0.5 inches (57.9 mm x 36.8 mm x 12.7 mm).
XP POWER QHL150300S12 DC-DC Converter Specifications:
- Input Voltage Range: 180 - 425VDC
- Output Power: 150 Watts
- Output Voltage Options: 5V to 48V
- Isolation: 3kVAC input to output
- Output Trim: -20% to +10%
- Remote On/Off: Yes
- Operating Temperature: -40°C to +100°C
- Dimensions: 2.28 x 1.45 x 0.5 inches (57.9 x 36.8 x 12.7 mm)
- Efficiency: Up to 88%
- Protection: Overtemperature, Overload, Short Circuit
- Frequency: 330-390 kHz
- Weight: 0.143 lbs (65.0 g)
- Isolation Resistance: 100 MΩ
- Case Material: UL94V-0 plastic with aluminum base plate
- Input Ripple & Noise: Measured at 20MHz bandwidth, typical values vary by model
- Transient Response: <5% deviation
- Certifications: UL, cUL, CE, EN62368-1, EN55032, EN61000-4
Buy the XP Power Series QHL150 DC-DC Converter: QHL150300S12
Experience reliable power conversion with the QHL150 series from XP Power, offering 150W of regulated output in a compact quarter brick design. Ideal for distributed power architectures, this module features 3kVAC isolation, adjustable output trim from -20% to +10%, remote on/off functionality, and a wide temperature range from -40°C to +100°C. Its efficient operation at up to 88%, robust protection features, and certifications for safety make it perfect for industrial, telecommunications, and battery-powered systems. Purchase online today to ensure optimal power management for your application.
Get XP Power QHL150300S12 today—built for precision, efficiency, and long-lasting durability.
Frequently Asked Questions
Where can I buy XP POWER QHL150300S12?
You can click on the BUY or RFQ button to purchase QHL150300S12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part QHL150300S12?
You can download the QHL150300S12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of QHL150300S12?
XP POWER
