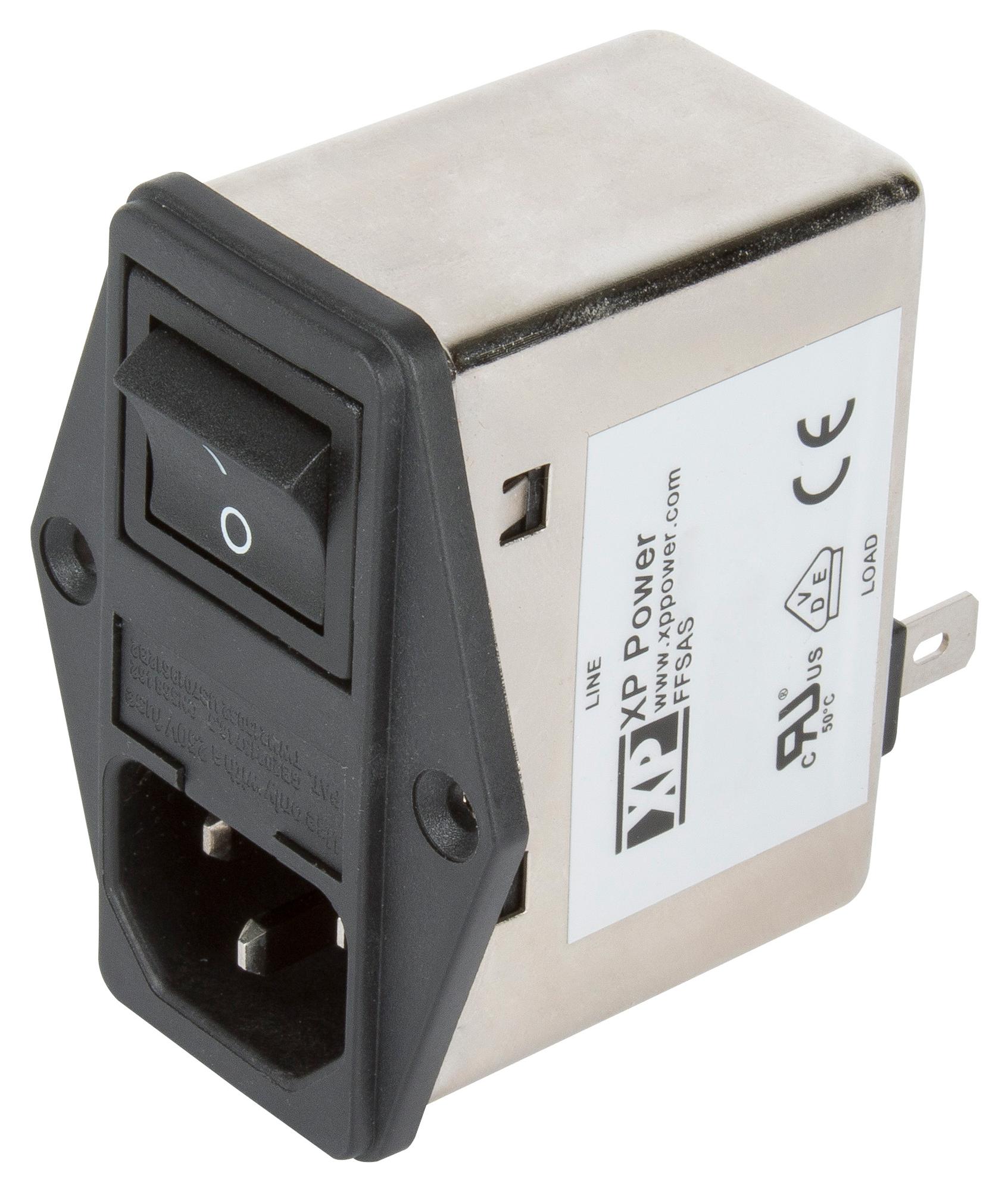

XP POWER FFSAS02BFR IEC Power Inlet
This compact, shielded metal IEC 320 C14 filtered inlet is designed for information technology equipment, featuring a front-accessible double pole switch when the mains connector is disconnected, a single fuse rated from 1A to 10A, and integrated EMI filtering. It includes a bleed resistor for safe capacitor discharge and is suitable for class I appliances. Operating over a temperature range of -40°C to +110°C with full power up to +50°C, it meets EN60939-2 and ANSI/UL1283 standards. Terminals are 6.3 x 0.8mm Faston style, and it has a screw mount for secure installation.
XP POWER FFSAS02BFR IEC Power Inlet Specifications:
- Rated Voltage: 250 VAC
- Input Frequency: DC 400 Hz
- Rated Current: 1 to 10 A (varies by model)
- Earth Leakage Current: 0.25 to 0.48 mA
- Temperature Range: -40°C to +110°C
- Full Power Operating Temp: up to +50°C
- Mounting: Screw mount
- Terminals: 6.3 x 0.8mm Faston style
- Safety Standards: EN60939-2, ANSI/UL1283
- Protection Class: Class I appliances
- Flammability Rating: UL V-0
- Dielectric Strength: 1500 VAC
- Weight: approximately 96-104 grams depending on model
- Dimensions: Fits standard panel cutout with suggested mounting hole spacing
- Includes: Bleed resistor for capacitor discharge when power is disconnected
Buy the XP Power Series IEC Power Entry Inlet: FFSAS02BFR
Order the XP Power IEC Power Inlet with integrated filter, fuse, and switch online today. Designed for reliable operation in IT and industrial setups, it features a shielded metal body, Faston terminals for easy wiring, and a wide temperature range from -40°C to +110°C. Perfect for ensuring electromagnetic interference suppression and safety compliance, this unit is ideal for class I appliances. Secure your equipment’s power connection with this durable, easy-to-mount filtered inlet—available now for prompt delivery and seamless integration.
Buy XP Power FFSAS02BFR now and experience reliable EMI filtering, safety compliance, and durable shielded metal construction for industrial and IT environments.
