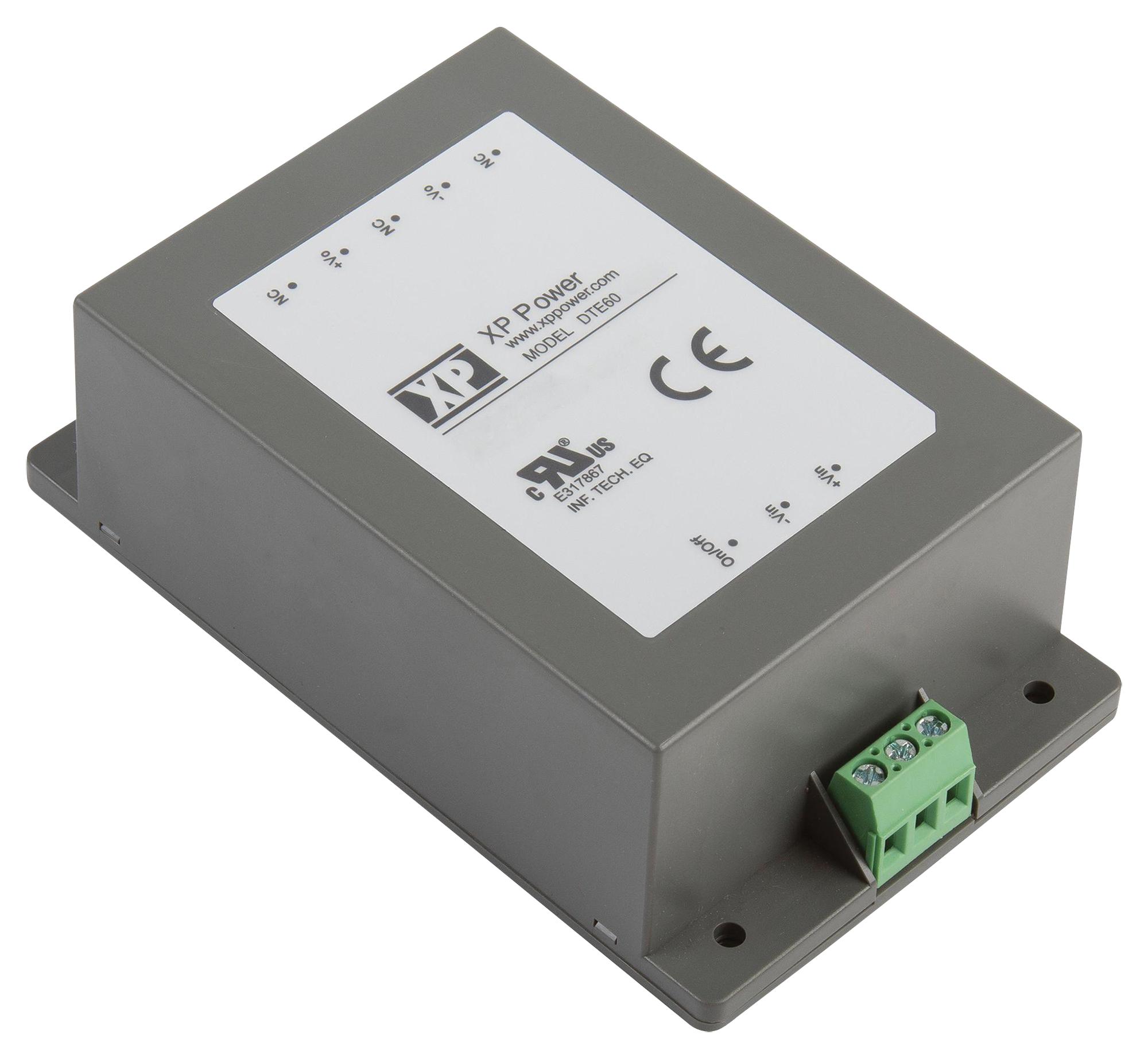

XP POWER DTE6048S12 DC-DC Converter
The DTE60 Series DC-DC converter by XP Power delivers 60 Watts of reliable power, featuring fully encapsulated chassis mount design and optional DIN rail compatibility. It operates efficiently up to 92%, supports a wide input voltage range of 18 to 75 V, and has a continuous operating temperature range from -40°C to +95°C. With remote On/Off control, high safety standards, and low ripple noise, this converter is ideal for industrial and automation applications requiring compact, robust power solutions. Its versatile design includes various output voltages and a compact form factor for easy installation and integration.
XP POWER DTE6048S12 DC-DC Converter Specifications:
- Input Voltage Range: 18-75 VDC, Typical 24V or 48V nominal
- Output Voltage: 12.0V
- Output Current: 5A
- Efficiency: Up to 92%
- Dimensions: 4.03 x 2.67 x 1.5 inches (102.4 x 67.8 x 38 mm)
- Operating Temperature: -40°C to +95°C
- Isolation Voltage: 2500 VDC
- Ripple & Noise: 150 mV pk-pk
- Short Circuit Protection: Auto recovery
- Overload & Overvoltage Protection: Trip & restart mode
- Cooling Method: Natural convection
- Weight: Approximately 0.6 lbs (300g)
- Certifications: UL60950-1, EN55022 Level A
- Switching Frequency: 210 kHz
Buy the XP Power DTE6048S12 – Reliable 12V DC-DC Converter for Industrial Applications
Purchase the XP Power DTE6048S12 DC-DC converter online today and ensure your industrial systems operate with a dependable power source. Its robust design, high efficiency up to 92%, and comprehensive safety features make it an ideal choice for harsh environments. Easy to install with compact dimensions, this converter supports wide input voltage ranges from 18 to 75 V, delivering stable 12V output at 5A. Take advantage of quick online ordering and enhance your operational reliability with this versatile power module.
Buy XP Power DTE6048S12 now and experience unmatched reliability and performance in compact industrial power solutions with high efficiency and safety features.
Frequently Asked Questions
Where can I buy XP POWER DTE6048S12?
You can click on the BUY or RFQ button to purchase DTE6048S12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part DTE6048S12?
You can download the DTE6048S12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of DTE6048S12?
XP POWER
