XP POWER QHL150300S15 DC-DC Module
The QHL150 series provides a compact 150W isolated DC-DC power module in an industry-standard quarter brick package. It features a regulated single output with 3KV AC isolation, overtemperature protection, and remote on/off control. The output voltage can be trimmed from -20% to +10%. Operating temperature range is from -40°C to +100°C. The dimensions are 2.28 inches by 1.45 inches by 0.5 inches (57.9mm x 36.8mm x 12.7mm). This series is suitable for building distributed power architectures, including AC front ends, PFC front ends, and battery systems.
XP POWER QHL150300S15 DC-DC Module Specifications:
- Input Voltage Range: 180 - 425VDC
- Output Power: 150 Watts
- Output Voltage: Models range (e.g., 5V, 12V, 15V, 24V, 48V)
- Output Trim: -20% to +10%
- Isolation: 3kVAC input to output, 2,500VAC input to case, 500VAC output to case
- Operating Temperature: -40°C to +100°C
- Dimensions: 2.28 x 1.45 x 0.5 inches (57.9 x 36.8 x 12.7mm)
- Efficiency: Up to 88%
- Switching Frequency: 330 - 390 kHz
- Protection: Overtemperature, Overvoltage, Short Circuit
- Remote On/Off: Yes, with external control
- Weight: Approximately 65g

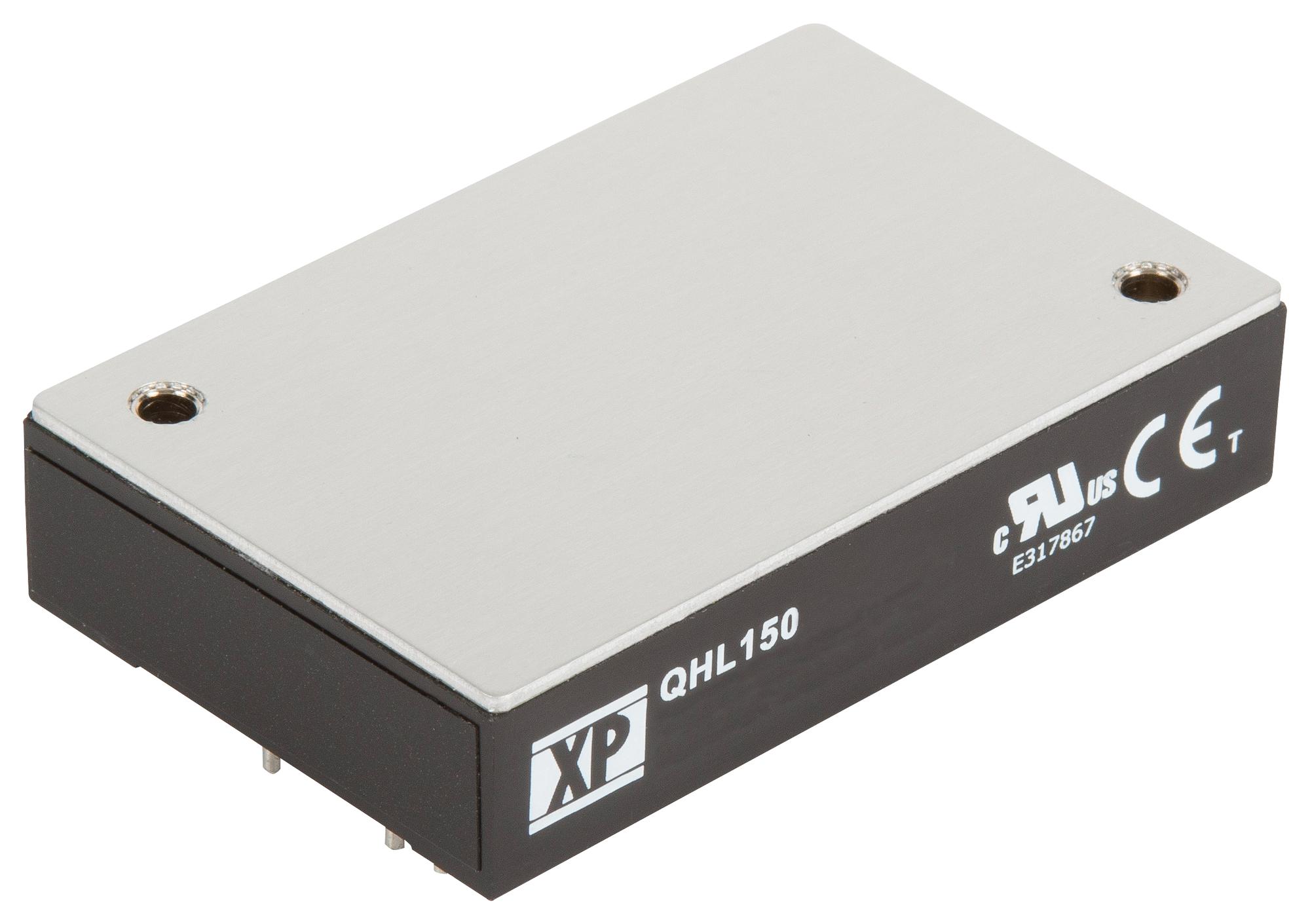

Buy the Buy XP Power QHL150300S15 Part Number 150W DC-DC Converter Online
Purchase the XP Power QHL150 series DC-DC converter online today to enjoy reliable power conversion with 150W capacity, excellent isolation, and configurable output trim. Its compact quarter brick design makes it ideal for distributing power across industrial, automation, and control systems. With wide operating temperature, overtemperature protection, and remote on/off control, this module offers versatility and ease of integration. Secure your power architecture now with fast shipping and dedicated customer support.
Buy XP Power QHL150300S15 now and experience unmatched reliability and high efficiency for your industrial power needs.
Frequently Asked Questions
Where can I buy XP POWER QHL150300S15?
You can click on the BUY or RFQ button to purchase QHL150300S15 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part QHL150300S15?
You can download the QHL150300S15 datasheet or visit the XP POWER website for support.
Who is the manufacturer of QHL150300S15?
XP POWER
