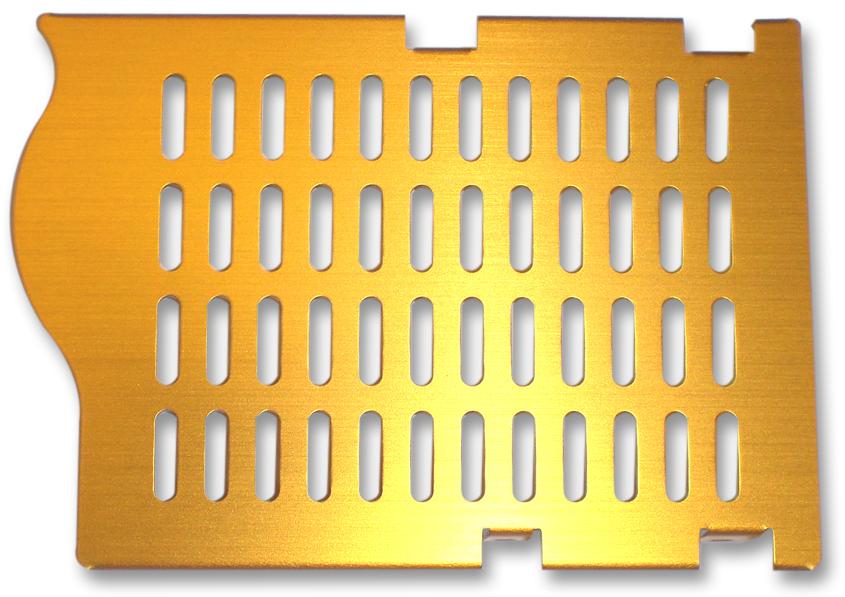

XP POWER SDS120COVER Industrial Power Supply
The product is a high-efficiency, convection-cooled power supply series designed for industrial applications. It features open frame, U-channel, and covered versions, with power ratings from 120W to 180W and efficiencies up to 90%. The series supports a wide input voltage range of 90-264 VAC and offers various protections including overvoltage, overload, and short circuit. It operates in temperature ranges from -40°C to +70°C, with optional low-temperature versions, and has EMC compliance with EN55022 level B and EN61000 series standards. It provides reliable power with a 3-year warranty, suitable for robust industrial environments.
XP POWER SDS120COVER Industrial Power Supply Specifications:
- Power Ratings: 120W, 150W, 180W
- Input Voltage Range: 90-264 VAC, 120-370 VDC
- Input Frequency: 47-63 Hz
- Output Voltage: +5% trim, with initial set accuracy ±1%
- Output Power: 120W, 150W, 180W
- Efficiency: up to 90%
- Protections: Overvoltage, overload, short circuit, auto recovery
- Isolation: 3000 VAC input to output, 1500 VAC input to ground, 500 VDC output to ground
- Operating Temperature: -40°C to +70°C (optionally -40°C to +85°C)
- Cooling: Convection cooled
- Humidity: 5-95% RH non-condensing
- Dimensions: 3” x 5” footprint, open frame, U-channel, and covered versions available
- Certification: EN55022 level B, EN61000 series, UL60950-1
- MTBF: 130,000 hours at 25°C
- Switching Frequency: PFC 34-100 kHz, PWM 55-67 kHz
Buy the Reliable SDS120 – Reliable Power Supply for Industrial Applications
Explore and purchase the SDS120 series online to ensure a reliable, high-efficiency power solution tailored for industrial applications. With a robust construct, wide input voltage support, and comprehensive protections, this power supply guarantees stability and durability for manufacturing, automation, and control systems. Its convection cooling design makes it suitable for diverse environments. Order now to benefit from quick delivery, excellent customer support, and competitive pricing. Power your industrial projects confidently with SDS120—trusted quality for demanding applications.
Get SDS120 series power supply today—built for precision and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy XP POWER SDS120COVER?
You can click on the BUY or RFQ button to purchase SDS120COVER from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part SDS120COVER?
You can download the SDS120COVER datasheet or visit the XP POWER website for support.
Who is the manufacturer of SDS120COVER?
XP POWER
