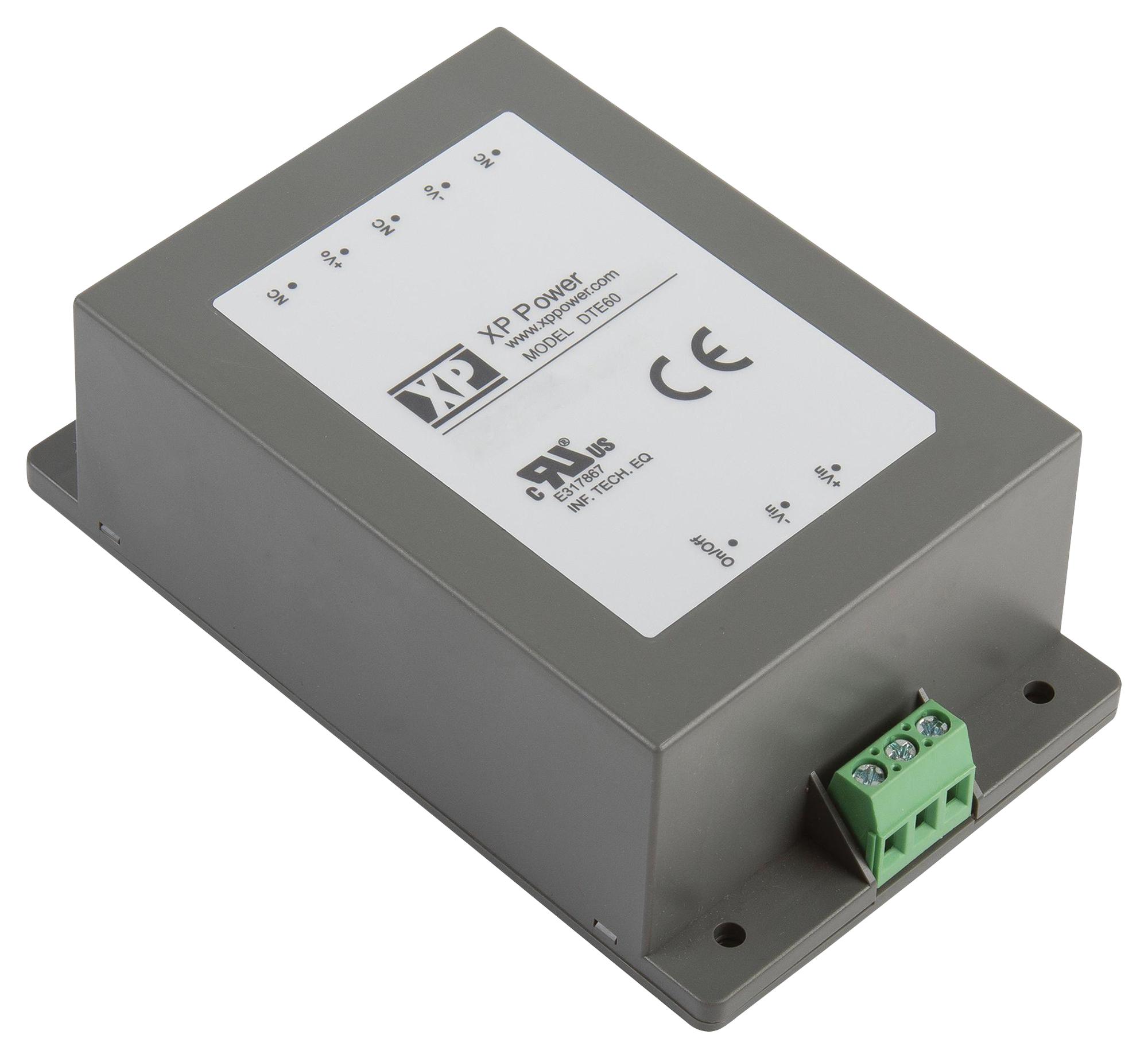

XP POWER DTE6024S12 DC-DC Converter
The DC-DC converter provides 60 Watts of power with a fully encapsulated chassis for reliable operation. It features a wide 4:1 input range from 18V to 75V, high efficiency up to 92%, and operates effectively over a temperature range of -40°C to +95°C. The converter supports remote On/Off control, has a compact size, and complies with industry standards including EN55022 Level A. Optional DIN rail mounting enhances installation flexibility, making it suitable for industrial automation and power supply applications.
XP POWER DTE6024S12 DC-DC Converter Specifications:
- Input Voltage Range: 18V to 75V DC
- Output Power: 60 Watts
- Output Voltage Options: 5V, 12V, 24V, 48V (model dependent)
- Input Current: varies by model, typical 100 mA to 125 A at maximum
- Efficiency: Up to 92%
- Operating Temperature Range: -40°C to +95°C
- Dimensions: 4.03 x 3.54 x 1.5 inches (102.4 x 90 x 38 mm)
- Enclosure: Fully encapsulated chassis, optional DIN rail mounting
- Remote On/Off: Yes
- Isolation Voltage: 2500 VDC
- Ripple & Noise: 150-200 mV pk-pk
- Protection: Short circuit, overload, overvoltage, and thermal protections
- Certifications: UL60950-1, EN55022 Level A
Buy the Buy XP Power DC-DC Converter Part Number DTE6024S12 Online
Purchase the XP Power DC-DC Converter DTE6024S12 online today for your industrial power needs. Featuring a 60W power output, wide input voltage range, and efficiency up to 92%, this fully encapsulated converter ensures reliable operation across -40°C to +95°C. Its compact size and optional DIN rail mounting make it versatile for various applications. With remote On/Off control and industry-standard certifications, it guarantees safe, efficient, and easy installation for automation systems and power supplies. Get yours now for dependable performance.
Buy XP Power DTE6024S12 now and experience unmatched reliability and high efficiency for industrial power conversion applications.
Frequently Asked Questions
Where can I buy XP POWER DTE6024S12?
You can click on the BUY or RFQ button to purchase DTE6024S12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part DTE6024S12?
You can download the DTE6024S12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of DTE6024S12?
XP POWER
