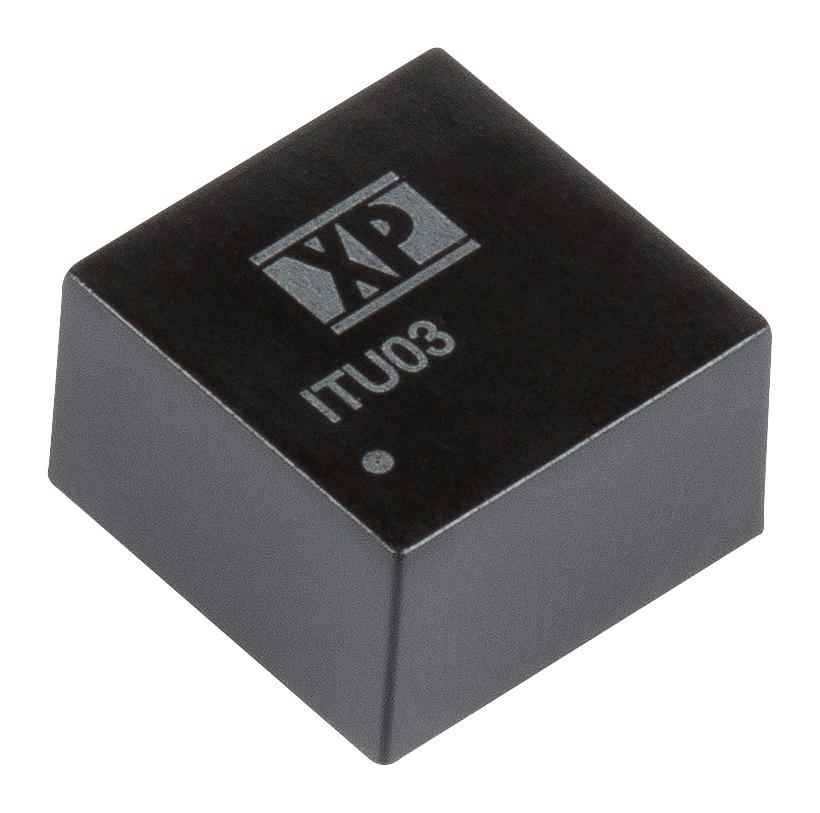

XP POWER ITU0348S15 Industrial DC-DC Converter
The ITU series is a compact 3W DC-DC converter designed for industrial applications, offering wide input voltage ranges from 4.5V to 75V and regulated outputs from 3.3V to 30V. It features a robust DIP8 package, 1.6kVDC input/output isolation, efficiency up to 84%, and full power operation up to +70°C. With remote on/off, short circuit protection, a 3-year warranty, and compliance with EN55032, it ensures reliable performance in demanding environments. Ideal for industrial automation, medical, and instrumentation use, this converter provides a high-quality, cost-effective power solution.
XP POWER ITU0348S15 Industrial DC-DC Converter Specifications:
- Input Voltage Range: 4.5 to 75VDC with wide 4:1 input range
- Output Voltage: 3.3V to 30VDC, regulated within ±1%
- Output Power: 3 Watts
- Efficiency: up to 84%
- Isolation: 1.6kVDC input/output isolation
- Temperature Range: -40°C to +80°C, full power up to +70°C
- Dimensions: 0.55 x 0.55 x 0.32 inches (14.0 x 14.0 x 8.1mm)
- Input Surge Voltage: specified per model, typical 33V, 5V, 12V, 15V, 24V, 36V, 48V, 75V
- Remote On/Off Control: Yes, with open collector or 2-4mA drive
- Protection Features: Short circuit, thermal protection
- Compliance: EN55032, safety standards CE and UKCA
- MTBF: over 820,000 hours (MIL-HDBK-217F, +25°C)
Buy the XP Power ITU0348S3 – Reliable Industrial DC-DC Converter for Automation Applications
Enhance your industrial systems with the XP Power ITU series DC-DC converter. This 3W module offers a wide input voltage range, regulated outputs from 3.3V to 30V, and efficiency up to 84%. Designed for demanding environments, it features 1.6kVDC isolation, remote on/off, short circuit protection, and operates reliably from -40°C to +80°C. Compact and cost-effective, this converter suits automation, medical, and instrumentation applications. Purchase online today and secure a high-quality power solution with a 3-year warranty for your critical projects.
Order your XP Power series ITU0348S3 industrial DC-DC converter today and ensure dependable power delivery for your automation and instrumentation projects.
Frequently Asked Questions
Where can I buy XP POWER ITU0348S15?
You can click on the BUY or RFQ button to purchase ITU0348S15 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part ITU0348S15?
You can download the ITU0348S15 datasheet or visit the XP POWER website for support.
Who is the manufacturer of ITU0348S15?
XP POWER
