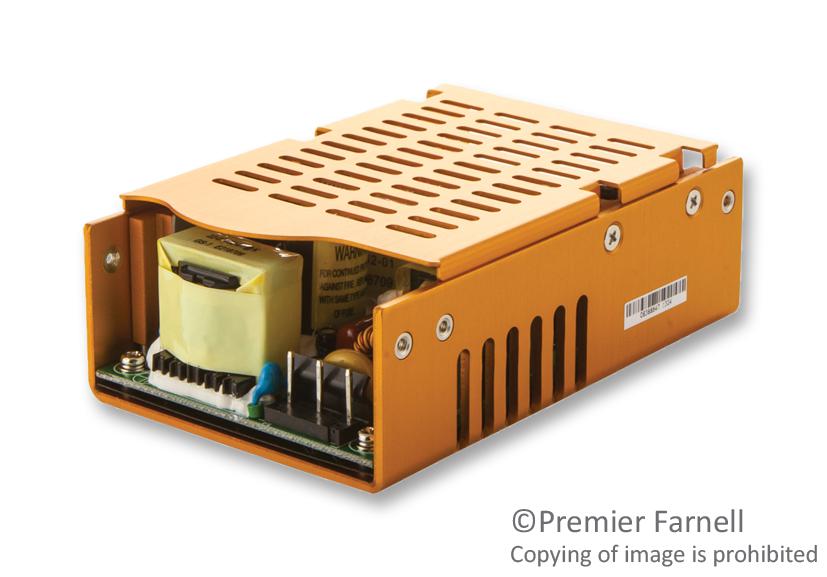

XP POWER SDS120PS24BC Industrial Power Supply
The SDS120PS24B is a high-efficiency, convection-cooled power supply designed for industrial automation and control applications. It offers an input voltage range of 90-264 VAC and includes various protections such as overload, short circuit, and overvoltage safeguards. With an efficiency of up to 80%, it features units with open frame, U-channel, and covered configurations, and incorporates a Power Fail Detect signal. Its compact 3” x 5” footprint makes it suitable for space-constrained environments, providing reliable performance across a broad operating temperature range.
XP POWER SDS120PS24BC Industrial Power Supply Specifications:
- Input Voltage: 90-264 VAC, 47-63 Hz
- Output Voltage: 24 V (±1%)
- Power: 150 W
- Efficiency: Up to 88%
- Protection: Overvoltage, overload, short circuit
- Isolation: 3000 VAC input to output
- Output Current: 6.25 A
- Dimensions: 3” x 5” footprint
- Operating Temperature: 0 °C to +70 °C, derating at higher temperatures
- Cooling: Convection-cooled
- Humdity: 5-95% RH, non-condensing
- Certifications: UL60950-1, CSA60950-1, EN55022, FCC Class B
- Ripple & Noise: 1% pk-pk typical at full load
- Mounting: Through holes compatible with standard M3 screws
- Weight: Approximately 1.27 lbs (580 g)
Buy the Power Supply Series SDS120PS24B: 24 V 150W Industrial Power Supply
Purchase the SDS120PS24B power supply online today and benefit from a reliable, efficient power source ideal for industrial automation and control. Its compact size, convection-cooled design, and comprehensive protections ensure seamless integration into your systems. With high efficiency up to 88%, it reduces energy consumption and heat dissipation. Easy to install with standard mounting options, this power supply is perfect for demanding environments. Order now to enhance your control systems with a trusted, high-performance power solution available with quick delivery and excellent support.
Buy SDS120PS24B now and experience unmatched reliability and performance for your industrial automation projects.
Frequently Asked Questions
Where can I buy XP POWER SDS120PS24BC?
You can click on the BUY or RFQ button to purchase SDS120PS24BC from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part SDS120PS24BC?
You can download the SDS120PS24BC datasheet or visit the XP POWER website for support.
Who is the manufacturer of SDS120PS24BC?
XP POWER
