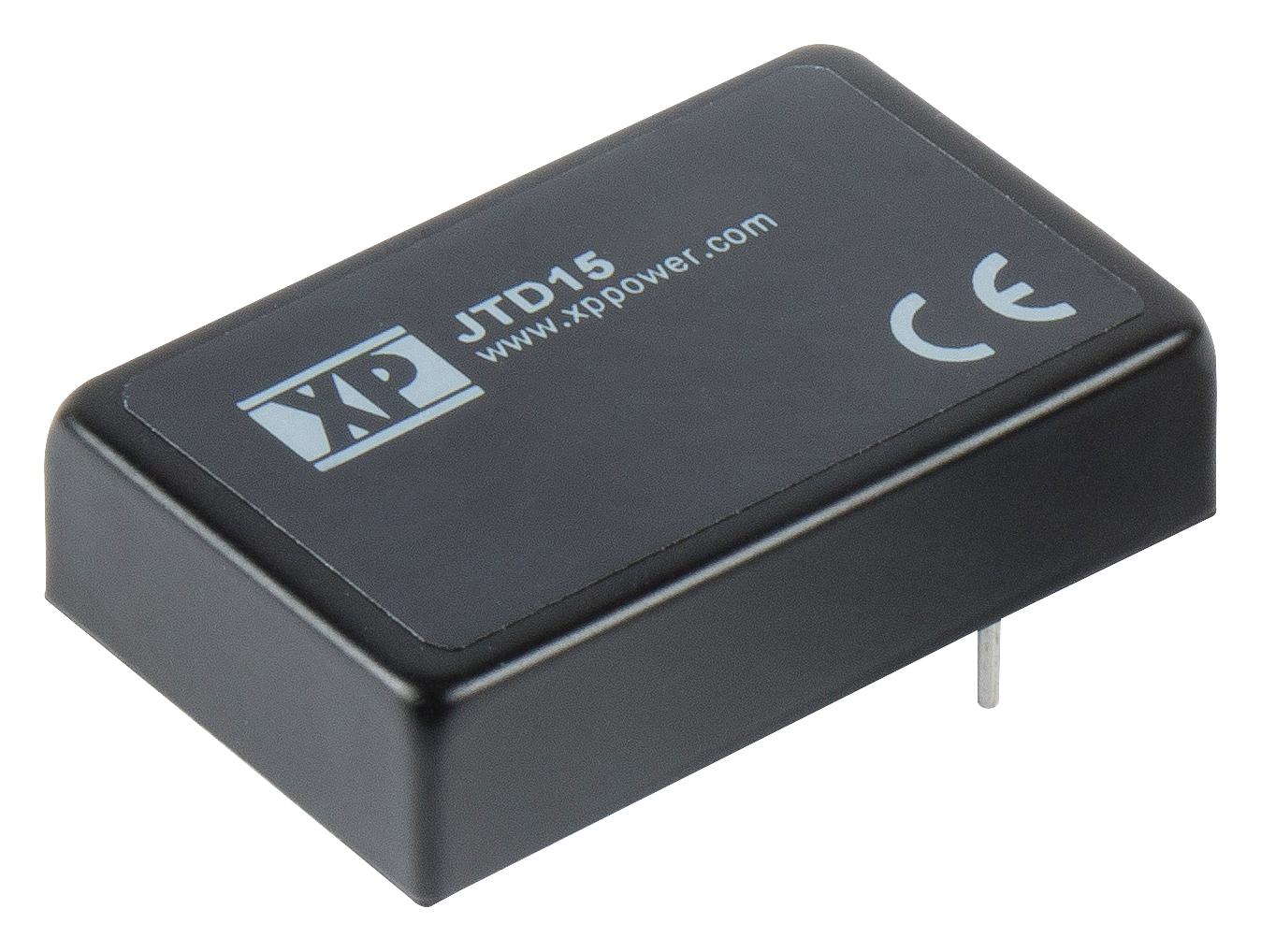

XP POWER JTD1524S12 DC-DC Converter
The JTD15 series of 15W DC-DC converters features a compact metal enclosure measuring 1.6 inches by 1 inch by 0.41 inches (40.6mm x 25.4mm x 10.4mm). Designed to complement the JTD20 series, these converters offer an ultra-wide 4:1 input voltage range of either 9V to 36V DC or 18V to 75V DC. They are available with single or dual outputs, support operation from -40°C to 100°C, and deliver full load power at an ambient temperature of 80°C. The units provide 3000VDC isolation, ±10% output trim, and feature remote On/Off control. Suitable for power management and DC conversion applications.
XP POWER JTD1524S12 DC-DC Converter Specifications:
- Power: 15 Watts
- Input Voltage Range: 9V to 36V DC or 18V to 75V DC (ultra-wide 4:1 ratio)
- Output Power: 15W (single or dual output options available)
- Output Voltage: Adjustable with 10% trim, typical ranges include 3.3V, 5V, 12V, 15V, 33V, among others
- Output Current: up to 3A depending on model
- Dimensions: 1.6 x 1.0 x 0.41 inches (40.6 x 25.4 x 10.4 mm)
- Isolation Voltage: 3000VDC
- Operating Temperature Range: -40°C to +100°C
- Efficiency: up to 89%
- Ripple & Noise: 75/60 mV pk-pk
- Remote On/Off Function: Yes, controlled by logic signal
- Output Trim: ±10%
- Full load operation at 80°C ambient
- Protection: Short circuit, overload, and full regulation
- Input Surge Voltage: varied per model specifications
- Certifications: UL/cUL 60950-1, 62368-1
- Case Material: Copper with UL94V-0 plastic base
- Weight: approximately 19g
- Soldering Profile: Max 260°C for 10s
Buy the XP Power JTD1524S12 – Reliable DC-DC Converter for Industrial Applications
Order the XP Power JTD1524S12 DC-DC converter online today and enhance your power conversion solutions. This compact, high-efficiency module offers a wide input voltage range, 3000VDC isolation, and remote On/Off control. Perfect for industrial applications, it delivers full load power at -40°C to 100°C, ensuring reliability. Its built-in protections include short circuit and overload safeguards, making it a versatile choice for power management systems. Buy now to improve your equipment's performance with this trusted power conversion component.
Buy XP Power JTD1524S12 now and experience unmatched reliability and performance for your industrial power management needs.
Frequently Asked Questions
Where can I buy XP POWER JTD1524S12?
You can click on the BUY or RFQ button to purchase JTD1524S12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part JTD1524S12?
You can download the JTD1524S12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of JTD1524S12?
XP POWER
